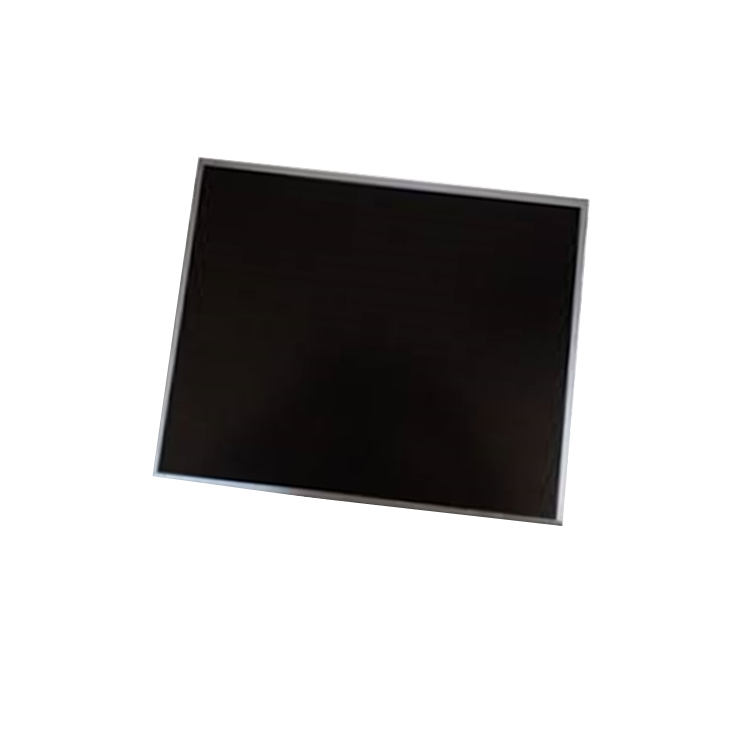

A035QN02 VG 3.5 inch AUO TFT-LCD

$20.00

≥1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Transportation:: Ocean, Land, Air, Express

Port:: HK, Shenzhen

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	TAIWAN
Payment Type:	T/T,Paypal
Incoterm:	FOB,EXW
Certificate:	CE,ROHS,ISO9001
Transportation:	Ocean,Land,Air,Express
Port:	HK,Shenzhen

Product Description

This AUO TFT-LCD is a 3.5 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen. A035QN02 VG supports display 320(RGB)×240 (QVGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 70.08(W)×52.56(H) mm, outline size of 76.9(W)×63.9(H)×3.12(D) mm, viewing area size of 73.05(W)×55.55(H) mm, net weight of 31.0g (Typ.). As a TN, Normally White, Transmissive LCM product, A035QN02 VG can provides 430 cd/m² display brightness 300:1 transimissive contrast ratio, 60/60/50/55 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 10/15 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors, also with performance of color gamut 60% (NTSC). This product adopted 6S1P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 10K hours, external backlight driver is additionally needed. A035QN02 VG utilizes Parallel RGB (1 ch, 6-bit) + SPI as it's signal inputting systerm, which connected by 67 pins FPC with power supply voltage of 3.3/3.3V (Typ.)(VCI/VDDIO). It's typical vertical frame rate (Fv) is 60Hz.

We are able to offer AD board for this display to support VGA video input.

Model	A035QN02 VG
Brand	AUO
Diagonal Size	3.5 inch
Pixel Format	320(RGB)×240 [QVGA] 115PPI
Active Area	70.08(H)×52.56(V) mm
Bezel Area	73.05(H)×55.55(V) mm
Luminance	430 cd/m² (Typ.)
View Direction	6 o'clock
Viewing Angle	60/60/50/55 (Typ.)(CR≥10)
Support Color	262K 60% NTSC
Weight	31.0g (Typ.)
Frame Rate	60Hz
Type	a-Si TFT-LCD , LCM
Configuration	RGB Vertical Stripe
Outline Dim.	76.9(H)×63.9(V) ×3.12(D) mm
Contrast Ratio	300:1 (Typ.) (TM)
Response Time	10/15 (Typ.)(Tr/Td)
Operating Mode	TN, Normally White, Transmissive
Light Source	WLED [6S1P] , 10K hours , W/O Driver
Touch Panel	Without
Interface Type	Parallel RGB (1 ch, 6-bit) + SPI 67 pins FPC
Power Supply	3.3/3.3V (Typ.)(VCI/VDDIO)
Environment	Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -40 ~ 80 °C
