G156HTN01.0 AUO 15.6 inch TFT-LCD
  • G156HTN01.0 AUO 15.6 inch TFT-LCD
G156HTN01.0 AUO 15.6 inch TFT-LCD

G156HTN01.0 AUO 15.6 inch TFT-LCD

Payment Type:
T/T, Paypal, Western Union
Incoterm:
FOB, EXW
Min. Order:
1 Piece/Pieces
Min. Order:
1 Piece/Pieces
Delivery Time:
3 Days
Transportation:
Ocean, Land, Air
Port:
HK, Shenzhen
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Place of Origin: TAIWAN
Payment Type: T/T,Paypal,Western Union
Incoterm: FOB,EXW
Certificate: CE,ROHS,ISO9001
Transportation: Ocean,Land,Air
Port: HK,Shenzhen
Product Description
Product Description


G156HTN01.0 is a 15.6" diagonal a-Si TFT-LCD display panel product from AU Optronics Corp. (hereafter called AUO), with an integral WLED backlight system, With LED Driver , without touch screen. It features an operating temperature range of -10 ~ 60°C , a storage temperature range of -20 ~ 60°C.This AUO TFT-LCD is a 15.6 inch with Consumer Lcd Display, it have LCD Controller and Tft Color Screen. G156HTN01.0 supports display 1920(RGB)×1080 (FHD) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 344.16(W)×193.59(H) mm, outline size of 359.5(W)×224.3(H)×3.55(D) mm, with surface treament of Antiglare (Haze 25%), net weight of 400g (Max.). As a TN, Normally White, Transmissive LCM product, G156HTN01.0 can provides 300 cd/m² display brightness 700:1 transimissive contrast ratio, 80/80/70/70 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 6/3 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors, also with performance of color gamut 60% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 15K hours, With LED Driver. G156HTN01.0 utilizes eDP (2 Lanes) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.


We are able to offer AD board for this display to support VGA video input.


Model

G156HTN01.0

Brand

AUO

Diagonal Size

15.6 inch

Pixel Format

1920(RGB)×1080  [FHD]  141PPI

Active Area

344.16(H)×193.59(V) mm

Luminance

300 cd/m² (Typ.)

View Direction

6 o'clock

Viewing Angle

80/80/70/70 (Typ.)(CR≥10)

Support Color

262K   60% NTSC

Weight

400g (Max.)

Frame Rate

60Hz

Type

a-Si TFT-LCD , LCM

Configuration

RGB Vertical Stripe

Outline Dim.

359.5(H)×224.3(V) ×3.55(D) mm

Treatment

Antiglare (Haze 25%)

Contrast Ratio

700:1 (Typ.) (TM)

Response Time

6/3 (Typ.)(Tr/Td)

Operating Mode

TN, Normally White, Transmissive

Light Source

WLED , 15K hours , With LED Driver

Touch Panel

Without

Interface Type

eDP (2 Lanes) 30 pins Connector

Power Supply

3.3V (Typ.)

Environment

Operating Temperature: -10 ~ 60 °C ; Storage Temperature: -20 ~ 60 °C

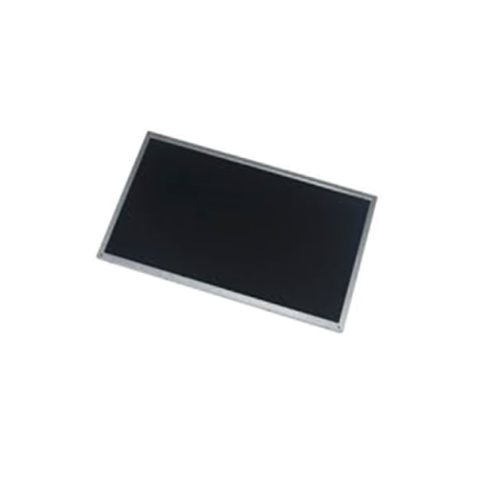

Product Picture:

G156HTN01.0

roduct

Video/VGA/DVI/HDMI Controller
