G101STN01.6 AUO 10.1 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,Shenzhen |
AU Optronics Corp. (hereafter called AUO) G101STN01.6 is a 10.1 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, With LED Driver, without touch screen. This AUO TFT-LCD is a 10.1 inch with Consumer Lcd Display, it have LCD Controller and Tft Color Screen. Based on datasheet with version of Ver1.0 which was released out on 3 12 2018, G101STN01.6 supports display 1024(RGB)×600 (WSVGA) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 222.72(W)×125.28(H) mm, outline size of 235(W)×143(H)×5.2(D) mm, viewing area size of 226.34(W)×128.10(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 180g (Typ.). As a TN, Normally White, Transmissive LCM product, G101STN01.6 can provides 250 cd/m² display brightness 500:1 transimissive contrast ratio, 70/70/60/60 (Typ.)(CR≥10) (L/R/U/D) viewing angle , and response time of 7/9 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 6-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 262K/16.7M colors, also with performance of color gamut 45% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 15K hours, With LED Driver. G101STN01.6 utilizes LVDS (1 ch, 6/8-bit) as it's signal inputting systerm, which connected by 40 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input.
Model
G101STN01.6
Brand
AUO
Diagonal Size
10.1 inch
Type
a-Si TFT-LCD, LCM
Pixel Format
1024(RGB)×600 [WSVGA] 117PPI
Configuration
RGB Vertical Stripe
Active Area
222.72(H)×125.28(V) mm
Outline Dim.
235(H)×143(V) ×5.2(D) mm
Bezel Area
226.34(H)×128.10(V) mm
Treatment
Antiglare, Hard coating (3H)
Luminance
250 cd/m² (Typ.)
Contrast Ratio
500:1 (Typ.) (TM)
Response Time
7/9 (Typ.)(Tr/Td)
Viewing Angle
70/70/60/60 (Typ.)(CR≥10)
Operating Mode
TN, Normally White, Transmissive
Support Color
262K/16.7M 45% NTSC
Light Source
WLED , 15K hours , With LED Driver
Weight
180g (Typ.)
Frame Rate
60Hz
Touch Panel
Without
Interface Type
LVDS (1 ch, 6/8-bit) , 40 pins Connector
Power Supply
3.3V (Typ.)
Environment
Operating Temperature: -10 ~ 60 °C ; Storage Temperature: -30 ~ 70 °C

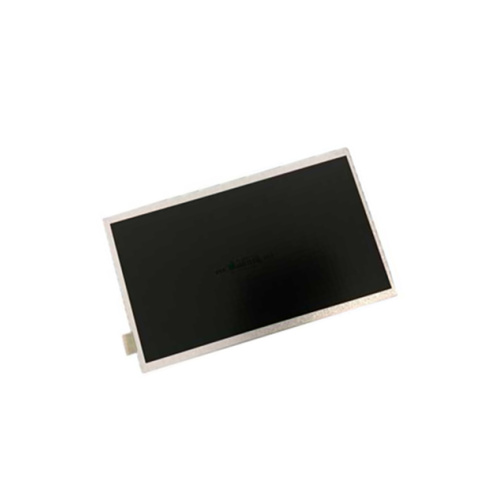

Product Picture:
roduct
