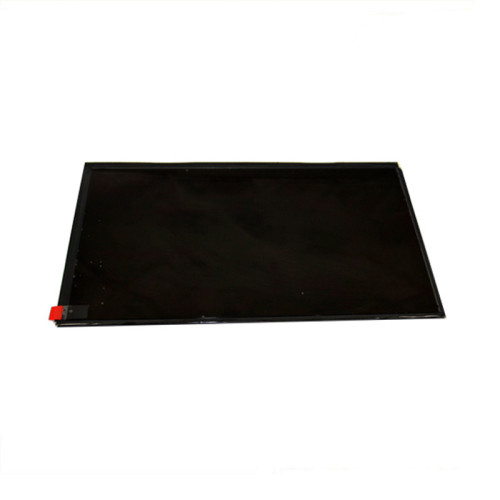

G101EVT04.0 AUO 10.1 inch TFT-LCD

$20.00

≥1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Transportation:: Ocean, Land, Air

Port:: HK, Shenzhen

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	TAIWAN
Payment Type:	T/T,Paypal
Incoterm:	FOB,EXW
Certificate:	CE,ROHS,ISO9001
Transportation:	Ocean,Land,Air
Port:	HK,Shenzhen

Product Description

AU Optronics Corp. (hereafter called AUO) G101EVT04.0 (Alias: G101EVT04 V.0) is a 10.1 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, touchscreen PCAP. AUO TFT-LCD is a 10.1 inch with consumer Lcd Display, it have LCD Controller and Tft Color Screen. Based on datasheet with version of Ver0.1 which was released out on 1 6 2017, G101EVT04.0 supports display 1280(RGB)×800 (WXGA) with aspect ratio of 16:10 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 216.96(W)×135.6(H) mm, outline size of 257.35(W)×175.5(H)×6.64(D) mm, with surface treament of Antiglare (Haze 3%), Hard coating (9H), net weight of 265g (Max.). As a MVA, Normally Black, Transmissive LCM product, G101EVT04.0 can provides 360 cd/m² display brightness 1300:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 25 (Typ.)(Tr+Tf) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors, also with performance of color gamut 45% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 20K hours. G101EVT04.0 utilizes LVDS (1 ch, 6-bit) as it's signal inputting systerm, which connected by 40 pins Connector with power supply voltage of 3.3V (Typ.)(VDD). It's typical vertical frame rate (Fv) is 60Hz.

We are able to offer AD board for this display to support VGA video input.

Panel Model	G101EVT04.0
Panel Brand	AUO
Panel Size	10.1"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1280(RGB)×800 , WXGA
Pixel Format	RGB Vertical Stripe
Display Area	216.96(W)×135.6(H) mm
Outline Size	257.35(W)×175.5(H) ×6.64(D) mm
Surface	Antiglare (Haze 3%), Hard coating (9H)
Brightness	360 cd/m² (Typ.)
Contrast Ratio	1300:1 (Typ.) (TM)
Viewing Angle	85/85/85/85 (Typ.)(CR≥10)
Display Mode	MVA, Normally Black, Transmissive
Best View on	Symmetry
Response Time	25 (Typ.)(Tr+Tf)
Display Colors	262K 45% NTSC
Lamp Type	WLED , 20K hours
Frequency	60Hz
Touch Screen	PCAP
Panel Weight	265g (Max.)
Signal Interface	LVDS (1 ch, 6-bit) , 40 pins Connector
Input Voltage	3.3V (Typ.)(VDD)
Environment	Operating Temp.: -20 ~ 60 °C ; Storage Temp.: -30 ~ 70 °C
