G151EVN01.0 AUO 15.1 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,Shenzhen |
G151EVN01.0 is a 15.1 inch diagonal a-Si TFT-LCD display screen product from AUO, with a built-in WLED backlight, With LED Driver, without touch screen. AUO TFT-LCD is a 15.1 inch with consumer Lcd Display, it have LCD Controller and Tft Color Screen. On the basis of latest version datasheet Ver1.1 which was released out on 8 30 2016, G151EVN01.0 supports display 1280(RGB)×248 with aspect ratio of >3:1 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 376.32(W)×72.91(H) mm, outline size of 396(W)×100.8(H) mm, viewing area size of 380.32(W)×75.9(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 700g (Max.). As a MVA, Normally Black, Transmissive LCM product, G151EVN01.0 can provides 300 cd/m² display brightness 2000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 15/5 (Typ.)(Tr/Td); 8 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 70% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 50K hours, With LED Driver. G151EVN01.0 utilizes LVDS (2 ch, 8-bit) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 5.0V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input.
Model Name
G151EVN01.0
Manufacturer
AUO
Screen Size
15.1 inch (1/4 cut of 19.0")
Screen Type
LCM, a-Si TFT-LCD
Pixel Number
1280(RGB)×248
Arrangement
RGB Vertical Stripe
Active Area(mm)
376.32 × 72.91 (H×V)
Outline(mm)
396 × 100.8 (H×V×D)
Bezel Area(mm)
380.32 × 75.9 (H×V)
Treatment
Antiglare, Hard coating (3H)
Luminance
300 cd/m² (Typ.)
Contrast Ratio
2000 : 1 (Typ.) (TM)
Viewing Angle
89/89/89/89 (Typ.)(CR≥10)
Response
15/5 (Typ.)(Tr/Td); 8 (Typ.)(G to G) ms
Good View at
Symmetry
Work Mode
MVA, Normally Black, Transmissive
Color Depth
16.7M 70% NTSC
Backlight
WLED , 50K hours , With LED Driver
Mass
700g (Max.)
Refresh Rate
60Hz
Touchscreen
Without
Signal Type
LVDS (2 ch, 8-bit) , Connector 30 pins
Voltage Supply
5.0V (Typ.)
Max. Ratings
Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C

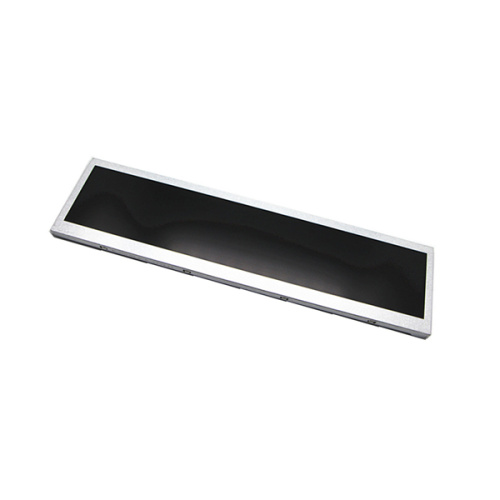

Product Picture:
roduct
