G270HAN01.0 AUO 27.0 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,Shenzhen |
G270HAN01.0 is a 27.0 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, With LED Driver, without touch screen. AUO TFT-LCD is a 27.0 inch with consumer Lcd Display, it have LCD Controller and Tft Color Screen. G270HAN01.0 supports display 1920(RGB)×1080 (FHD) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 597.888(W)×336.312(H) mm, outline size of 630(W)×368.2(H)×23.4(D) mm, viewing area size of 602(W)×340.4(H) mm, with surface treament of Antiglare, net weight of 3.40Kgs (Typ.). As a AHVA, Normally Black, Transmissive LCM product, G270HAN01.0 can provides 900 cd/m² display brightness 1000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 14 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 10-bit gray scale signal for each dot, thus presenting a palette of 1.07B colors, also with performance of color gamut 87% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type (Top and Bottom) and have a working life time of 50K hours, With LED Driver. G270HAN01.0 utilizes LVDS as it's signal inputting systerm, which connected by 51 pins Connector with power supply voltage of 12.0V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input.
Model Name
G270HAN01.0
Manufacturer
AUO
Screen Size
27.0 inch
Screen Type
LCM, a-Si TFT-LCD
Pixel Number
1920(RGB)×1080 (FHD)
Arrangement
RGB Vertical Stripe
Active Area(mm)
597.888 × 336.312 (H×V)
Outline(mm)
630 × 368.2 × 23.4 (H×V×D)
Bezel Area(mm)
602 × 340.4 (H×V)
Treatment
Antiglare
Luminance
900 cd/m² (Typ.)
Contrast Ratio
1000 : 1 (Typ.) (TM)
Viewing Angle
89/89/89/89 (Typ.)(CR≥10)
Response
14 (Typ.)(Tr+Td) ms
Good View at
Symmetry
Work Mode
AHVA, Normally Black, Transmissive
Color Depth
1.07B 87% NTSC
Backlight
WLED , 50K hours , With LED Driver
Mass
3.40Kgs (Typ.)
Refresh Rate
60Hz
Touchscreen
Without
Signal Type
LVDS , Connector 51 pins
Voltage Supply
12.0V (Typ.)
Max. Ratings
Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C

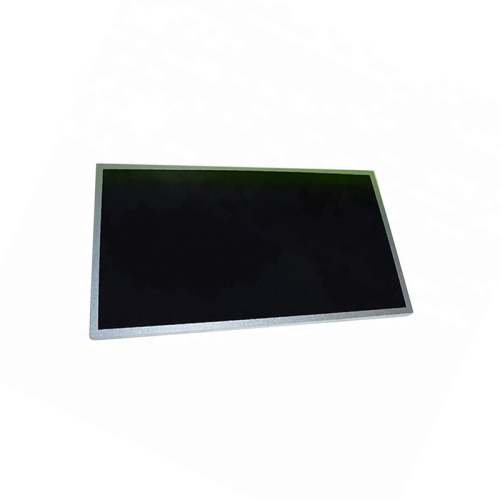

Product Picture:
roduct
