M240UAN01.0 AUO 24.0 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,Shenzhen |
M240UAN01.0 is a 24.0 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, Without Driver, without touch screen. AUO TFT-LCD is a 24.0 inch with consumer Lcd Display, it have LCD Controller and Tft Color Screen. M240UAN01.0 supports display 1920(RGB)×1200 (WUXGA) with aspect ratio of 16:10 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 518.4(W)×324(H) mm, outline size of 546.4(W)×352(H)×12.2(D) mm, viewing area size of 522.4(W)×328.0(H) mm, with surface treament of Antiglare (Haze 25%), net weight of 2.53Kgs (Typ.). As a AHVA, Normally Black, Transmissive LCM product, M240UAN01.0 can provides 300 cd/m² display brightness 1000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 14 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 100% (sRGB). This product adopted 10S4P WLED as it's backlight systerm which was placed as Edge light type (Right side) and have a working life time of 30K hours, external backlight driver is additionally needed. M240UAN01.0 utilizes LVDS (2 ch, 8-bit) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 12.0V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input.
Panel Model
M240UAN01.0
Panel Brand
AUO
Panel Size
24.0"
Panel Type
a-Si TFT-LCD, LCM
Resolution
1920(RGB)×1200 , WUXGA
Pixel Format
RGB Vertical Stripe
Display Area
518.4(W)×324(H) mm
Bezel Opening
522.4(W)×328.0(H) mm
Outline Size
546.4(W)×352(H) ×12.2(D) mm
Surface
Antiglare (Haze 25%)
Brightness
300 cd/m² (Typ.)
Contrast Ratio
1000:1 (Typ.) (TM)
Viewing Angle
89/89/89/89 (Typ.)(CR≥10)
Display Mode
AHVA, Normally Black, Transmissive
Best View on
Symmetry
Response Time
14 (Typ.)(G to G)
Display Colors
16.7M 100% sRGB
Lamp Type
10S4P WLED , 30K hours , Without Driver
Frequency
60Hz
Touch Screen
Without
Panel Weight
2.53Kgs (Typ.)
Signal Interface
LVDS (2 ch, 8-bit) , 30 pins Connector
Input Voltage
12.0V (Typ.)
Environment
Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C

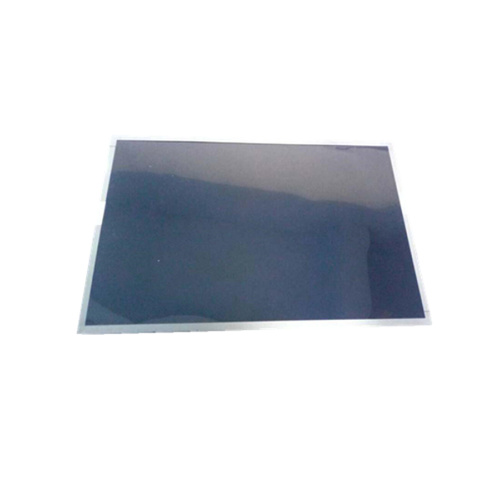

Product Picture:
roduct
