G238HAN01.3 AUO 23.8 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,Shenzhen |
AU Optronics Corp. (hereafter called AUO) G238HAN01.3 is a 23.8 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, without backlight driver, without touch screen. AUO TFT-LCD is a 23.8 inch with consumer Lcd Display, it have LCD Controller and Tft Color Screen. Based on datasheet with version of Ver1.0 which was released out on 11 9 2018, G238HAN01.3 supports display 1920(RGB)×1080 (FHD) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 527.04(W)×296.46(H) mm, outline size of 543(W)×317.4(H)×11.65(D) mm, viewing area size of 530.2(W)×299.6(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 2.30Kgs (Typ.). As a AHVA, Normally Black, Transmissive LCM product, G238HAN01.3 can provides 625 cd/m² display brightness 1000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 14 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 72% (NTSC). This product adopted 20S4P WLED as it's backlight systerm which was placed as Edge light type (Bottom side) and have a working life time of 50K hours, external backlight driver is additionally needed. G238HAN01.3 utilizes LVDS (2 ch, 8-bit) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 5.0V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input.
Panel Model
G238HAN01.3
Panel Brand
AUO
Panel Size
23.8"
Resolution
1920(RGB)×1080 , FHD
Display Area
527.04(W)×296.46(H) mm
Outline Size
543(W)×317.4(H) ×11.65(D) mm
Brightness
625 cd/m² (Typ.)
Viewing Angle
89/89/89/89 (Typ.)(CR≥10)
Best View on
Symmetry
Display Colors
16.7M 72% NTSC
Frequency
60Hz
Weight
2.30Kgs (Typ.)
Panel Type
a-Si TFT-LCD , LCM
Pixel Format
RGB Vertical Stripe
Bezel Opening
530.2(W)×299.6(H) mm
Surface
Antiglare, Hard coating (3H)
Contrast Ratio
1000:1 (Typ.) (TM)
Display Mode
AHVA, Normally Black, Transmissive
Response Time
14 (Typ.)(G to G)
Lamp Type
20S4P WLED , 50K hours , Without Driver
Touch Screen
Without
Signal Interface
LVDS (2 ch, 8-bit) , 30 pins Connector
Input Voltage
5.0V (Typ.)
Environment
Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C

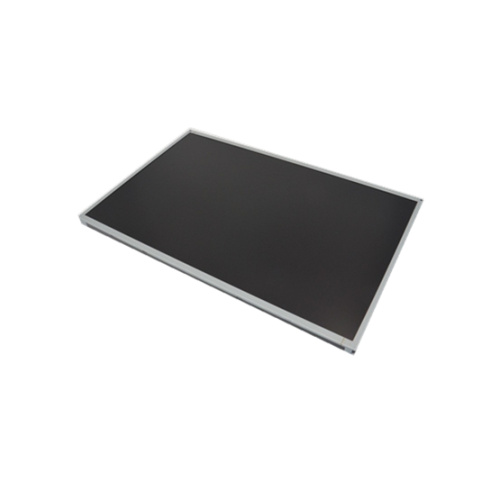

Product Picture:
