G065VN01 V.2 AUO 6.5 inch tft display

Get Latest Price

Payment Type:: T/T, Paypal, Western Union

Incoterm:: FOB, EXW

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Delivery Time:: 3 Days

Transportation:: Ocean, Land, Air

Port:: HK, Shenzhen

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	TAIWAN
Payment Type:	T/T,Paypal,Western Union
Incoterm:	FOB,EXW
Certificate:	CE,ROHS,ISO9001
Transportation:	Ocean,Land,Air
Port:	HK,Shenzhen

Product Description

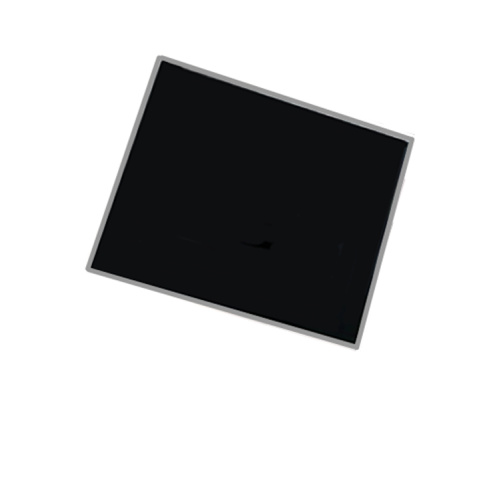

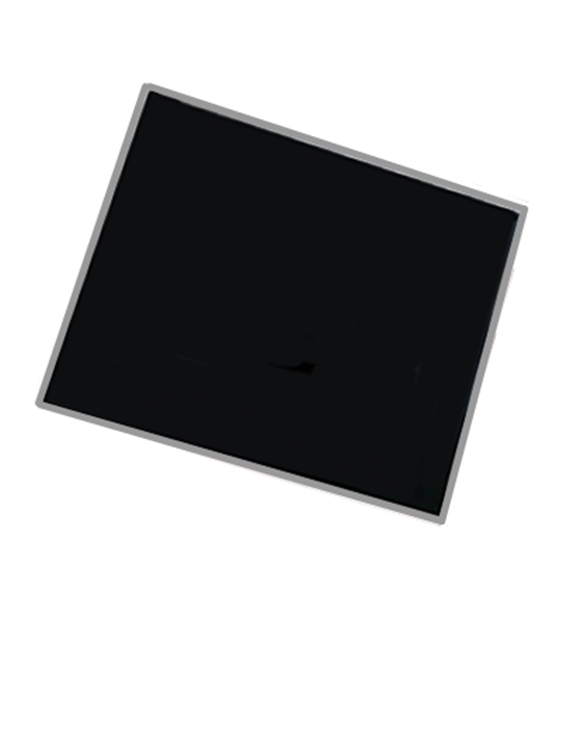

G065VN01 V.2 is a 6.5 inch diagonal a-Si TFT-LCD display, AUO TFT-LCD. With a built-in WLED backlight,G065VN01 V2 can provide 800 cd/m² brightness and have a working life time of 50K hours,it supports display 640(RGB)×480 (VGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. It features active area of 132.48(W)×99.36(H) mm, outline size of 153(W)×118(H)×11.2(D) mm. , It has LVDS (1 ch, 6/8-bit) interface,widely used in many equipment.We are able to provide the LCD controller for G065VN01 V.2

Panel Model	G065VN01 V2
Panel Brand	AUO
Panel Size	6.5"
Resolution	640(RGB)×480 , VGA
Display Area	132.48(W)×99.36(H) mm
Outline Size	153(W)×118(H) ×11.2(D) mm
Brightness	800 cd/m² (Typ.)
Viewing Angle	80/80/70/70 (Typ.)(CR≥10)
Best View on	6 o'clock
Display Colors	262K/16.2M 55% NTSC
Frequency	60Hz
Weight	170g (Typ.)
Panel Type	a-Si TFT-LCD , LCM
Pixel Format	RGB Vertical Stripe
Bezel Opening	135.9(W)×102.8(H) mm
Surface	Glare (Haze 0%), Hard coating (3H), Antireflection
Contrast Ratio	600:1 (Typ.) (TM)
Display Mode	TN, Normally White, Transmissive
Response Time	15/10 (Typ.)(Tr/Td)
Lamp Type	WLED , 50K hours , With LED Driver
Touch Screen	Without
Signal Interface	LVDS (1 ch, 6/8-bit) , 20 pins , Connector
Input Voltage	3.3V (Typ.)
Environment	Operating Temp.: -30 ~ 80 °C ; Storage Temp.: -30 ~ 80 °C
