16L Agriculture pesticide spraying drone seed spreading
- Min. Order:
- 1 Set/Sets
- Min. Order:
- 1 Set/Sets
- Transportation:
- Air
- Port:
- Shenzhen, Qing Dao
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 300 |
| Supply Ability: | 50 sets/ Month |
| Payment Type: | T/T,Paypal |
| Incoterm: | EXW |
| Transportation: | Air |
| Port: | Shenzhen,Qing Dao |

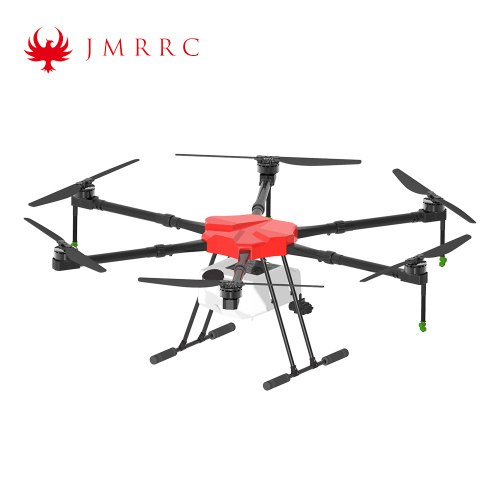

JMR-V1650 Agriculture sprayer drone most materials are carbon fibers. Stronger and light weight. Keep reliable flights and the lowest running cost is what we are striving. High efficiency propulsion system Let this Drone Flight Platform can take off 16Kg pesticide or 20Kg (if use 32 inches propeller and other Agricultural landing Gear ). Pesticide spray efficiency upto 4 to 4.5.0 hectares per hour. Intelligent spray work release your hands ,Setup flight plan by App for your fields , then left the drone do the rest. Record and save the report of the spraying work,Save the missions data for next spraying work. 16L sprayer drone beseem to spraying the crops of rice ,wheat, corn, sugarcane, soybean, peanut ,grass,tea ,watermelon etc.Functions include: A-B point automatic spraying work;Airway navigation automatic spraying; Tank empty alarm and continue to spray;Low battery safe protection; Fail safe protection; Height keeping radar etc.
Quick reload battery cartridge
Battery slipping tray compatible with different capacity batteries. (2*6S 16000mAh upto 2*6S 22000mAh) . And smart 12S battery also.
Stronger Frame
3mm thickness Carbon fiber center plate with whole-made 2mm Carbon Fiber arm pipe give stronger structural strength for this drone. Reinforcing rib on the bottom bring the powerful shock resistance and impact resistance. The lowest maintenance charger if any air crash happened.
Nozzles Protection
Rubber Nozzles mount can anti-collision during drone in transporting.
Multi purpose
Compatible with 13L spreading system ,Easily exchange between spreading and spraying system just remove few screws .
Agriculture Functions:
|
SPECIFICATIONS |
|||
|
Model : |
JMR-V1650HZ |
Tank Capc. |
16 L |
|
N.W. : |
14.5Kg |
Max Take Off Weight: |
36Kg /45KG (32` PROP) |
|
Dimension(expand): |
176x153x59 CM |
Dimension(folded): |
81x72x59 CM |
|
Control Radius: |
3000 Meters |
Max Flight Height: |
30 Meters |
|
Spraying Width: |
4~5.5 Meters |
Flight Speed: |
1~9 M/S |
|
Hovering Time(no load): |
26 Min |
Hovering Time(load): |
10.2 Min |
* Hovering Time Tested by 2*6S 22000mAh, N3 AG 1.0 FC. Full load at 36 Kg
|
FUNCTIONS LIST |
|||
|
FLIGHT MODE |
MANUAL/GPS |
SPRAY MODE |
MANUAL/A-B POINT/AIRWAY |
|
TERRAIN FOLLOW |
RADAR |
OBSTACLE SENSOR |
RADAR * |
|
EMPTY TANK WARNING |
YES |
CONTINUE SPRAY |
YES |
|
LOW BATTERY ALRM |
LANDING/RTH |
RETURN TO LANDING |
FAILSAFE RTH/SMART RTH |
|
FLOWRATE CONTROL |
MANUAL/AUTO |
DATA PROTECTION |
YES |
|
FPV( REAL TIME VIDEO) |
720P * |
CROP APP |
Android App |
* Optional Hardware request
Measurement
Because Agricultural Drone maybe different configurations depend customers demand, Price offered Do Not Include the Drone Lipo Batteries and Lipo Battery Charger , Duo to supply the correct products to you ,Please contact us before your make order.
