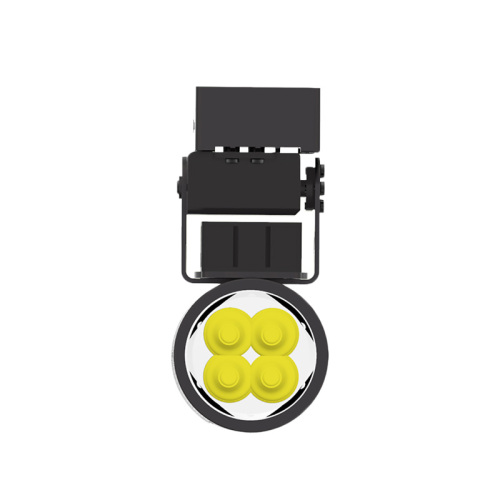

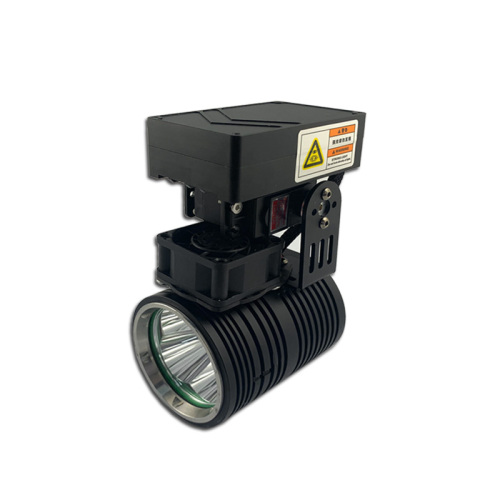

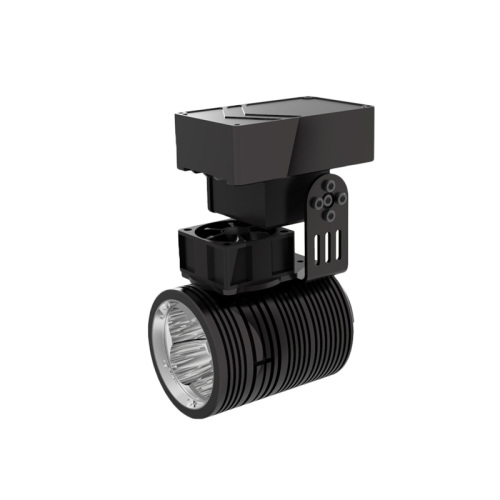

The TZD-120 searchlight has a power of only 65W. It is specially designed for drones and is light in weight. It uses 4 * Cree XHP50 LED high-efficiency wicks with a brightness of up to 10000LM and a wide and uniform beam. The aluminum alloy casing and integrated fan are used for heat dissipation. Most LED emitter systems weigh more than 1kg, our weight is only 600g.
It is loaded on the drone for emergency lighting during the night and live view of the scene. It is widely applied for emergency repair, search and rescue, night patrol, and other low illumination situations.

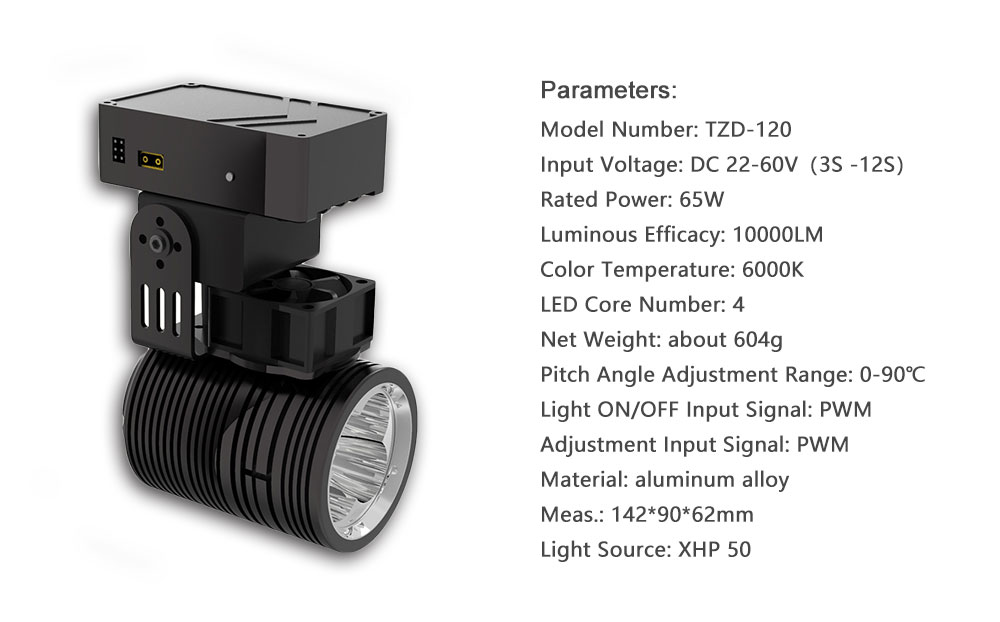

Parameters:
Model Number: TZD-120
lnput Voltage: DC 22-60V (3S -12S)
Rated Power: 65W
Luminous Efficacy: 10000LM
Color Temperature: 6000K
LED Core Number: 4
Net Weight: about 604gPitch Angle Adjustment Range: 0-90℃

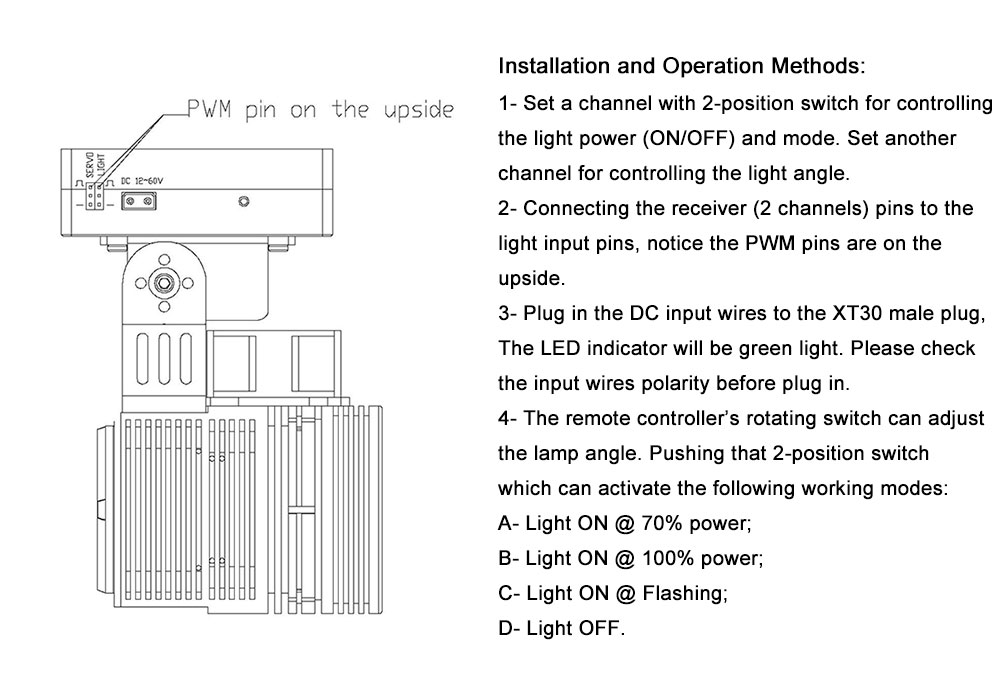

Light ON/OFF Input Signal: PWM
Adjustment Input Signal: PWM
Material: aluminum alloy
Meas.: 142*90*62mm
Light Source: XHP 50
We also support customization, if you have different needs, you can contact us.
