Patrol Searchlight For Drone UAV
-
$428.00≥1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Transportation:
- Land, Air
- Port:
- Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 3000 |
| Supply Ability: | 500/Month |
| Payment Type: | T/T,Paypal |
| Incoterm: | EXW |
| Transportation: | Land,Air |
| Port: | Shenzhen |
Introduction:

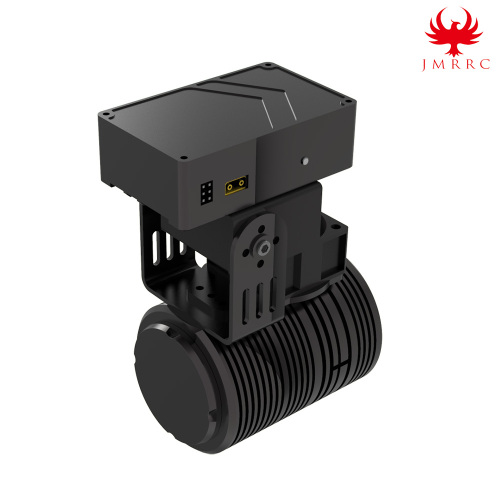

JMRRC High Brightness Searchlight for Industrial Drone, Application to securtiy Patrol Drone, rescue drone etc, It use 4 *Cree XHP-50 LED cores. The brightness upto 10000 LM. wide and uniform light beam, long distance irradiation, high efficient illuminance. Aluminium alloy design with heat protection function, And 0~90° irradiation angle adjustable, Light can be switch on/off by remote controller.
The light intertrated proection module, while the light temperate get to 60 degrees, the light will adjust the output power to 50% of existing power to protect the LED module.
The light has 3 work mode: (set a 2 position switch control it )
A-70% of total power;
B-Full power;
C-Flashing Mode.
Diagram:
Servo : Control light angle, Set a knob on the remote controller.
Light: Control light modes and on/off, set a 2 position swithc on remote controller.
Parameters:
Parameter
Input Voltage
22-60V DC (3S -12S)
Rated Power
65W
Light intensity
10000LM
color temperature
6000K
LED core quantity
4* XHP50
N.W.
604 g
Pitch angle adjust Range
0-90 degrees
Light On/Off input signal
PWM
Adjustment input signal
PWM
Light shell materials
Aluminium Alloy
Notice:
1-Irradiate to eyes may harm human eyes.
2-Do not reserve polarity of power input.
3-Control Module is not water proof!
4-Beware of high temperature ,Do not touch the lamp outisde during it working or after work.
