underwater propulsion system for ROV AUV USV SUP
- Transportation:
- Air
Your message must be between 20 to 2000 characters
Contact Now| Supply Ability: | 100 per month |
|---|---|
| Payment Type: | T/T,Paypal |
| Incoterm: | EXW |
| Transportation: | Air |
Full sealing design for Underwater Proulsion applications.Work in river, lake,Ocean enviroments. Such as ROV,AUV,USV and customized submersible devices. If give 5.85kgf forward and 2.95kgf thrust for each system.
you can combine 2 or 3,4+ Underwater Propulsion Systems for bigger device.
- Anti-corrosions,Rotary dynamic sealing and Outside materials is stanless steel, Fairing materials is POM.
- At 165W give 3.5kgf thrust, high effiency.
- Compatible with PWM/FOC ESC.
- Brushless Motor.
- Maintenance Free design.
-
N.W only 965g.
|

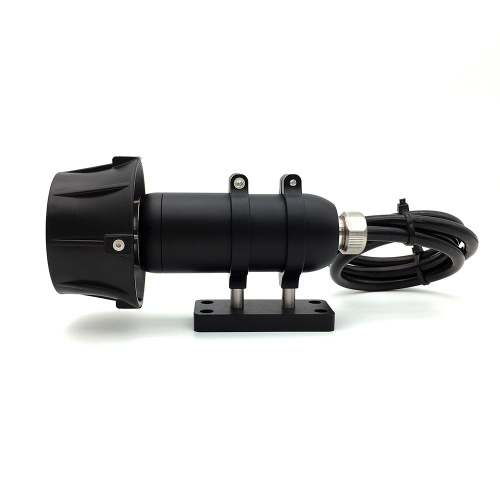

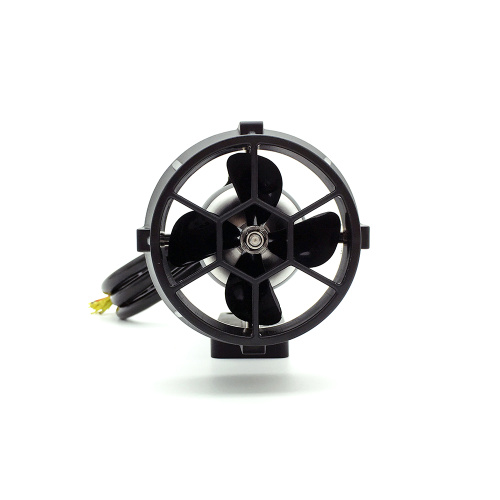

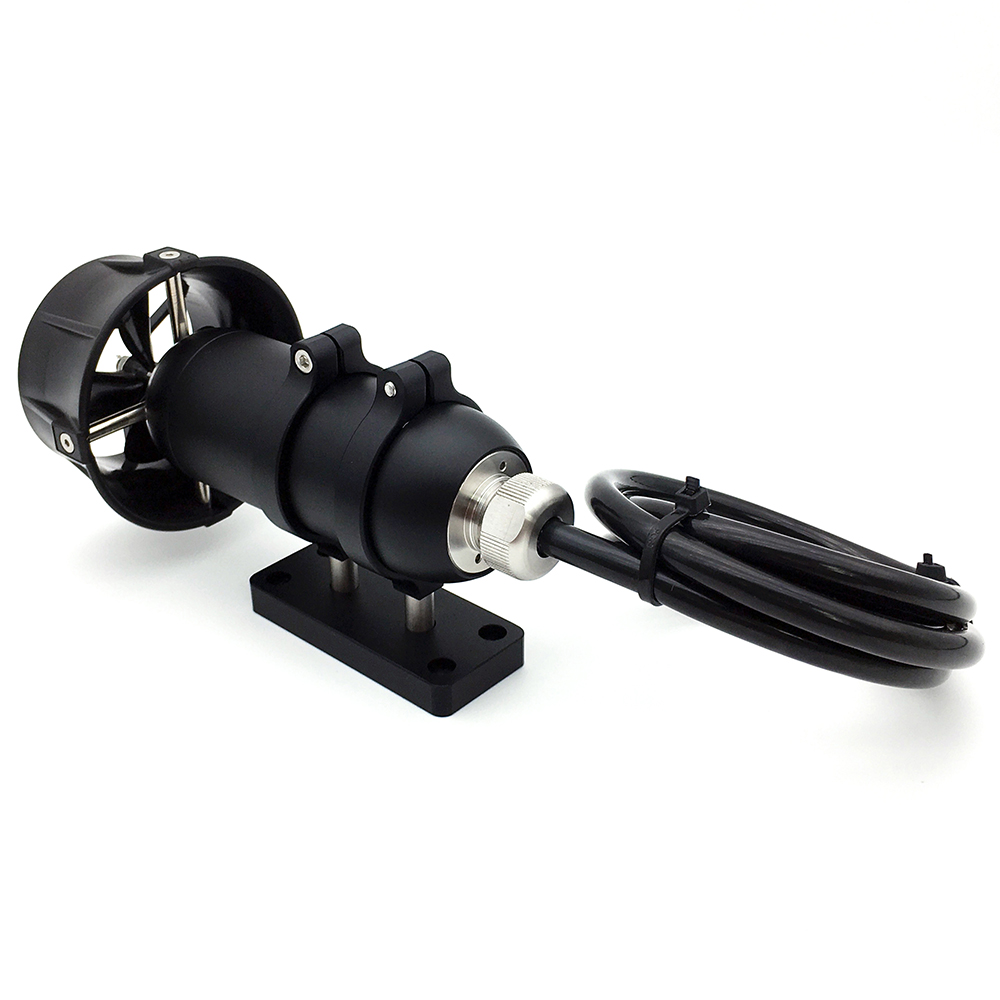

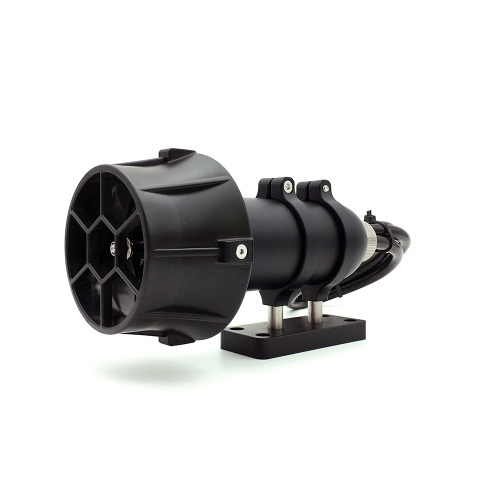

TH60 Under water propulsion System |
|||
|
Model Number |
TH60 |
Fairing materials |
POM |
|
Ver. No. |
2020-V1.0 |
Prop. materials |
PC |
|
Motor Type |
Inner rotor brushless motor |
Wire skin materials |
TUP |
|
Sealing type |
Maintenance-free fully sealed |
||
|
leakproof structure |
Rotary dynamic seal |
Wires materials |
Tinned copper wire |
|
Max. Thrust |
5.85kgf（CW） 2.95kgf（CCW） |
Other parts materials |
316L Stanless steel |
|
Rated Voltage |
24VDC |
Mount materials |
POM |
|
Working Voltage |
11.1-25.2VDC |
Outshell materials |
Al. Alloy 6061 |
|
Rated power |
380W |
Propeller type |
CW/CCW |
|
rated current |
16Amps |
Wires spec. | OD.8.5mm L:1000mm Pins：3*2.5mm² |
|
lPressure depth |
200m |
|
|
|
Min. Trust |
0.01kgf |
ESC |
Extraposition |
|
Main shaft materials |
316L Stanless steel |
N.W. |
965g |
|
Diam. of propeller |
60mm/ quadfoil |
Work Temperatures |
Storage：0-40℃ Work ：0-38℃ |
