Product Description
Product Description

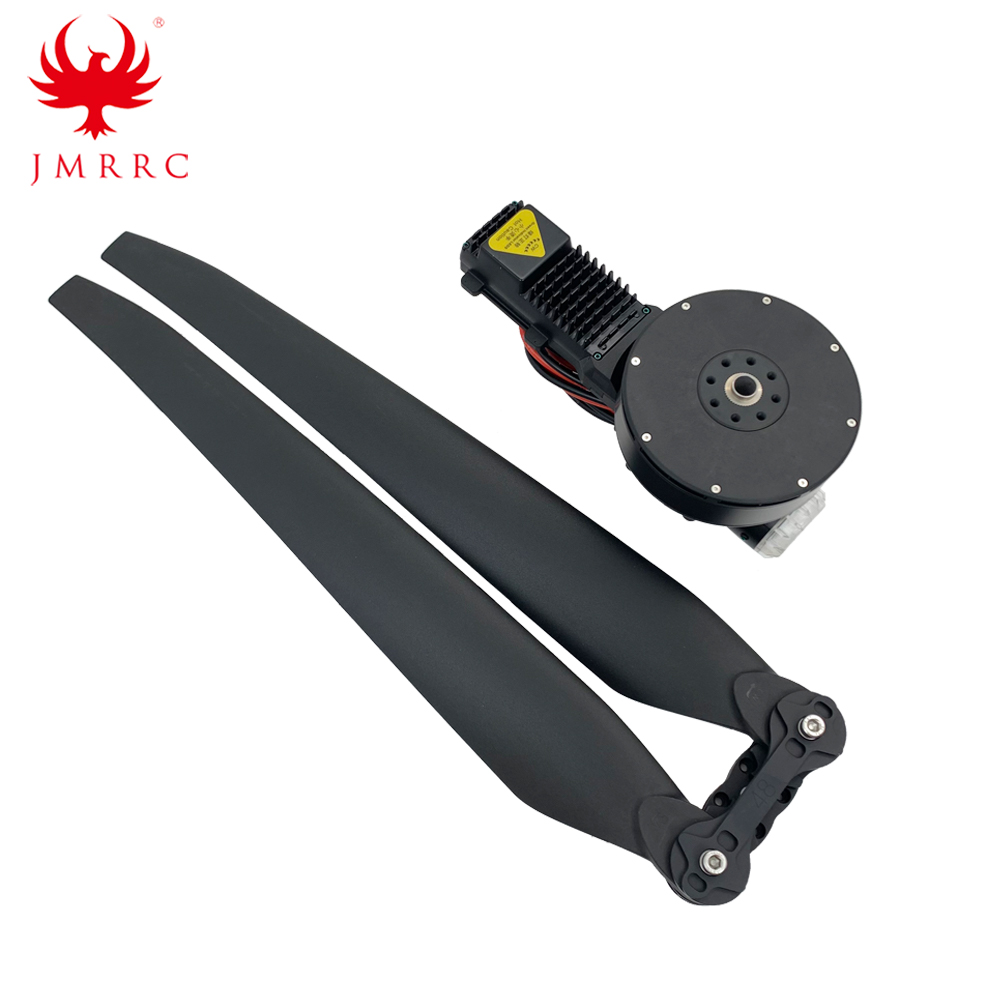

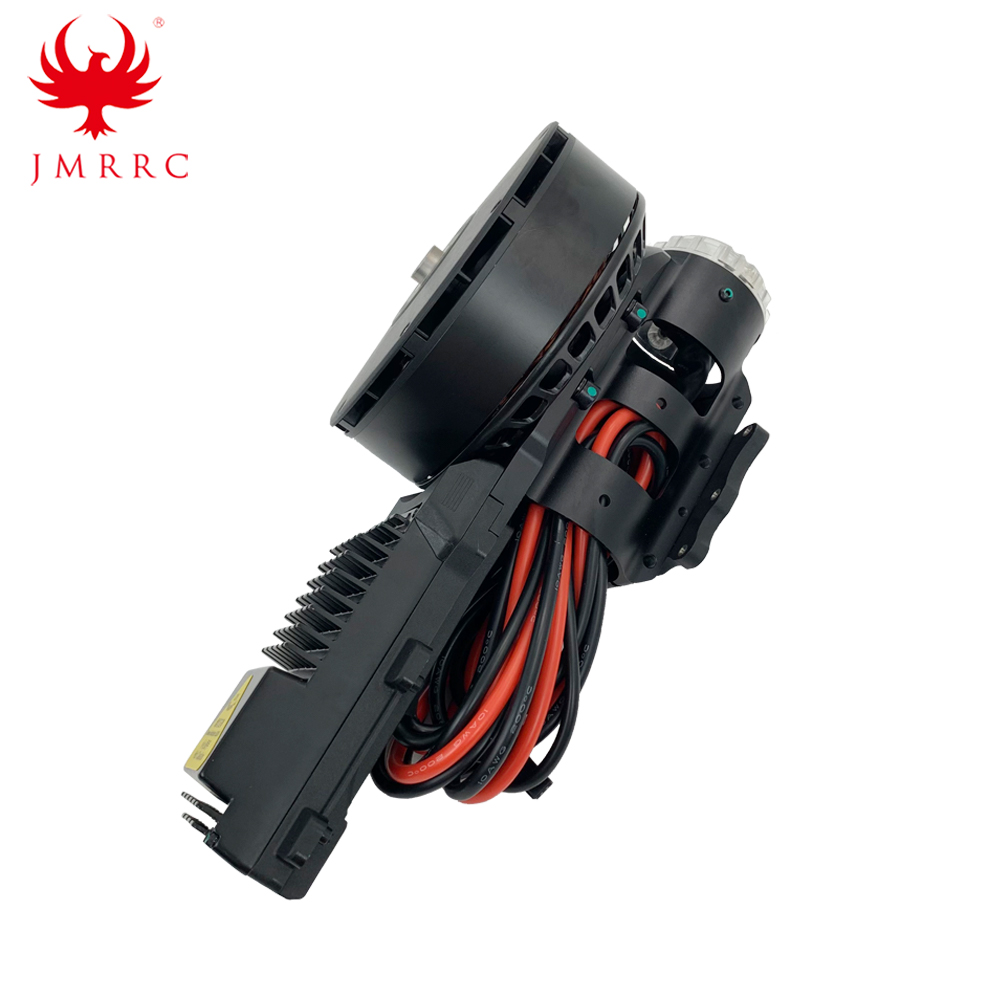

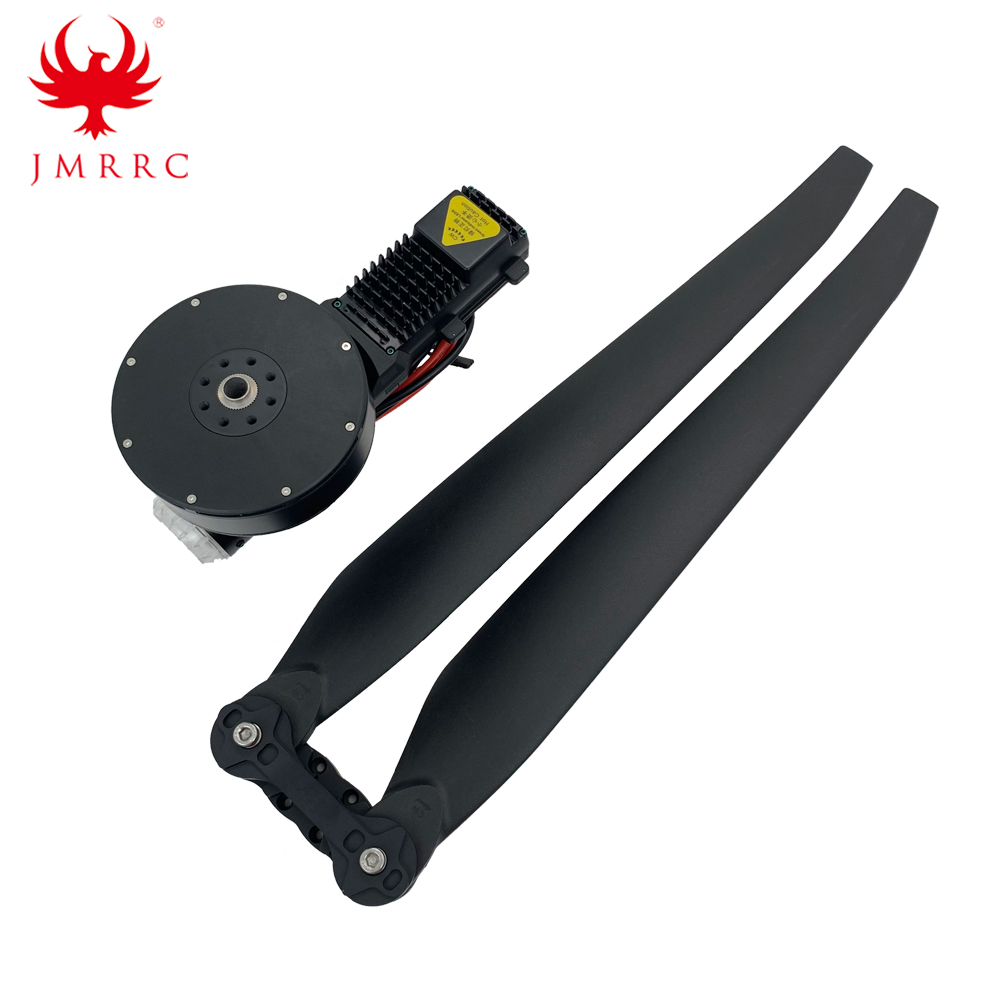

M40 14S 18S FOC Integrated Motor Power System with 48inch Propeller for 50mm Agricultural Sprayer UAV application drone parts



M40 Proplusion System is the heavy loads Drone Motors with ESC and Propeller combo for Agricultural Spraying Drones and industrial application multirotor which use Φ50mm Pipes .The weight is 2700g and  Providing 15kg to 20kg /Motor of rated load capacity.Designed with weather-proof. Prevent for corrosion ,rain,salt spray. And centrifugal cooling system bring higher efficiency of the cooling. It adds reliability and enable for continue running. ESC has locked rotor protection too keep safty, and components  self-checking, if the motor detected the components problem it wont unlock motor.



Max. Thrust : 38kg/Axis (14S/18S)

Recommended Take-off Weight : 15-20kg/Axis

Recommended Lipo Battery : 14S/18S (Lipo)

Operating Temperature : -20-70℃

Combo Weight : 2700±100g

KV Rating : 74KV/59KV

Stator Size: 129.8*53.5mm

Bearing : NSK imported from Japan

ESC: 150A

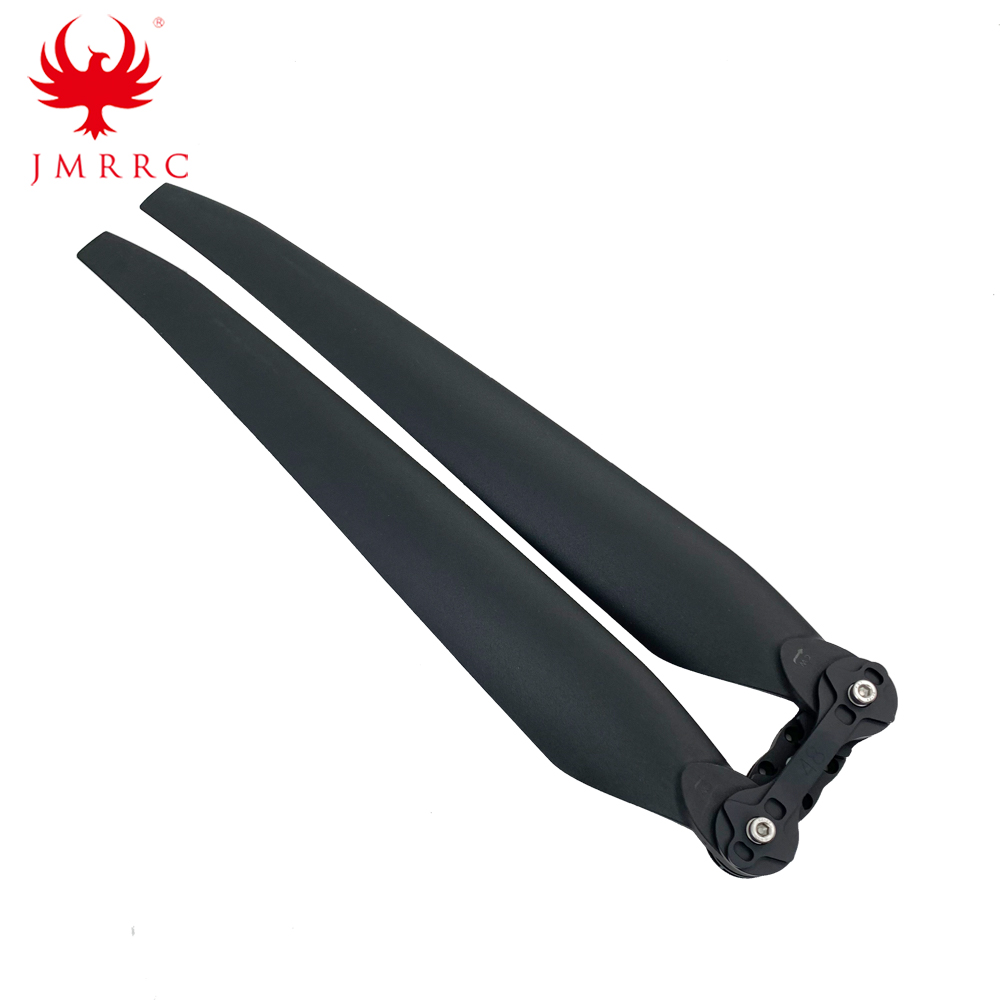

Propeller:48inch folding propeller



Packing include :

M40 Brushless FOC Combo with 48inch foldingPropeller * 1 set

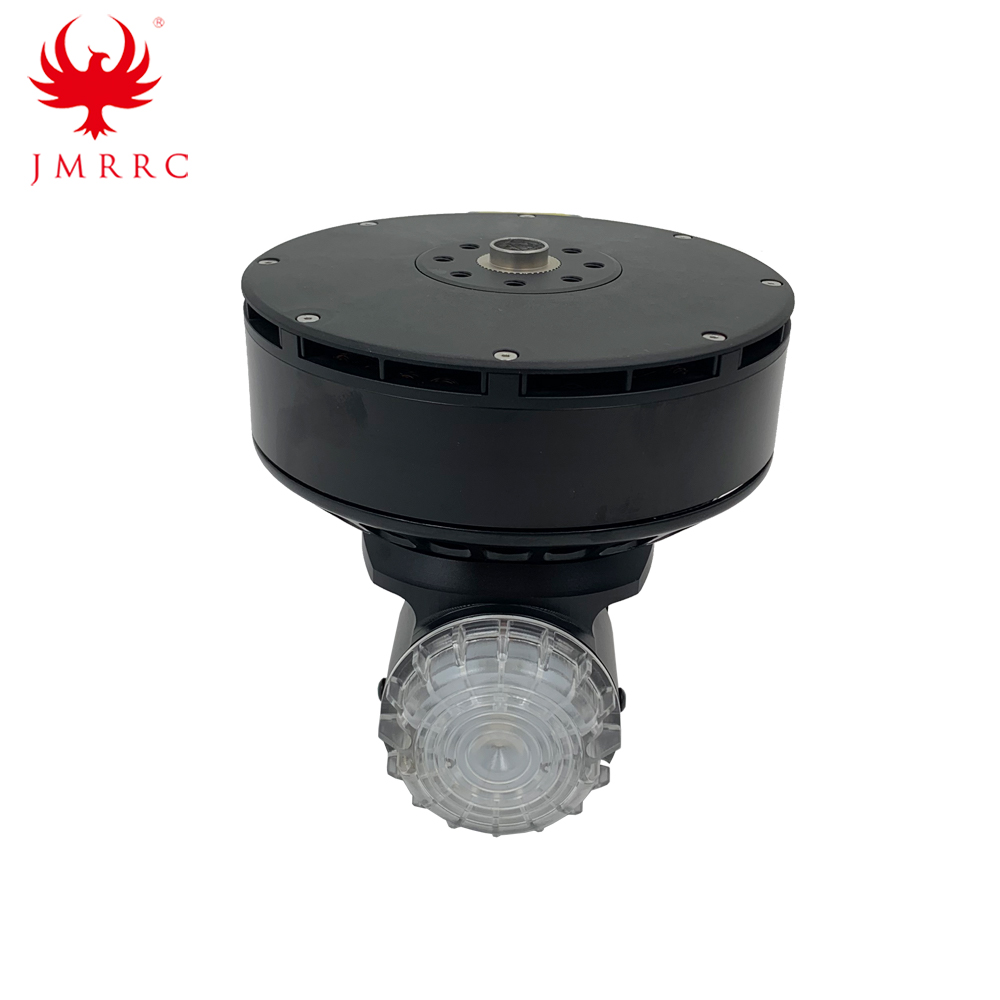

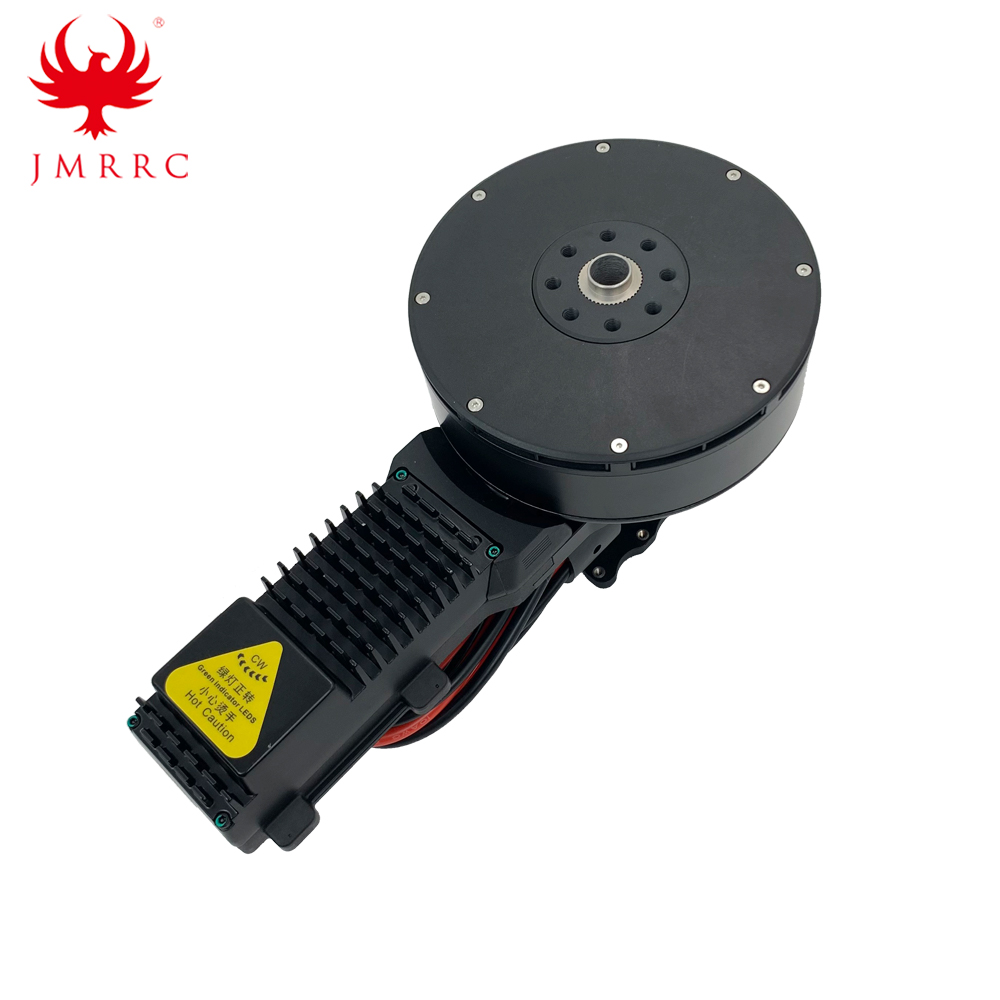

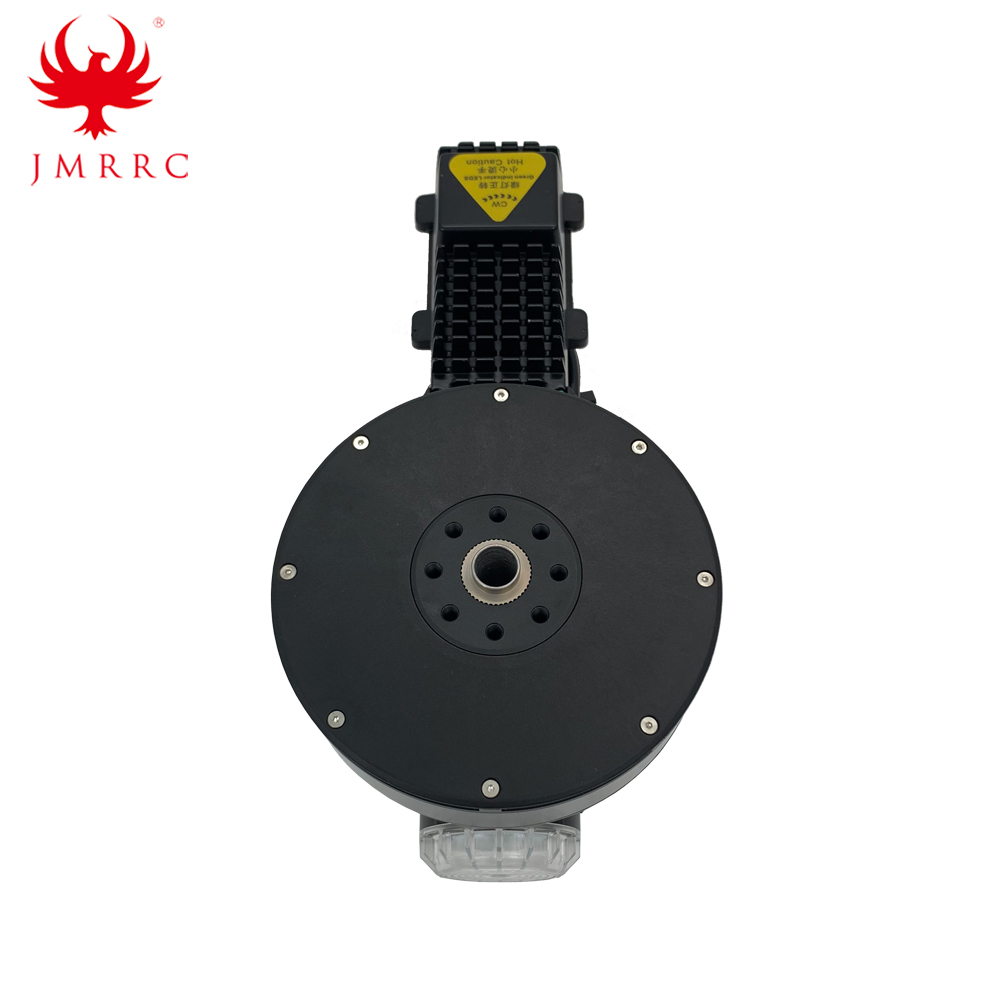

M40 Motor
48inch propellerM40 Motor 2M40 Motor 1M40 Motor comboM40 Power systemM40 Motor set
