Hobbywing X8 Integrated Style Power System X8 Motor
- Min. Order:
- 1 Set/Sets
- Min. Order:
- 1 Set/Sets
- Transportation:
- Ocean, Land, Express
- Port:
- shenzhen, shenzhen, shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Shenzhen,China |
|---|---|
| Productivity: | 500sets/month |
| Supply Ability: | 500sets/month |
| Payment Type: | T/T,L/C,Paypal |
| Incoterm: | FOB,EXW |
| Certificate: | ccc,ce |
| Transportation: | Ocean,Land,Express |
| Port: | shenzhen,shenzhen,shenzhen |

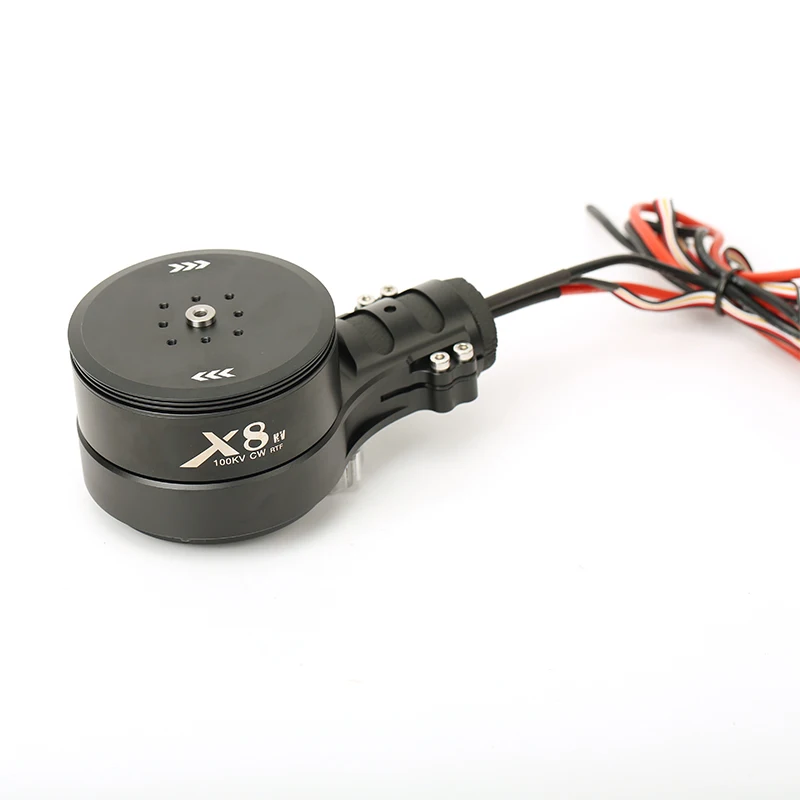

Hobbywing X8 Integrated Style Power System XRotor PRO X8 Motor 80A ESC 3011 Blades Prop for Agricultural Drones Power Combo
Specifications:
Max. Thrust: 15kg/Axis (46V, Sea Level )
Recommended Takeoff Weight:5-7kg/Axis(46V，Sea Level)
Recommended LiPo Battery:12S LiPo
Operating Temperature:-20~50℃
Combo Weight: 1150g(INC.Prop)
Waterproof Rating:IPX6
KV Rating : 100KV
Stator Size : 81*20mm
Bearing: NSK Ball Bearing (Waterproof)
Recommended LiPo Battery : 12S LiPo
PWM Input Signal Level : 3.3V/5V(Compatible)
Throttle Signal Frequency : 50-500Hz
Operating Pulse Width : 1100-1940 μs (Fixed or cannot be Programmed)
Max. Input Voltage: 52.2V
Max. Input Current (Short duration):100A(w/ Good Heat Dissipation)
BEC : No
Nozzle Mounting Holes:Φ28.4mm-2*M3
Diameter×Pitch : 3090/3011
