5010 High Torque Brushless Motor for Industry Drones
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Transportation:
- Air
- Port:
- Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 12000 |
| Supply Ability: | 1000/Month |
| Payment Type: | T/T,Paypal |
| Incoterm: | EXW |
| Certificate: | * |
| HS Code: | 8501109990 |
| Transportation: | Air |
| Port: | Shenzhen |

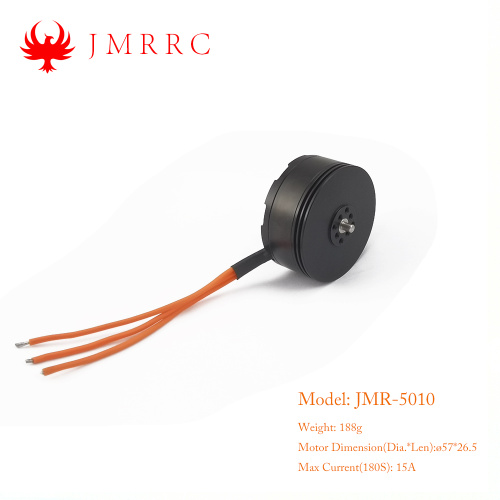

5010 Burshless Motor is the drone motors for Industry Drones . It is a very light motor only 166g per unit. Providing 0.8kg to 2kg per axis of rated load capacity. The wide rage of KV with different Drone Propeller can get wide range loads. Use for 1 to 2kg payload quad copters with 30 to 40 minutes flight time ,And work for a hexa drone Flight Platform with 2 to 5kg payload.
It is good for many different application scenes. This Brushless motor Designed with weather-proof. Prevent for corrosion ,Rain, Snow. And centrifugal cooling system bring higher efficiency of the heat sinking. It adds reliability and enable for continue running.
It is good for rescue drones , Survey Mapping Drones. Light payload (Such as wireless megaphone, search light etc) but long endurance flight time.
|
JMR Motor Datasheet |
|||||||
|
Technical Data |
|
||||||
|
Model Number |
JMR-5010 |
||||||
|
Configuration |
24N28P |
||||||
|
Stator Diamter |
50 |
||||||
|
Stator Length |
10 |
||||||
|
Motor |
ø57*26.5 |
||||||
|
Weight(g) |
188g |
||||||
|
Idle |
0.69A |
||||||
|
No.of Cells(Lipo) |
6~12S |
||||||
|
Max Continuous
Power(W)180S
|
490W |
||||||
|
Internal Resistance |
127mΩ |
||||||
|
Max Current(180S) |
15A |
||||||
|
|
|||||||
|
KV240 |
|||||||
|
Prop |
Voltages
（V）
|
Throttle
（%）
|
Load Currency |
Pull(g) |
Power(W) |
Efficiency(g |
Temperature(in full throttle load 10min) |
|
21*70 |
23 |
30% |
1.2 |
400 |
27.6 |
14.493 |
|
|
23 |
40% |
2.6 |
750 |
59.8 |
12.542 |
||
|
23 |
50% |
4.6 |
1150 |
105.8 |
10.870 |
||
|
23 |
52% |
5.1 |
1250 |
117.3 |
10.656 |
||
|
23 |
55% |
5.7 |
1400 |
131.1 |
10.679 |
||
|
23 |
58% |
6.5 |
1550 |
149.5 |
10.368 |
||
|
23 |
60% |
7 |
1650 |
161.0 |
10.248 |
||
|
23 |
62% |
8 |
1750 |
184.0 |
9.511 |
||
|
23 |
65% |
9.1 |
1950 |
209.3 |
9.317 |
||
|
23 |
68% |
10.1 |
2050 |
232.3 |
8.825 |
||
|
23 |
70% |
11 |
2150 |
253.0 |
8.498 |
||
|
23 |
75% |
13 |
2400 |
299.0 |
8.027 |
||
|
23 |
80% |
15 |
2650 |
345.0 |
7.681 |
||
|
23 |
90% |
19.7 |
3100 |
453.1 |
6.842 |
||
|
23 |
100% |
25.7 |
3600 |
591.1 |
6.090 |
||
|
|
|
|
|
|
|
|
|
|
KV140 |
|||||||
|
21*70 |
45 |
30% |
0.8 |
500 |
36.0 |
13.889 |
|
|
45 |
40% |
1.8 |
950 |
81.0 |
11.728 |
||
|
45 |
50% |
3.1 |
1450 |
139.5 |
10.394 |
||
|
45 |
52% |
3.3 |
1550 |
148.5 |
10.438 |
||
|
45 |
55% |
4 |
1750 |
180.0 |
9.722 |
||
|
45 |
58% |
4.8 |
1950 |
216.0 |
9.028 |
||
|
45 |
60% |
5 |
2100 |
225.0 |
9.333 |
||
|
45 |
62% |
5.5 |
2250 |
247.5 |
9.091 |
||
|
45 |
65% |
6.3 |
2450 |
283.5 |
8.642 |
||
|
45 |
68% |
7.1 |
2600 |
319.5 |
8.138 |
||
|
45 |
70% |
7.5 |
2750 |
337.5 |
8.148 |
||
|
45 |
75% |
9 |
3050 |
405.0 |
7.531 |
||
|
45 |
80% |
11 |
3350 |
495.0 |
6.768 |
||
|
45 |
90% |
14 |
3900 |
630.0 |
6.190 |
||
|
45 |
100% |
18.5 |
4500 |
832.5 |
5.405 |
||
Parameters:
