M10 Motor for Large Agricultural / industrial drones
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Transportation:
- Air
- Port:
- Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 10000 |
| Supply Ability: | 600/Month |
| Payment Type: | T/T,Paypal |
| Incoterm: | EXW |
| Certificate: | * |
| HS Code: | 8501109990 |
| Transportation: | Air |
| Port: | Shenzhen |

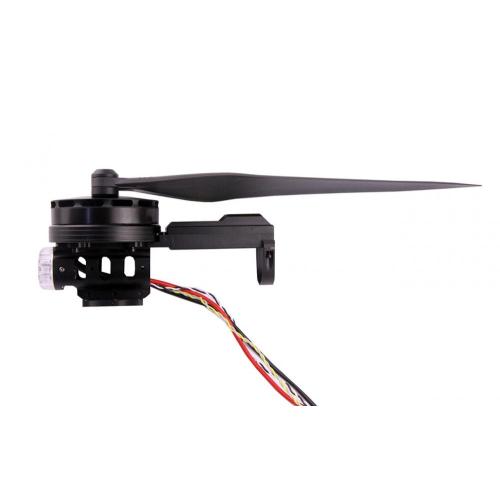

M10 Proplusion System is the heavy loads Drone Motors with ESC and Propeller combo for Agricultural Spraying Drones and industrial application multirotor which use Φ40mm Pipes .The weight is 1040g and Providing 7kg to 10kg /Motor of rated load capacity.Designed with weather-proof. Prevent for corrosion ,rain,salt spray. And centrifugal cooling system bring higher efficiency of the cooling. It adds reliability and enable for continue running. ESC has locked rotor protection too keep safty, and components self-checking, if the motor detected the components problem it wont unlock motor.
M10 Motor Combo integrated with 120A FOC ESC and 34*128 Folding Propeller for quad copter allow takeoff weight up to 38kgs.Work with Quad Copter 16L to 20L spraying drone or Hexa Copter with 25L payload.
match perfectly X1400 20L/16L quad copter Agricultural drone and V1650HZ 20L/25L Hexrcopter spraying drone.
-------------------------------------------------------------------------------------------------------------------------------------------------------
Parameters:
|
JMRRC Motor Parameters Model：M11 (10010) |
|||||||
|
Technical Data |
|
||||||
|
KV |
110 |
||||||
|
Configu-ration |
36N40P |
||||||
|
Stator Diamter |
100mm |
||||||
|
Stator Length |
10mm |
||||||
|
Shaft Diameter |
12mm |
||||||
|
Motor Dimension(Dia.*Len) |
Ø113*107.9mm |
||||||
|
Weight(g) |
1040 |
||||||
|
Idle current(10)@20V(A) |
1.4 |
||||||
|
No.of Cells(Lipo) |
12~14S |
||||||
|
Max Continuous Power(W)180S |
3500 |
||||||
|
Internal Resistance |
60mΩ |
||||||
|
Max Current(180S) |
65A |
||||||
|
|
|||||||
|
Prop |
Voltages |
Throttle |
Load Currency |
Pull(g) |
Power(W) |
Efficiency(g |
Temperature(in full throttle |
|
34*128 |
58.8 |
40% |
2.8 |
2478 |
164.6 |
15.051 |
|
|
45% |
4.5 |
3351 |
264.6 |
12.664 |
|||
|
50% |
6.7 |
4410 |
394.0 |
11.194 |
|||
|
55% |
9.4 |
5745 |
552.7 |
10.394 |
|||
|
60% |
13.1 |
7025 |
770.3 |
9.120 |
|||
|
65% |
17.6 |
8609 |
1034.9 |
8.319 |
|||
|
70% |
23.5 |
10163 |
1381.8 |
7.355 |
|||
|
75% |
30.3 |
11862 |
1781.6 |
6.658 |
|||
|
80% |
38.6 |
13573 |
2269.7 |
5.980 |
|||
|
85% |
49.8 |
15591 |
2928.2 |
5.324 |
|||
|
90% |
53.2 |
16651 |
3128.2 |
5.323 |
|||
|
95% |
53.6 |
15730 |
3151.7 |
4.991 |
|||
|
100% |
56.6 |
15529 |
3328.1 |
4.666 |
|||
|
34*128 |
48 |
40% |
4.8 |
3692 |
230.4 |
16.024 |
|
|
45% |
7.5 |
4880 |
360.0 |
13.556 |
|||
|
50% |
11.1 |
5916 |
532.8 |
11.104 |
|||
|
55% |
15.1 |
7244 |
724.8 |
9.994 |
|||
|
60% |
21.0 |
8838 |
1008.0 |
8.768 |
|||
|
65% |
27.7 |
10155 |
1329.6 |
7.638 |
|||
|
70% |
36.2 |
11974 |
1737.6 |
6.891 |
|||
|
75% |
45.6 |
13570 |
2188.8 |
6.200 |
|||
|
80% |
59.9 |
15886 |
2875.2 |
5.525 |
|||
|
85% |
63.6 |
16220 |
3052.8 |
5.313 |
|||
|
90% |
63.7 |
16256 |
3057.6 |
5.317 |
|||
|
95% |
64.4 |
15818 |
3091.2 |
5.117 |
|||
|
100% |
65.7 |
15618 |
3153.6 |
4.952 |
|||
