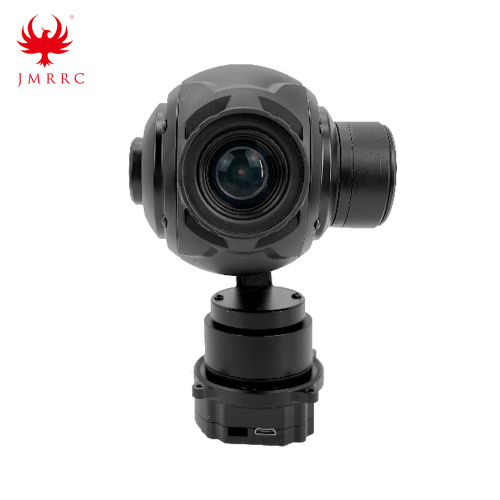

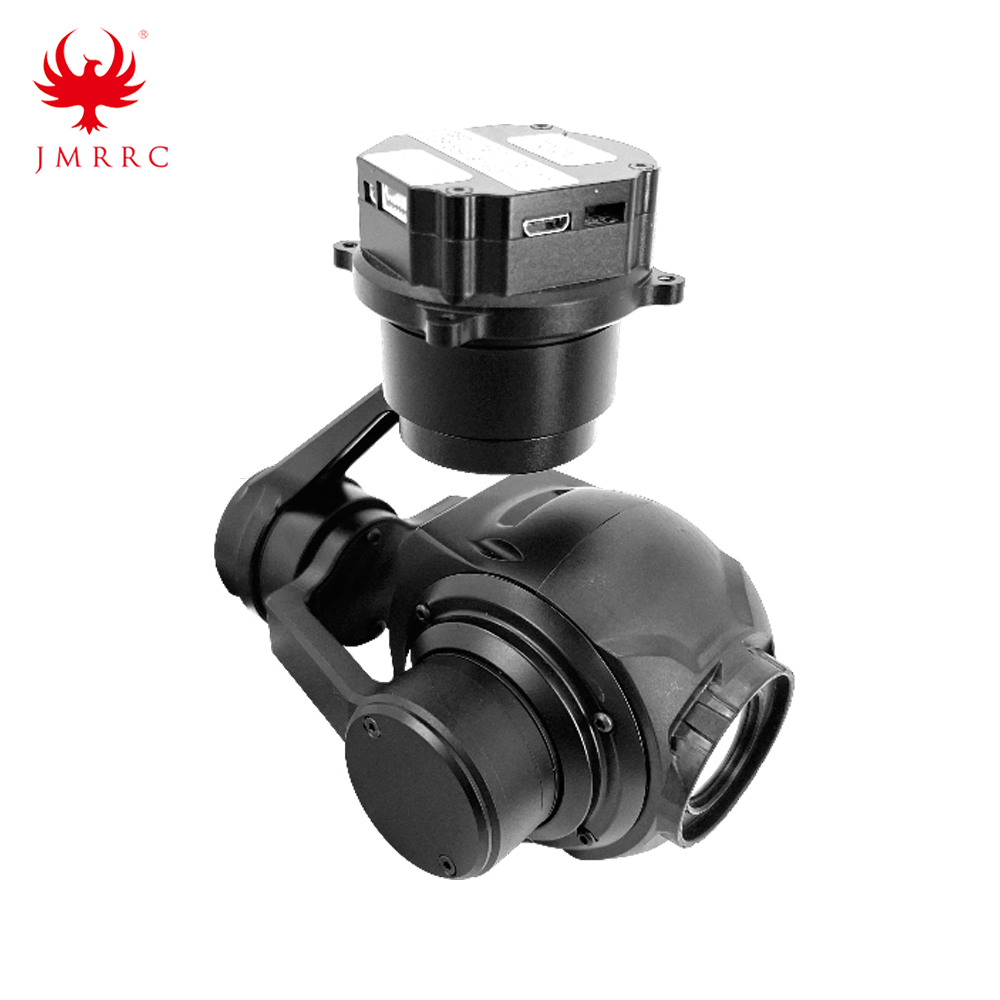

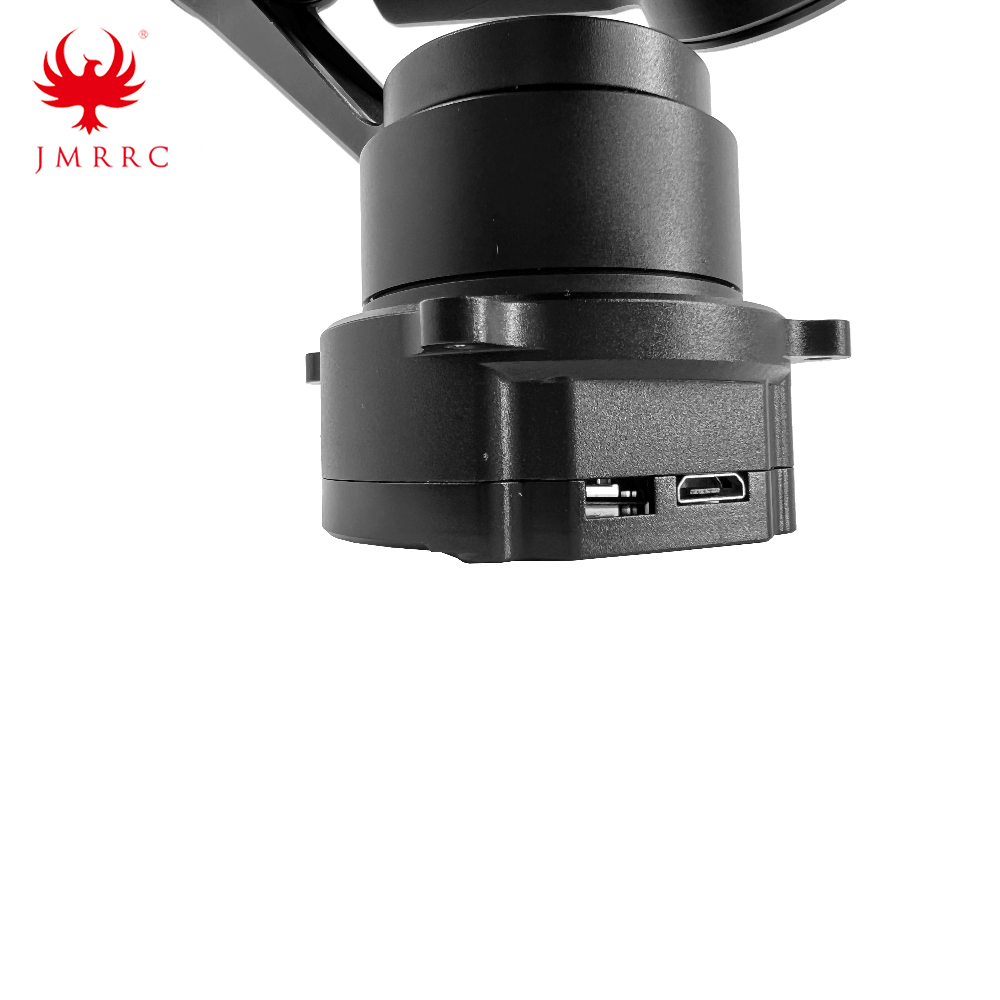

10X 2K IP Net Output 3-Axis stabilize gimbal

 JMRRC 10X 2K IP Net Output 3-Axis stabilize gimbal 10X Optical 8X Digital zoom camera TF card video record photo storage TQ10N .

TQ10N Technical Specifications

• 10x Optical zoom,8x Digital zoom,TF card video record and photo storage.
• IP net output,2K RTS Pstream
• 3-Axis stabilized gimbal,IP,SBUS,UART control and scalable PWM control
• Ground soft ware video display & control system

Working Status:

Roll angle action range : -65~+65°

Controllable Yaw Angle : -135° to +45° C

Yaw angle action range : 600 degree rotation

Angle jitter in pitch androll direction : ±0.02°

Visible Light Camera :

CMOS Size : 1/3 inch 4 mega pixel CMOS SENSOR

Optical Zoom: 10x Optical zoom lens,f=4.9 to 49mm

Digital Zoom : 8X Digital Zoom

Focusing Time : Real time fast focusing function,focusing time < 1S

Field Angle (FOV) : D: WIDE 66.6º±5% TELE 7.2º±5%

                                H: WID E54º±5% TELE 4.9º±5%

                                V: WIDE 31º±5% TELE 4º±5%

Support Mode : 2K 30fps /1080P 30fps video storage IPNET RTSP code stream

Device size ; 77mm×105mm×147mm

Weight : 375±10g

Package included :

10X 2K IP Net Output 3-Axis stabilize gimbal  *1SET

Connecting line* 1set

Screw * 1 Bag
