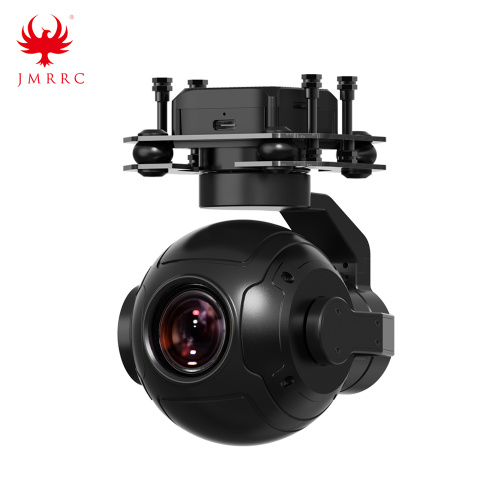

ZR10 2K QHD 30X Hybrid Zoom Gimbal Camera
- Min. Order:
- 1 Set/Sets
- Min. Order:
- 1 Set/Sets
- Transportation:
- Land, Air, Express
- Port:
- Shenzhen
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | China |
|---|---|
| Productivity: | 3000 |
| Supply Ability: | 300/Month |
| Payment Type: | T/T |
| Incoterm: | EXW |
| HS Code: | 8521909090 |
| Transportation: | Land,Air,Express |
| Port: | Shenzhen |
Product Description
Product Description
ZR10 Technical Specifications：
Overall
Model: ZR10
Video Output Port: Ethernet
Control Signal Input Port: S.Bus / PPM / UART / UDP
Working Voltage: 11 to 25.2 V
Power Consumption: 3 W
Working Temperature: -10 ~ 50 ℃
Waterproof Level: IP4X
Dimension: 121*101*78 mm
Weight: 381 g
Gimbal
Angular Vibration Range: ±0.01°
Controllable Pitch Angle: -90° to +25°
Mechanical Pitch Angle: -135° to +45°
Controllable Yaw Angle: -45° to +45°
Mechanical Yaw Angle: -90° to +90°
Camera
Lens: 10X Optical Zoom (30X Hybrid Zoom)
Focal Length: 5.15±5% to 47.38±5% mm
Minimum Focus Distance: 200 mm
Image Sensor: 1/2.7”-inch, 4 MP effective resoultion
Aperture: F1.8 to F2.5
FOV: Diagonal 79.5°, Horizontal 71.5°
TF Recording Resolution: 2K (2560*1440) @ 30 fps
Video Storage Bitrate: 12 Mbps
File Storage Format: FAT32
Image Format: JPEG
Video Format: MP4 (Recorded in H265, *auto converted to MP4 after restart)
Supported MicroSD Cards: MicroSD Class10, Max 128GB
Still Photography Mode: Single
Metering Mode: Evaluative metering
Mark
Features marked with "*" are in development and can be updated later by firmware.
Package included :
ZR10 2K 4MP QHD 30X Hybrid Zoom Gimbal Camera *1SET
Connecting line* 1set
Screw * 1 Bag
