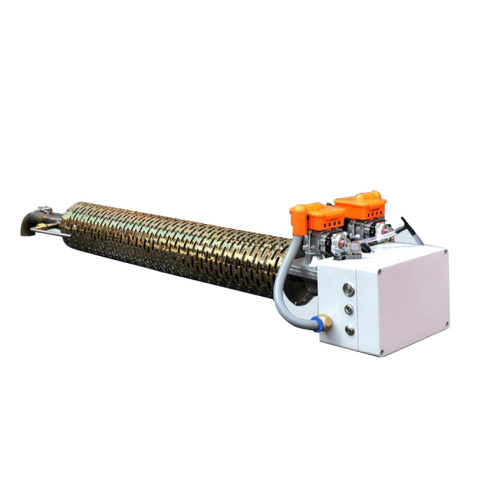

Fog Machine For Drone

M5 Drone Mist Fumigate System is an agricultural spray system specially designed for fruit trees and vineyards. adopts unique patented low-temperature atomization technology, which is silent and vibration-free during work.The M5 Mist Generator use the fule of Gasoline. 1L/minutes fogging generatation.  One key start. M5 Smoke Sprayer main engine body is made of high-grade aluminum alloy and stanless steel，Not only reduce the weight of the fuselage, but also ensure the strength. Aqueous agents, emulsion agents,, and aqueous emulsion agents, can be used. Suspending agents are not recommended, and powders are not supported.  drone Smoke Sprayer System and drone spray system can work at the same time, 2 systems work at the same time for better prevention and control effect.

Smoke Sprayer is suitable for all kinds of fruit trees (citrus, apple, kiwi, cherry, walnut tree), economic crops (tobacco, sugar cane, cotton and various vine vegetables) and high-stem field crops (sorghum, corn).

For more details of how to operate please download the user manual.

Paramter

• DC Input：Buildin 18650 Battery , No

• Length：920MM

• Width：160MM

• Fuel type：Gasoline

• Fuel Tank Cap.：2.5L

• Ignition type：by remote

• G.W.：4.65kg

Two installation schemes:
1.It can be installed in 18mm/20mm aluminum tube/carbon tube.
2. Fix directly to the flat panel (no fixture required)

Principles of work:

When M 5 intelligent fogging machine works, the high temperature and high pressure airflow produced by the pulse jet engine is ejected from the nozzle outlet at high speed. After opening the valve, the pressure in the medicine box will press the liquid into the burst tube, mixed with high temperature and high speed airflow. In the instant of meeting, the liquid was crushed and atomized into a smoky spray from the nozzle and quickly diffused. (It's not the high- temperature solution that heats up the liquid, which produces fumes from the steam.in this case, High-temperature heating can damage the efficacy. Exactly, it is the liquid into the machine after a few seconds to eject, just like the bullet firing principle. The gunpowder in the shell exploded violently, beating the bullet out in an instant, without losing its efficacy) The atomization effect of the liquid is good, which has strong penetration, particles less than 50 microns. There was a wide spread of smog surrounding crops and places ,360 degrees without dead angle, the drug is directly in contact with the pest bacteria. Give full play to its efficacy The pest control rate is very high. It plays the best effect of all-round sterilization and insect control. The particles of  the drug are small, so they float in the air for a long time, so that the pesticide has the dual effects of fumigation and disinfection. It is an ideal product for agricultural spraying pesticides, health and epidemic prevention, forest epidemic prevention, disinfection
