4CH/8CH 1080P Full HD Video Quality
- Min. Order:
- 10 Set/Sets
- Min. Order:
- 10 Set/Sets
- Transportation:
- Ocean, Land, Air, Express, Others
- Port:
- She Kou, Yan Tian
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Shenzhen, China |
|---|---|
| Productivity: | 100000 |
| Supply Ability: | 100000 |
| Payment Type: | L/C,T/T,Paypal,Others |
| Incoterm: | FOB,CFR,CIF,EXW |
| Certificate: | ISO9001 |
| Transportation: | Ocean,Land,Air,Express,Others |
| Port: | She Kou,Yan Tian |

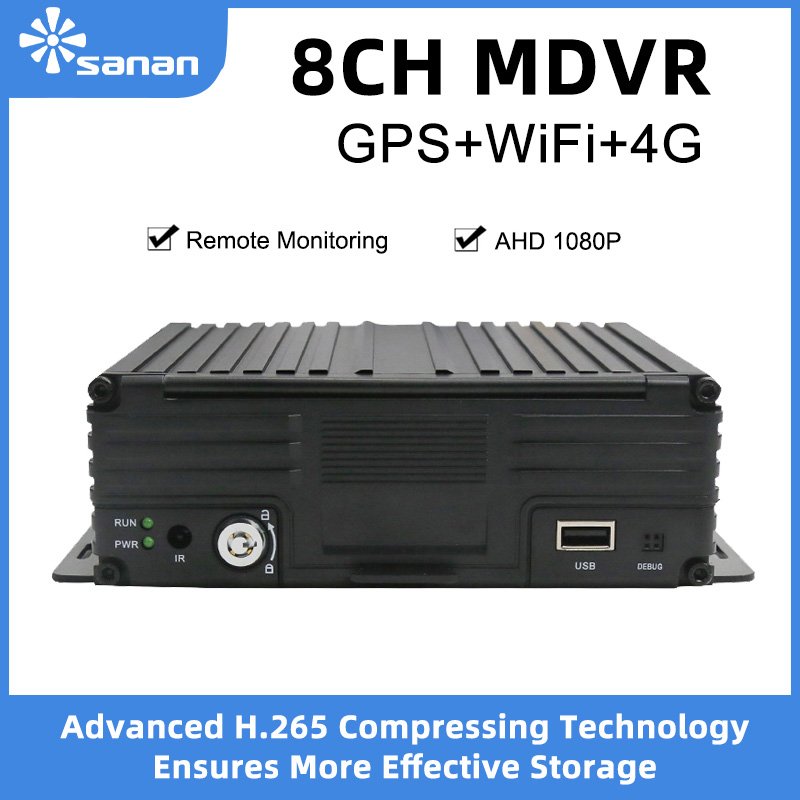

8CH 1080P HDD/SSD Vehicle MDVR
Sanan 8-channel intelligent high-definition waterproof Mobile dvr all-in-one system adopts H.264/H.265 compression technology, supports real-time remote monitoring, and can achieve more intelligent and comprehensive vehicle management! At the same time, the intelligent MDVR (full name: Mobile Digital Video Recorders，commonly known as car DVR) adopts multi-core processor and powerful neural network inference engine, and integrates algorithms such as ADAS, DMS, BSD, 360 panorama, etc. One MDVR can be matched with a variety of powerful all-in-one systems to realize the integration of vehicle video recorders with ADAS. And DMS, 360 panoramic driving assistance system or blind spot detection system, you can further ensure safe driving without additional installation, which greatly saves cost and installation time!
1080P Intelligent 8CH MDVR Integrated with DMS & FCW System, professional and reliable fleet management solution.
Mobile DVR for Vehicles Features：
★ Equipment technical features:
The vehicle dvr adopts high-performance H.264/H.265 encoding standard
High compression ratio, suitable for narrowband wireless transmission
★ Industrial Level of Anti-vibration
Specilized HDD case design protects all the data can be stored securely, and make sure every details can be recorded even in accidents.
★ Standard Aviation Port For All Connections
Aviation port can provide stable connections between cameras and MDVR, which make sure all the functions would not be affected by vibration
★ Built-in Wireless Modules
Support LAN/3G/LTE/WIFI for network, and built-in GPS module,
Further, G-sensor can be used to monitor the driving behaviors.
★ Wide range of applications
It is used for buses, subways, trains, long-distance buses, taxis, logistics vehicles, private cars, special vehicles (such as cash transport vehicles) power supply, severe interference and dust in harsh vehicle-mounted mobile environments such as movement, severe vibration, and unstable power. . and other fields of mobile video surveillance.
Car DVR Monitor System Product Description：
● Supports 8CH AHD 1080P cameras and 4CH 1080P IPC;
● Industry leading CPU with powerful processing ability;
● Support 1*2TB HDD and 1*256GB SD card;
● Support HD video output (VGA port for optional);
● Robust design: Cast aluminum enclosure. Patented design;
● Selected industrial power chipsets, support 8-36V wide range power input, adapt to harsh environment;
● Support external Fireproof box, to backup data in extreme scenarios;
● Dual streams for local recording and wireless transmission;
● Support 3G/4G, Wi-Fi, GPS modules;
● Built-in G-sensor for harsh acceleration/deceleration detection;
● Data self-protection, save data when shut down abnormally.
Product Parameter:
Item
Equipment parameter
performance standard
Name
Model
8CH MDVR /MNVR
System
Product Name
8 Channel Mobile DVR(HDD)
Operation System
Linux
Operation Interface
Graphical Interfaces, Chinese/English/Portuguese/Russian/French/Turkish optional
File System
TES Proprietary Format
System Privileges
User Password
Video
Video Input
8 *1080P/720P/960H(AHD/IPC)
Video Output
1 Channel PAL/NTSC Output, 1.0Vp-p，75Ω，Pin Aviation Connector
1 Channel VGA Support 1920*1080，1280*720，1024*768 Resolution
Video Display
1 /4 /8 Screen Display
Video Standard
PAL:25frames/Sec; NTSC:30frames/Sec
System Resources
PAL:200 Frames; NTSC:240 Frames
Audio
Audio Input
8 Channels Independent Input 600Ω
Audio Output
1 Channel
Recording Mode
Sound And Image Synchronization
Audio Compression
G711A
Digital
Image Compression
H.264/H.265
Image Format
8*1080P/720P/960H
Video Stream
192K-4.0Mbit/s
Video Taking Up Of Hard Disk
85M-1800MByte/hour
Playback Resolution
1080P
Audio Bitrate
4KByte / s / channel
Audio Taking Up Of Hard Disk
14MByte / hour / channel
HDD Storage
1*HDD，maximum support 2TB
SD card
1*SD, Support 64GB/128GB/256GB
Image Quality
14 levels adjustable
Alarm
Alarm input
12 Channels Independent Input. High Voltage Trigger
Analog alarm input
2 channels analog alarm input
Alarm out
3 Channels Independent output(2 relay,1 DC 12v output)
Move Detect
Available
USB
Host Access
2xUSB (front USB3.0)
eSATA
E-SATA
Support backup files via E-SATA port
LAN
Wire line Access
Can Expand One RJ45 Ethernet Port
Wifi
Can Expand One Wifi Module Inside
3G/4G
Can Expand two FDD-LTE/TD-LTE/WCDMA/CDMA2000 Modules Inside
GPS
GPS
Can Expand GPS/GLONASS Module Inside
Extension
RS232
3*RS232,they are convenient to connect with other vehicle equipment
RS485
2*RS485, they are convenient to connect with other vehicle equipment or PTZ Camera
Pulse speed
One channel pulse speed
Intercom
Can Expand Intercom Module Inside
G-Sensor
Can Expand G-Sensor Module Inside
Canbus
Can Expand 2*Canbus Module Inside
Amplicate Interface
Support 2 amplifier, 1 Inside bus, 1 Outside bus(default non-standard, Need to select O function)
Other
Power Consumption
DC8-36V 5%≤12W
Working Temperature
-40℃~ +70℃≤80%
Dimension
235（L）*190（W）*80（H）mm（with Holder）
Net Weight
3.2KG(without HDD)/unit
Gross Weight
3.4KG(without HDD)/unit
processing
and storage
