SA-MH3104F is a high-performance, high- expansion product specially developed for in-vehicle video surveillance and remote video surveillance. etc. technology. H15Hv has a compact structure, elegant appearance, and easy installation and use. It is a basic product for lightweight applications. It is suitable for public long distance passenger transportation, road inspection and other automotive mobile monitoring fields.
Product Features
【H.264/H.265】Support dual compression, improving the usage of storage space and wireless network traffic【Video recording function】Support multiple modes of triggering recording, such as boot triggering recording, timing triggering recording, motion triggering recording, etc., and support 10 seconds of pre-record, convenient to obtain evidence
【Fleet management】PC/mobile terminal remote real-time monitoring, historical track and video query, dangerous events can be uploaded to the vehicle monitoring platforms to achieve efficient fleet management
【Power Failure Protection】External power failure can maintain system operation for 2 seconds
【Support API expansion】MDVR can be linked to the server to provide API for customers to realize the docking with customer systems.
【Convenient operation】Support IR remote control, and flat human-device interaction interface, convenient for customers to operate
【Multi-function access】Integration for Radar, OBD, voice intercom, speed, tire pressure, fuel consumption, temperature, door switch, vehicle weight, vibrator and other sensors access is available
（Product Size）
Product Specification Parameters
|
project |
Parameter Description |
|
|
Audio and video input |
video input |
AHD input: 4ch 1080P , maximum frame rate 120fps |
|
audio input |
2 audio inputs |
|
|
Audio and video output |
video output |
Default 1 CVBS output (VGA output optional) |
|
voice output |
1 channel voice output |
|
|
Audio and video parameter coding |
video encoding |
H.264 Main Profile/H.265 |
|
Video resolution |
1080P/720P/D1 optional |
|
|
audio coding |
Default G.726, G.711A optional |
|
|
storage |
SD card |
Support 1 SD card |
|
wireless network |
4G wireless |
Support 1 SIM card, optional: all mainstream communication modules in the world |
|
Targeting |
Beidou/GPS |
Support hybrid positioning, speed detection, time synchronization |
|
interface |

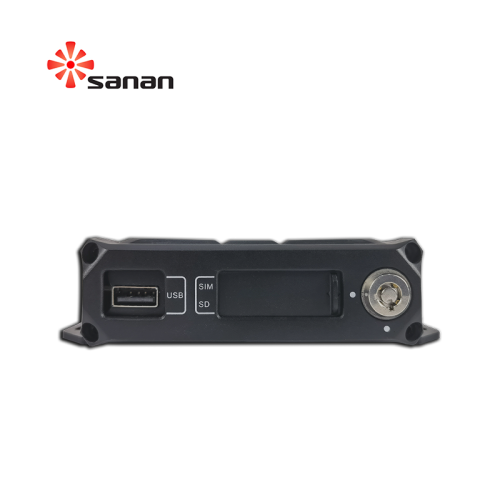

USB |
1 USB interface, support exporting data |
|

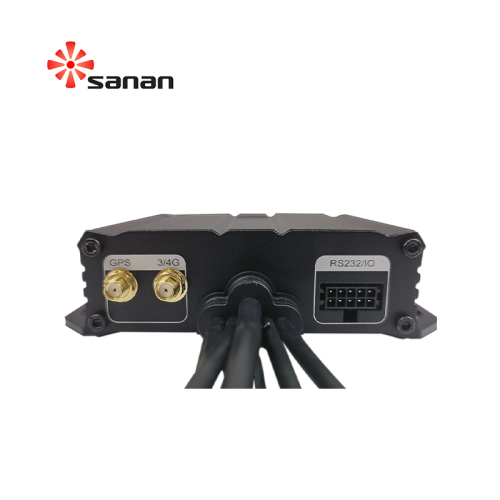

serial port |
Support 1 RS232, optional 1 RS485 , external sensor |
|
|
I/O |
4 switch inputs, compatible with 1 analog input |
|
|
network port |
Optional |
|
|
Physical Specifications |
size |
100 mm (L) * 1 20.8 mm (W) * 32 mm (H) (excluding tail) |
|
weight |
Bare metal: 0.6 kg FCL: 0.8kg (with M 15 Hv -SGNE1-L as standard) |
|
|
working environment |
Operating temperature |
-20～+70℃ |
|
Working humidity |
8%~90% (non-condensing) |
|
|
other |
operating mode |
Remote control, mobile APP, WEB |
|
Gravity Sensing |
Built-in GSensor |
|
|
Configurable AI algorithm |
Temporarily not supported |
|
