1080P HD SD/SSD Mobile DVR voice intercom
-
$240.00≥20 Set/Sets
- Min. Order:
- 20 Set/Sets
- Min. Order:
- 20 Set/Sets
- Transportation:
- Ocean, Land, Air, Express
- Port:
- Hongkong
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Guangdong,China |
|---|---|
| Payment Type: | T/T,Paypal |
| Incoterm: | EXW |
| Transportation: | Ocean,Land,Air,Express |
| Port: | Hongkong |

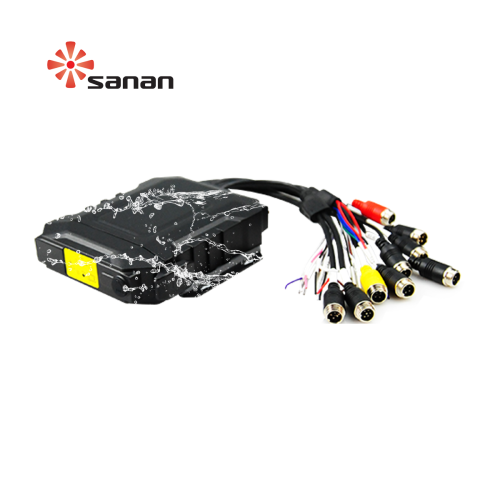

SA-MH5104F series is a high-speed processor and embedded operating system car audio and video monitoring special products, with waterproof, dustproof, strong stability and other main characteristics, suitable for all kinds of buses, sanitation vehicles, passenger bus lights car video monitoring needs
Product Features:
l The interface can operate reliably and stably in complex environments
l Video encoding H.265, H.264 is optional
l Support 4G 、wifi and GPS functional modules
l Supports a 2.5-inch optional SSD/HDD hard disk
l Support two SD cards
l Rich peripheral interfaces
l Support external UPS battery life
l Waterproof dust-proof
Related Solutions:
https://www.sanan-cctv.com/aboutus/48987.html
Order Model:
With 4G, GPS, WiFi modules optional, according to different demands.
GPS: For map, location and route tracking.
4G: For real-time video and monitoring.
Wi-Fi: For automatically downloading video file.
Spec Sheet Download:
https://www.sanan-cctv.com/download.html
Core parameters
|
Item |
parameters |
|
|
Audio and Video Inputs
|
video input |
AHD：4ch 1080/25fps IPC：Scalable 1-4ch |
|
audio input |
4ch audio input |
|
|
Audio and Video outputs
|
video output |
Default 1-way CVBS output (VGA output optional) |
|
speech output |
1ch audio output |
|
|
Audio and video parameter coding |
video coding |
H.264 Main Profile/H.265 |
|
· Resolution |
1080P/720P/D1 optional |
|
|
audio coding |
Default G.726,G.711A optional |
|
|
storage space |
HDD |
1 2.5-inch optional: SSD/HDD hard disk |
|
SD |
Support 2 SD card |
|
|
wireless network
|
4G |
Supports 1 SIM card, optional: all major communication modules in the world |
|
WIFI |
2.4/5.8G optional |
|
|
locate mode |
BD/GPS |
Support for mixed positioning, speed detection, time synchronization |
|
Interface
|
serial port |
Support 1 RS232, 1 RS485, can be connected with external sensor |
|
I/O |
Support 2 level input |
|
|
· Intercom |
1 special intercom handmark interface |
|
|
Physical Specifications
|
size |
154mm（L）*148mm（W）*39mm（H） |
|
weight |
NW：1.05kg GW：1.35kg（SA-MH5104F-TGNE1-L as a standard） |
|
|
work environment |
operating temperature |
-20°C〜 +70°C |
|
operating humidity |
· 10%〜95%（No condensation） |
|
|
Other
|
operator schema |
remote control、APP、WEB |
|
· Gravity sensor |
Built-in G-Sensor |
|
|
Enhanced Version Control
|
USB fire-proof box
|
Video backup special port |
|
I/O |
Add 2 level inputs, 2 analog inputs, and 2 alarm outputs |
|
|
network interface |
Support external IPC, support hybrid NVR function |
|
size
Panel& interface

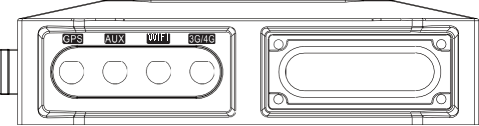

Front panel

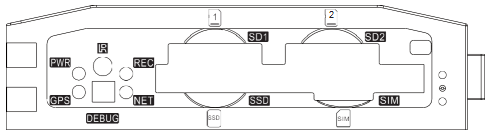

Rear panel
