4 CH double SD card Mobile DVR
-
$148.00≥2 Set/Sets
- Min. Order:
- 2 Set/Sets
- Min. Order:
- 2 Set/Sets
- Transportation:
- Ocean, Land, Air, Express, Hongkong
- Port:
- Hongkong, Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Supply Ability: | 1000set/day |
|---|---|
| Payment Type: | T/T,Paypal |
| Incoterm: | EXW |
| Transportation: | Ocean,Land,Air,Express,Hongkong |
| Port: | Hongkong,Shenzhen |
SA-MH104F is a smart Linux vehicle-mounted device with full HD video recording, built-in AI intelligent algorithm, supporting ADAS, DMS, BSD, 360°. It has a compact and portable design with an aluminum alloy casing, light and tight and good heat dissipation.

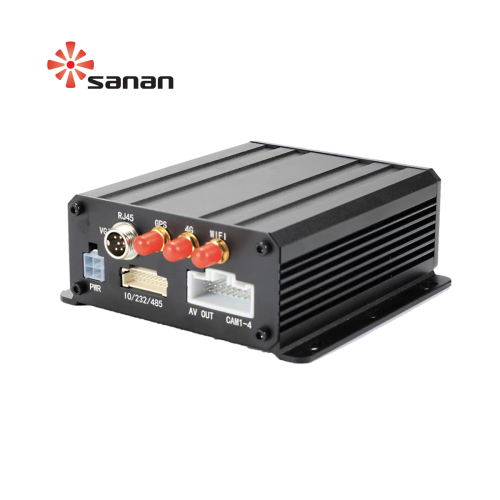

1. Product Picture
2. Product Features
1.APC
2.AI algorithm
3.Video recording function
4.H.264/H.265
5.Video recording function
6.Fleet management
7.Support API expansion
8.Convenient operation
9.Multi-function access
3. Product Function
|
Item |
Parameter |
||
|
Operation |
Language |
Chinese/English |
|
|
System |
Linux |
||
|
Interface |
Graphical menu operation interface (OSD menu) |
||
|
Video Recording |
Video Input |
4-channel 12V video input |
|
|
Video Output |
Support 1-channel CVBS/VGA output |
||
|
Format |
PAL、NTSC |
||
|
Compression Format |
H.264/H.265 |
||
|
Resolution |
Support 1080P、720P、D1、HD1、 CIF |
||
|
Image quality |
Level 1 to 8, Optimum level 1, minimum level 8 |
||
|
Mode |
Default automatic recording, support timed recording, alarm recording, etc. |
||
|
Audio |
Audio Input |
Support 4-channel input, simultaneous recording of sound and video |
|
|
Compression Format |
G.711A |
||
|
Alarm Input |
4-channel switching inputs, 1-channel emergency alarm input |
||
|
Alarm Output |
1-channel switching output |
||
|
Serial Input |
2-channel RS232, optional 1-channel RS232, 1-channel RS485 |
||
|
Wireless Transfer |
Built-in 4G wireless transmission function, TDD-LTE, FDD-LTE |
||
|
WIFI:wireless 802.11b/g/n Communication Module |
|||
|
GPS |
Support external GPS / BD module, can be reported to JT_808 |
||
|
Sensor |
Built-in 3-axis acceleration, optional 6-axis gyroscope sensor |
||
|
Memory Card |
2x Micro SD Card slot, 512GB max |
||
|
Upgrade Method |
Support SD-card、U-disk、FTP remote auto-upgrade |
||
|
Storage Method |
Proprietary bare disk storage method |
||
|
SIM connector |
Support 1 SIM card port |
||
|
Video Playback |
Video Search |
Support search video by video time, video mode and other conditions |
|
|
Video Playback |
Support 1-4 channel playback, support 2, 4, 8, 16 times speed fast forward or backward, pause |
||
|
AI algorithm |
ADAS |
Lane departure detection, pedestrian detection, vehicle distance detection |
|
|
DSM |
Fatigue driving test and unsafe driving behavior test |
||
|
BSD |
Left blind area, right blind area detection |
||
|
360 |
360 surround view |
||
|
APC |
Cooperate with passenger flow cameras |
||
4. Product Parameter
|
Item |
Parameter |
|
|
Power |
Power Management |
Adaptive wide range power input. Protection functions for overload, undervoltage, short-circuit and reverse connection. |
|
|
|
Support timer shutdown and delayed shutdown. |
|
|
Power Input |
DC:+9V ~ +36V |
|
|
Power Output |
+12V@1A，+5V@1A |
|
|
Power Consumption |
Normal working state＜12W（Without peripherals） |
|
Operating Environment |
Temperature |
-20℃ to +70℃ |
|
|
Humidity |
20%~90% |
|
Security Management |
Password Access |
User-password, administrator -password two-level management |
|
Platform Access |
JT/T 808-2011, JT/T 808-2019；T/T 905-2014【Optional】 |
|
|
|
(private or other protocols supported on a pay-per-project basis) |
|
|
Product Dimension |
120*120*46mm |
|
|
Weight |
450g |
|
Available models
SA-MH1104F 4-channel 1080P car SD card video recorder(Basic model)
SA-MH1104F-S 4-channel 1080P car SD card video recorder(GPS model)
SA-MH1104F-SG(EU/AU) 4-channel 1080P car SD card video recorder(GPS+4G model (Europe/Australia))
SA-MH1104F-SGL(EU/AU) 4-channel 1080P car SD card video recorder(GPS+4G(Europe/Australia)+LAN model)
SA-MH1104F-SGW(EU/AU) 4-channel 1080P car SD card video recorder(GPS+4G(Europe/Australia)+Wifi model)
SA-MH1104F-SGW(US) 4-channel 1080P car SD card video recorder(GPS+4G(US version)+WiFi model)
Optional Function
ADAS ： Lane departure detection, pedestrian detection, vehicle distance detection
DSM：Fatigue driving test and unsafe driving behavior test
BSD ：Left blind area, right blind area detection
360 ：360 surround view
APC ：Cooperate with passenger flow cameras
