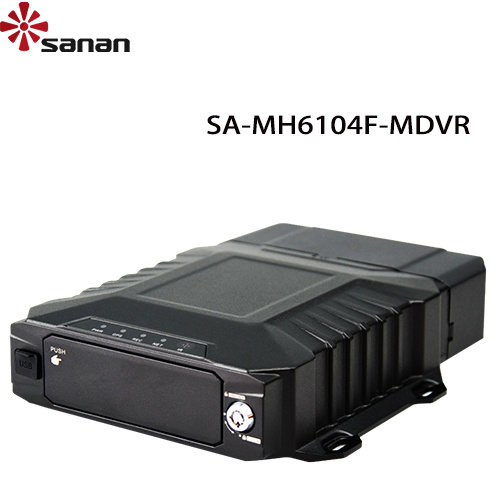

Vehicle Solution System Monitoring SA-MH6104F

GPS 4CH HDD Mobile DVR SA-MH6104F

SA-MH6104F is a cost-effective and high extendibility mobile digital video recorder (MDVR), developed especially for vehicle monitoring and remote video surveillance.  It adopts high speed processor  and embedded Linux system, combined with the most advanced technology of H.265 coding/decoding, 4G network, GPS/BD and WIFI.  It supports 1080p,720p,D1 resolution video recording, vehicle driving record and video remote uploading. With the central software can do central remote monitoring based on alarm linkage, vehicle intelligent dispatch management and playback analysis based on central database. This device is competitive in anti-vibration, more rich function, high reliability, concise appearance and simple to deploy.

Product Features:

1)  Adopt high performance CPU, core ARM Cortex A7 dual core @max.1.3GHz, making the system run faster and more stable.

2) Vehicle-specific interface with good user experience.

3) The recording resolution is up to 1080P, using the latest H.265 digital encoding technology, high coding efficiency and flexible strategy.

4) Supports the AP direct connection function, which can be directly connected to the device through the mobile phone APP to perform parameter setting and other functions on the phone.

5) Supports a 2.5-inch HDD/SSD. The hard disk access mode is bare disk plug-in type. There is no need to add a hard disk box. The hard disk is removed from the pop-up mode. The whole operation is simple and easy to use.

6) The hardware design has a power-off protection function. When the device suddenly powers off, the built-in super capacitor can be enabled to achieve normal shutdown, effectively avoiding the loss of key data.

7) Built-in G-sensor accelerometer, adaptive installation position, no need to manually set, support driver driving behavior detection.

8) All-aluminum alloy case, fanless design, with good heat dissipation.

Accessories:

Related Solutions:
https://www.sanan-cctv.com/aboutus/48987.html

Order Model:

With 4G, GPS, WiFi modules optional, according to different demands.

GPS: For map, location and route tracking

4G: For real-time video and monitoring

Wi-Fi: For automatically downloading video file

Our rugged, high quality mobile DVRs are ideal for monitoring a wide range of vehicles:

It’s designed for various vehicles management, and widely used in buses, coaches, car, construction machinery, taxis, lorries, fire trucks, ambulances, passenger vehicles, etc.
