Car 4-way functional dual SD card Mobile dvr

Car 4-way functional dual SD card Mobile dvr

Get Latest Price

Min. Order:: 20 Set/Sets

Min. Order:: 20 Set/Sets

Transportation:: Ocean, Land, Air, Express

Port:: Hong Kong, Shenzhen

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T,Paypal
Incoterm:	EXW
Transportation:	Ocean,Land,Air,Express
Port:	Hong Kong,Shenzhen

Product Description

MDVR is the abbreviation of Mobile Digital Video Recorder, which is a device used for vehicle monitoring. It can record video around the vehicle through cameras installed on the vehicle and store the video data on the hard drive. MDVR can also be connected with other vehicle monitoring equipment (such as GPS positioning systems, vehicle sensors, etc.) to provide more comprehensive vehicle monitoring functions.

Vehicle monitoring solution refers to a vehicle monitoring solution, which usually includes a system composed of MDVR equipment, cameras, GPS positioning systems, vehicle sensors, etc. This solution can help vehicle managers monitor vehicle location, driving trajectory, driving behavior and other information in real time, and provide relevant alarm functions. Vehicle monitoring solutions can be applied to various scenarios, such as buses, trucks, taxis, etc., to improve the efficiency and safety of vehicle management.

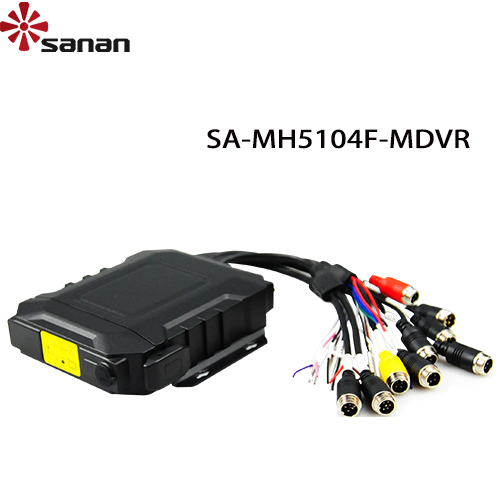

SA-MH5104F series is a high-speed processor and embedded operating system car audio and video monitoring special products, with waterproof, dustproof, strong stability and other main characteristics, suitable for all kinds of buses, sanitation vehicles, passenger bus lights car video monitoring needs

Product Advantage

1.The interface can operate reliably and stably in complex environments

2.Video encoding H.265, H.264 is optional

3.Support 4G 、wifi and GPS functional modules

4.Supports a 2.5-inch optional SSD/HDD hard disk

5.Support two SD cards

6.Rich peripheral interfaces

7.Support external UPS battery life

8.Waterproof dust-proof

Core parameters

Item		parameters
Audio and Video Inputs	video input	AHD：4ch 1080/25fps IPC：Scalable 1-4ch
Audio and Video Inputs	audio input	4ch audio input
Audio and Video outputs	video output	Default 1-way CVBS output (VGA output optional)
Audio and Video outputs	speech output	1ch audio output
Audio and video parameter coding	video coding	H.264 Main Profile/H.265
	· Resolution	1080P/720P/D1 optional
	audio coding	Default G.726,G.711A optional
storage space	HDD	1 2.5-inch optional: SSD/HDD hard disk
storage space	SD	Support 2 SD card
wireless network	4G	Supports 1 SIM card, optional: all major communication modules in the world
wireless network	WIFI	2.4/5.8G optional
locate mode	BD/GPS	Support for mixed positioning, speed detection, time synchronization
Interface	serial port	Support 1 RS232, 1 RS485, can be connected with external sensor
	I/O	Support 2 level input
	· Intercom	1 special intercom handmark interface
Physical Specifications	size	154mm（L）148mm（W）39mm（H）
Physical Specifications	weight	NW：1.05kg GW：1.35kg（SA-MH5104F-TGNE1-L as a standard）
work environment	operating temperature	-20°C〜 +70°C
work environment	operating humidity	· 10%〜95%（No condensation）
Other	operator schema	remote control、APP、WEB
Other	· Gravity sensor	Built-in G-Sensor
Enhanced Version Control	USB fire-proof box	Video backup special port
	I/O	Add 2 level inputs, 2 analog inputs, and 2 alarm outputs
	network interface	Support external IPC, support hybrid NVR function
