Modern High Voltage Battery Cabinet Generator
-
$0.50≥50000 Others
- Min. Order:
- 50000 Wh
- Min. Order:
- 50000 Wh
- Transportation:
- Ocean, Land, Air
- Port:
- HongKong
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 10 sets / month |
| Supply Ability: | 2sets/month |
| Payment Type: | L/C,T/T,Paypal,D/P,D/A |
| Incoterm: | FOB,CIF,EXW,CFR |
| Transportation: | Ocean,Land,Air |
| Port: | HongKong |

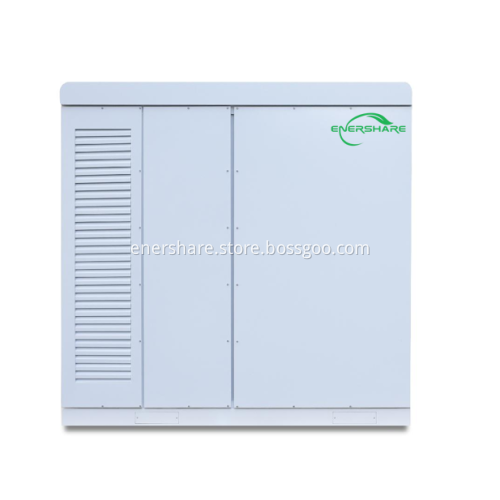

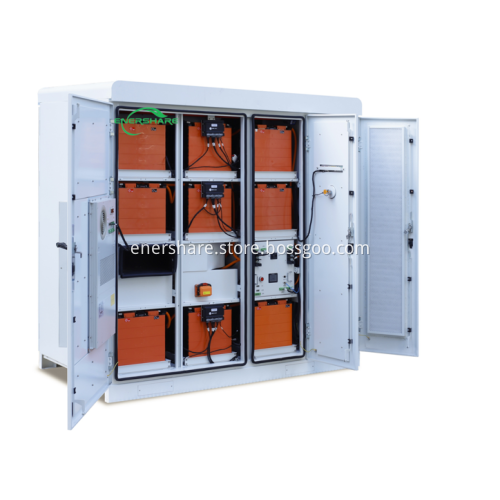

Modern High Voltage Lithium ion Battery Cabinet Generator
Is there anything we need to be aware of when using the outdoor solar battery cabinet? Sure. We need to pay attention to some safety precautions as following. Read and fully understand the operation manual first. If you're not sure what the problem is, please contact us for assistance. Our high voltage battery outdoor cabinet is mantainence free, only professional technitians can open it when necessary . Please use within the rated power range. It's normal if there's certain amount of calorific value when the battery system runs, but to keep the installation environment clean and ventilated, especially do not block the ventilation holes.Do not place any large solar battery system product near or on heating units, air conditioners or exhaust pipes.
Enershare's High voltage battery enegy storage system has these advantages:
1.Four layers of protection design, safe and reliable.
2.Intelligent temperature control to ensure optimal working temperature.
3.Smart fire fighting system, IP55 protection for outdoor use.
4.Support on grid/micro grid mode, and MPPT charging function.
5.Remote monitoring, start/stop button, smart operation, support multiple parallel connection.
This solar plus cabinet energy storage applies to these scenarios: Village,factory,hospital,Mall,school,community,Farm,Mine,mountain,island, government,data center and so on
Battery parameters:
| Cell type | LFP-200Ah |
| Module Model | 1P10S |
| Battery Cluster Configuration | 1P210S |
| System Configuration | 1*1P210S |
| Battery Capacity(BOL) | 150 KWh |
| Battery Voltage Range | 500V-800V |
General Parameters:
System efficiency
≥88%
IP protection rating
IP55
Seismic intensity rating
8 (IEC60980）
Anti-corrosion grade
C4 (optional C5)
operating temperature
-20℃~50℃
relative humidity
0－95% (non-condensing)
working altitude
<2000m
cooling method
battery section:air conditioning / power section:forced air cooling
system efficiency
>88%
cycle life
5 years, more than 2000 times
fire extinguishing media
aerosol (optional tube gas fire FM200/N1230)
fire fighting system
automatic fire extinguishing
communication interface
Ethernet
communication protocols
Modbus TCP/IP
