100kw Hybrid Solar Battery Energy Storage System
-
$0.50≥50000 Others
- Min. Order:
- 50000 WH
- Min. Order:
- 50000 WH
- Transportation:
- Ocean, Land, Air
- Port:
- HongKong, Shenzhen, Guangzhou
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 2 sets / month |
| Supply Ability: | 2 sets/month |
| Payment Type: | L/C,T/T,Paypal,D/P,D/A |
| Incoterm: | FOB,CIF,EXW,CFR |
| Transportation: | Ocean,Land,Air |
| Port: | HongKong,Shenzhen,Guangzhou |

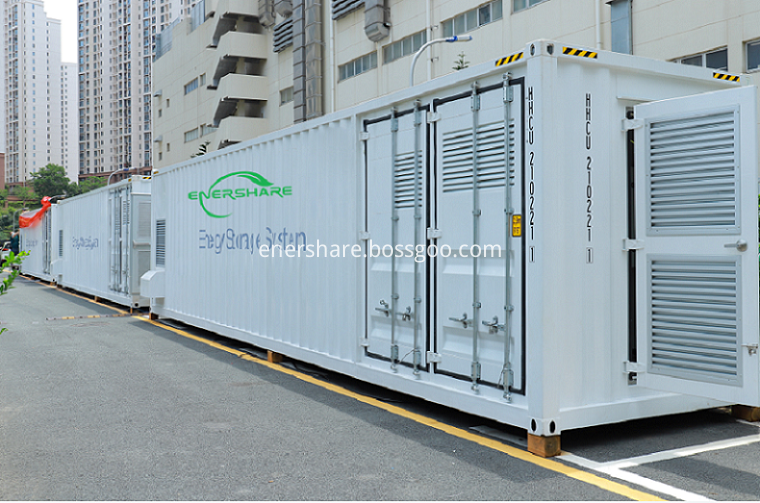

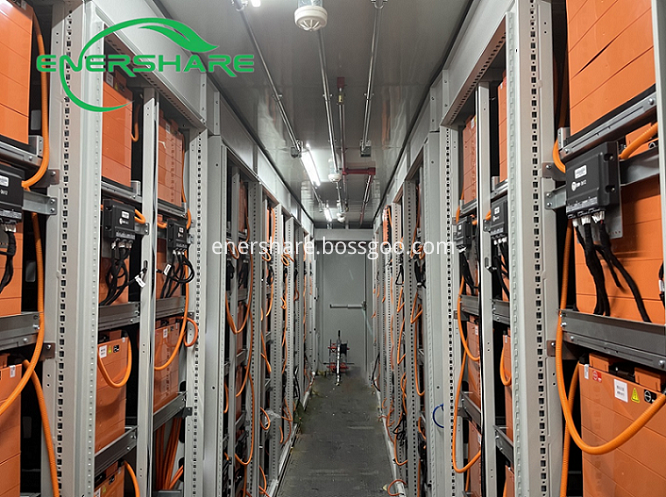

100kw Hybrid Solar Battery Energy Storage System with multiple stacked services
Our BESS adopts Lithium Iron Phosphate chemistry. The lithium ion batteries used for our BESS is the energy storage lithium battery. Well, would you like to know more about the difference between power lithium battery and energy storage battery? Power lithium battery is mainly used for electric vehicles, electric bicycles, electric motorcycles, electric equipment and so on. It can also be used in power transmission and transformation stations to provide switching current for power units. While the energy storage lithium battery pack is mainly used in energy storage power stations such as hydraulic, thermal, wind and solar power stations, peak and frequency modulation power auxiliary services, digital products, power products, medical and security, UPS power supply.,etc.
Our BESS has these features:
1.Superior uniformity and EV grade safety lithium battery cells;
2.System capacity can be formed from 500KWh to Max.4MWh
in one container,multiple containers can be combined into large-scaled BESS.
3.Advanced energy management technology,easy installation ,high round-trip efficiency,customized modular .
4.Reliable system safety design and remote real-time monitoring.
5.Fastest delivery time 6-8weeks.
As a Lithium battery storage power station, it applies to below scenarios:
Commercial,residential or industrial energy backup.
Integrated all-in-one energy storage solutions for Grid Stabilization.
Island or electricity shortage area.
Power and Grid System Load Leveling.
Renewable energy (Solar and Wind) firming.
Remote Off-Grid Power Generation.
Technical solutions:
-
Item
0.3MVA-3MWh
Battery model
E6Y-210Ah
Cooling method
force air
Battery module type
1P10S
Battery capacity(Ah)
210
Single battery rated Volt.(V)
3.2
Single battery energy output (WH)
672
Number of battery cells per cluster
210
Number of battery module strings per cluster
21
Number of battery clusters per container
8
Nameplate energy capacity of each container
1.128
DOD
0.9
Inverter efficiency
0.96
AC 400V usable energy (MWH)
0.974
Number of containers
3
Total energy capacity (MWh)
3.386
AC 400V usable total energy (MWH)
2.293
Item
Capacity specifications
wire type
grid
250KVA
three-phase four-wire
load
200KVA
three-phase four-wire
generator
250KVA
three-phase four-wire
|
Item |
0.3MVA-3MWh |
|
Battery model |
E6Y-210Ah |
|
Cooling method |
force air |
|
Battery module type |
1P10S |
|
Battery capacity(Ah) |
210 |
|
Single battery rated Volt.(V) |
3.2 |
|
Single battery energy output (WH) |
672 |
|
Number of battery cells per cluster |
210 |
|
Number of battery module strings per cluster |
21 |
|
Number of battery clusters per container |
8 |
|
Nameplate energy capacity of each container |
1.128 |
|
DOD |
0.9 |
|
Inverter efficiency |
0.96 |
|
AC 400V usable energy (MWH) |
0.974 |
|
Number of containers |
3 |
|
Total energy capacity (MWh) |
3.386 |
|
AC 400V usable total energy (MWH) |
2.293 |
|
Item |
Capacity specifications |
wire type |
|
grid |
250KVA |
three-phase four-wire |
|
load |
200KVA |
three-phase four-wire |
|
generator |
250KVA |
three-phase four-wire |
