Built in Inverter BMS Solar Lithium Battery

Built in Inverter BMS Solar Lithium Battery

$0.50

≥5000 Others

Min. Order:: 5000 WH

Min. Order:: 5000 WH

Transportation:: Ocean, Land, Air

Port:: HONGKONG, SHENZHEN

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	10000
Supply Ability:	10000
Payment Type:	L/C,D/P,D/A,T/T,Paypal
Incoterm:	FOB,CFR,EXW,CIF,CPT,FCA,FAS
Transportation:	Ocean,Land,Air
Port:	HONGKONG,SHENZHEN

Product Description

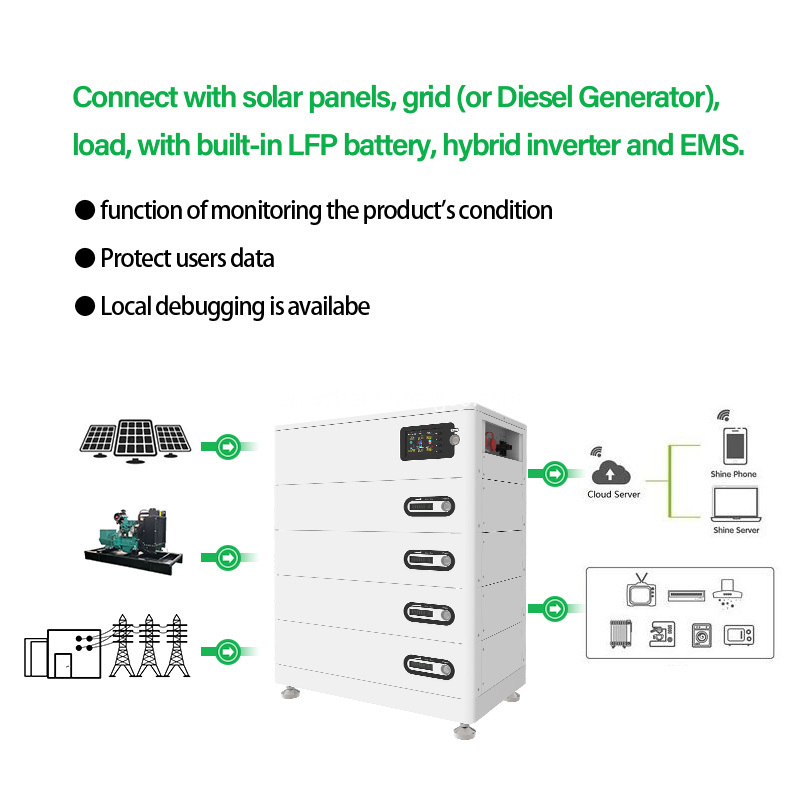

Hybrid All in one solar system household solar energy solution

Built in Inverter BMS Solar Lithium Battery 10kwh 20kwh 30kwh

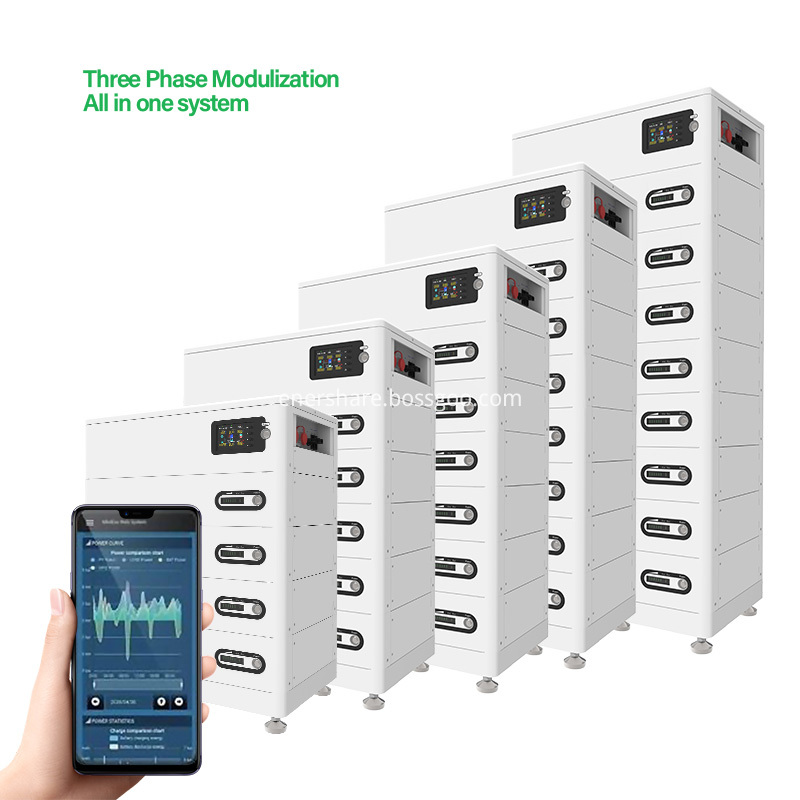

Stacked battery combination, you can make your own combination according to your needs.
Very flexible and convenient.

10kw 20kw All In One Unit 12

Features:

1.It adopts three phase design to meet your requirements on electricity, which is suitable for North America or Japan with the same standards.

2.Working modes can be adjusted automatically and support the off-grid operation.

3.Module can be expended on the limited power and capacity.

4. Hybrid inverter.

5. Intelligent management system.
10kw 20kw All In One Unit 2

10kw 20kw All In One Unit 8

Applications:

Home energy storage system
Back-up energy storage
Commercial energy storage

Battery parameter:

Model	U01-E4	U01-E5	U01-E6	U01-E7	U01-E8
Battery Module	2.56KWH/Module or 5.12KWH/Module
PCS Size and Weight (W×D×H)mm/kg	620×345×360mm / 40KG
Battery Capacity	10.24kWh	12.74kWh	15.25kWh	17.74kWh	20.24kWh
Battery Size (2.56KWH/Pack) (W×D×H)mm Include Inverter	620×345×590	620×345×670	620×345×760	620×345×850	620×345×940
Battery Weight	156Kg	179Kg	212Kg	245Kg	278Kg
Battery Size (5.12KWH/Pack), (W×D×H)mm Include Inverte	620×345×980	620×345×1110	620×345×1240	620×345×1370	620×345×1500
Battery Weight	278Kg	334Kg	390Kg	446Kg	502Kg
Efficiency	93%
DOD	90%
Grid Power	15kW
Grid Voltage/Range	170~280Vac/phase @50Hz/60Hz
Off Grid Power	15KW (220/380Vac±3%; 230/400Vac±3%; 240/415Vac±3%;@50Hz/60Hz)
Battery type	LiFePO4 (Lithium Iron Phosphate)
Max. MPPT Input Power /Voltage Range	(6000W+6000W+6000W) / 450V / 120~430V
Battery	Nominal Voltage	51.2V
	Voltage Range	45~57.6V
	Capacity	10.24KWH ( 2.5kWH*4 )
	Max.discharge rate	1C
	Max.charge rate	1C

10kw 20kw All In One Unit 1
