12V100ah 200ah Deep Cycle Lead Acid Lifepo4 Batteries
-
$399.0010-99 Pack/Packs
-
$379.00100-999 Pack/Packs
-
$359.00≥1000 Pack/Packs
- Transportation:
- Ocean
- Port:
- HONGKONG
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 10000 |
| Supply Ability: | 10000 |
| Payment Type: | L/C,D/A,D/P,T/T |
| Transportation: | Ocean |
| Port: | HONGKONG |

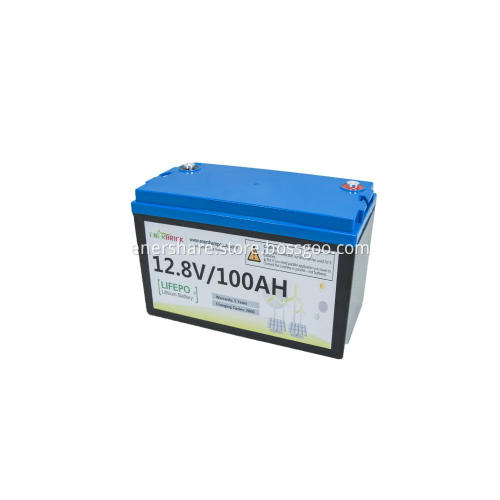

12.8V 100Ah 200AH Lithium Battery
Lithium Iron Phosphate, often referred to as LiFePO4, the chemistry for Power Sonic's Lithium Power Sport batteries . Although it is the newest lithium chemistry, it is still the most common choice for lithium batteries.
Power Lithium Powerpacks can discharge high currents for short bursts and can easily handle a modern cranking sequence.
You can use a lead-acid charger to charge lithium batteries as long as you can set the maximum voltage of the charger and as long as the charger does not have an automatic equalisation mode enabled.
Why we choose LiFePO4 lithium battery?
1.Long life cycles,safe and wide temperature.
2.Highly efficient,small size，no pollution.
3.Standard lead-acid battery case,can replace the lead-acid battery.
4.Light on weight, excellent performance.
|
|
Project
|
Parameter
|
Remark
|
|
Cell
|
Battery Type
|
LiFePO4 Battery
|
|
|
Cell Model
|
Cell Model LF32650-6000
|
|
|
|
Nominal Capacity
|
6Ah
|
Discharge : 0.1C
Cut-off Voltage:2.5V |
|
|
Minimum Capacity
|
5.8Ah
|
Discharge : 0.1C
Cell Cut-off Voltage: 2.5V |
|
|
Nominal voltage
|
3.2V
|
|
|
|
Internal Impedance
|
≤25mΩ
|
|
|
|
Battery Pack
|
Dimension
|
MAX. 32.5x71mm
|
|
|
Weight
|
About 141 g
|
|
|
|
Pack Method
|
4S34P
|
|
|
|
Nominal Capacity
|
200Ah
|
Discharge : 0.1C
Cut-off Voltage:10V |
|
|
Minimum Capacity
|
197.2Ah
|
Discharge : 0.1C
Cut-off Voltage: 10V |
|
|
Nominal Voltage
|
12.8V
|
|
|
|
Energy
|
2560WH
|
|
|
|
Charge Voltage
|
14.6V
|
|
|
|
Discharge cut-off voltage
|
10V
|
|
|
|
Charge Method
|
CC/CV
|
|
|
|
Standard Charge Current
|
15A
|
|
|
|
Max. Charge Current
|
15A
|
|
|
|
Standard Discharge Current
|
20A
|
|
|
|
Max. Continues Discharge Current
|
20A
|
|
|
|
Cycle Life
|
2000 times
|
80% Remained
|
|
|
Internal Impedance
|
≤70mΩ
|
Lead-Acid Enclosure
|
|
|
Dimension
|
L521xW237.9xH217.3mm
|
|
|
|
Output Wire
|
/
|
|
|
|
Output Connector
|
M8 terminal
|
|
|
|
Weight
|
Approx.22kg
|
|
|
|
|
Working Temperature Range
|
Charge: 0°C--45°C Discharge: -20°C--60°C
|
|
|
|
Storage Temperature
|
-10°C--45°C
|
|
Electric Propelling Applications
♦ Engine Starting Battery
♦ Commercial Bus and Transit:
E-car, E-bus, Golf troller/car, E-bike, Scooter, RV, AGV, Marine, Tourist car, Caravan, Wheel chair,
E-truck, E-sweeper, Floor cleaner, E-walker etc.
♦ Intellectual Robots
♦ Power tools: electric drills, toys
Energy Storage
♦ Solar-Wind Power System
♦ City Grid (On/Off)
Back-up System and UPS
♦ Telcom Base, CATV system, Computer Server Center, Medical Instrumnt, Military Equipment
Features:
* Long service life.
* Low self-discharge.
* Environment friendly.
* Good safety performance.
* Maintenance-free operation.
*Broad operating temperature range.
◎When recharging, use the LiFePO4 battery charger specifically for that purpose
◎Do not strike battery with any sharp edge parts, such as Ni-tabs, pins and needles
◎Do not immerse the battery in water and seawater
◎Do not use and leave the battery near a heat source as fire or heater
◎Do not reverse the position and negative terminals
◎Do not connect the battery to an electrical outlet
◎Do not discard the battery in fire or heat it
◎The battery tabs are not so stubborn especially for aluminum tab. Do not bend tab.
◎Do not short-circuit the battery by directly connecting the positive and negative terminal with metal object.
◎Do not transport and store the battery together with metal objects such as necklaces, hairpins etc.
◎Do not directly solder the battery and pierce the battery with a nail or other sharp object.
