lens 14w Linear LED Module for ceiling lights

lens 14w Linear LED Module for ceiling lights product introduction

The package dimming component is a circular arc-shaped plate-like body with a flat top. Linear LED Module Thickness 1.2mm, adopts SMD2835 LED AC linear process, ac led linear module input voltage: AC220-240V, magnet installation, Linear LED Modules 14W net weight 21g, Luminous: 1524 lm, CCT: 2700K/3000K/4000K, No-dimming, lens 14w Linear LED Modules CE RoHS certified specifications are 5W, 9W, 15W, 24W, 35W, For Indoor Lighting, lights in ceiling, bedroom lights, living room lights, kitchen lights, balcony lights, dining lights.

Shenzhen Dianjiang lighting co., LTD., Perfect advanced automated production equipment, strong r & d team, scientific and perfect quality, specializing in the production of led modules, ceiling light Led module, ceiling lights, uvc light, uv lamp, uv sterilizer lamp, uv germicidal lamp, uv disinfection lamp, solar street lights, led downlights, led flat panel.

Warm light lens 14w Linear LED Module Specifications:

Wrking voltage: AC220-240V 50HZ

Module power : 14W

Luminous flux: 1423lm,

Light color: Warm light

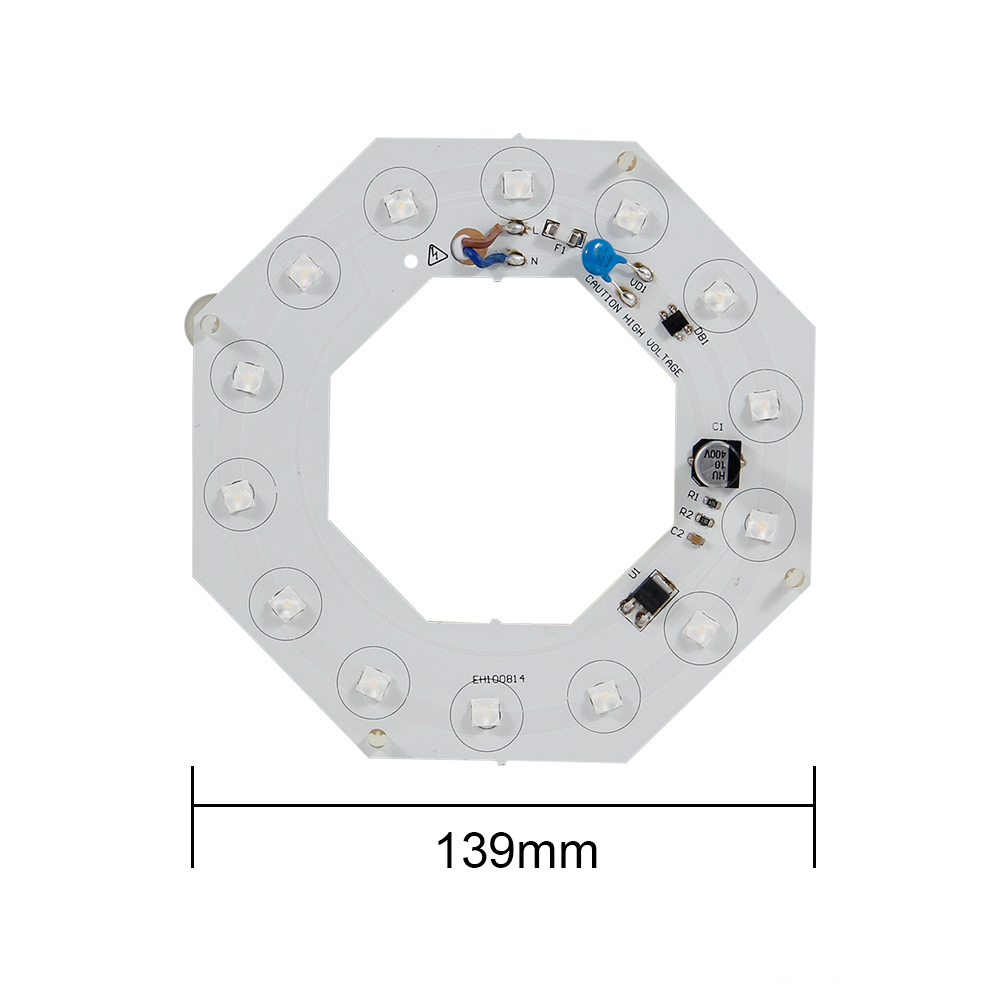

size: round 139mm*1.2mm

Weight: 42 g

No ultraviolet , electromagnetic wave radiation.

CCT: 2700K/3000K/4000K

LED light source has red, green, blue, yellow, white, warm white, three primary colors can be customized according to customer color requirements.

Waterproof: No

SMD type:  LED SMD 2835

color rendering index is more than 80.

lens 14w Linear LED Module video

lens 8w-26w Linear LED Modules for ceiling lights:

1.High homogeneity thanks to small LED pitch LED.

2.With digital design, power saving is up to 80%.

3.Lamp life is 30,000 hours.

4.No need to drive, wiring can be, 3 years replacement, full light, no flash screen.

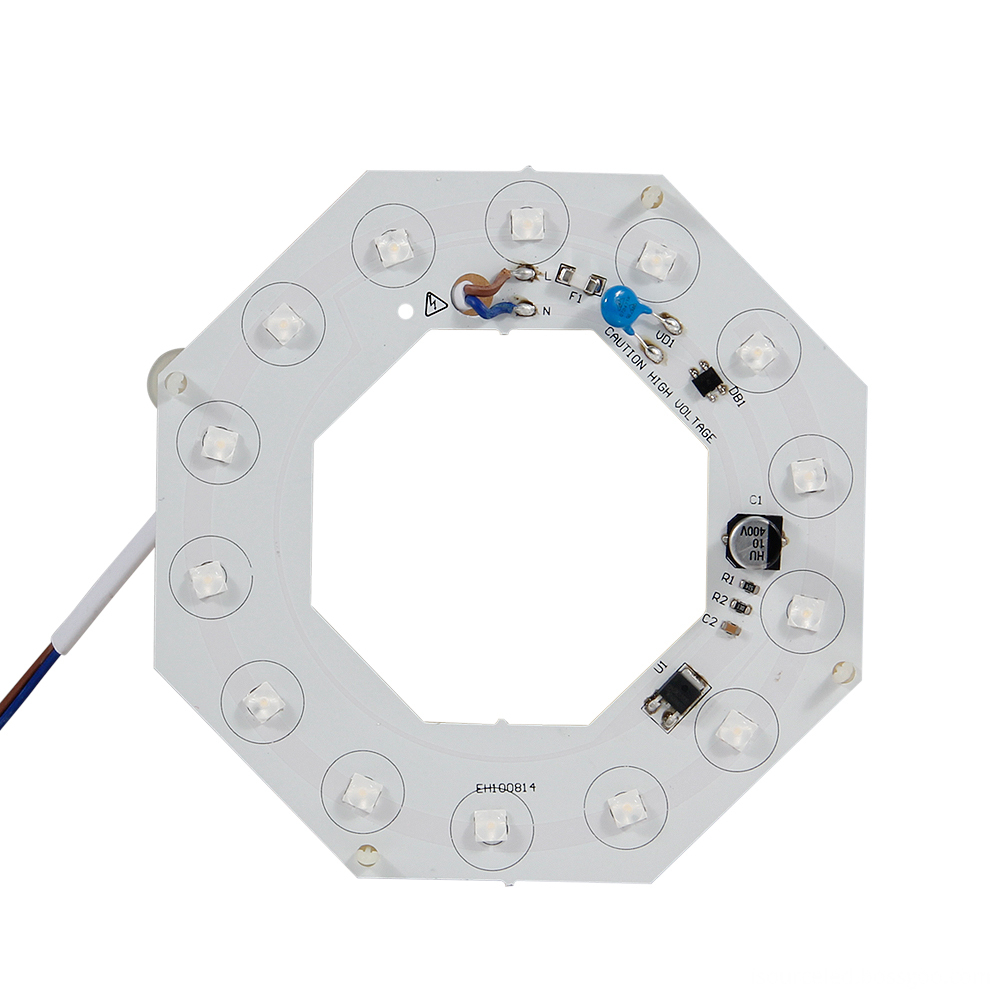

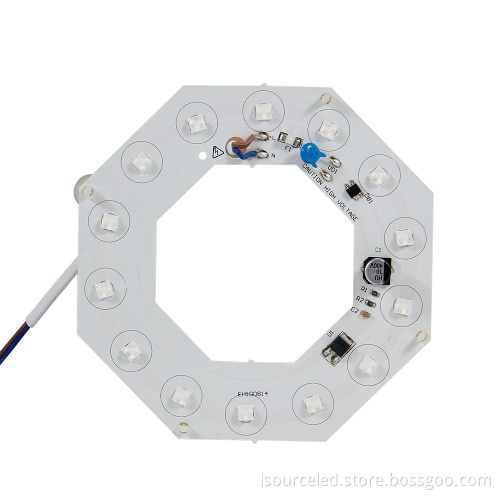

lens 14w Linear LED Module for ceiling lights

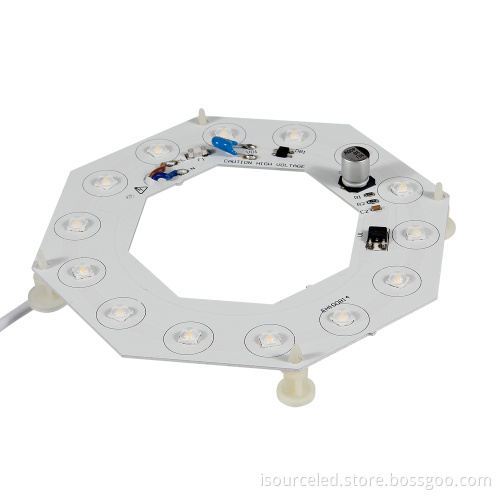

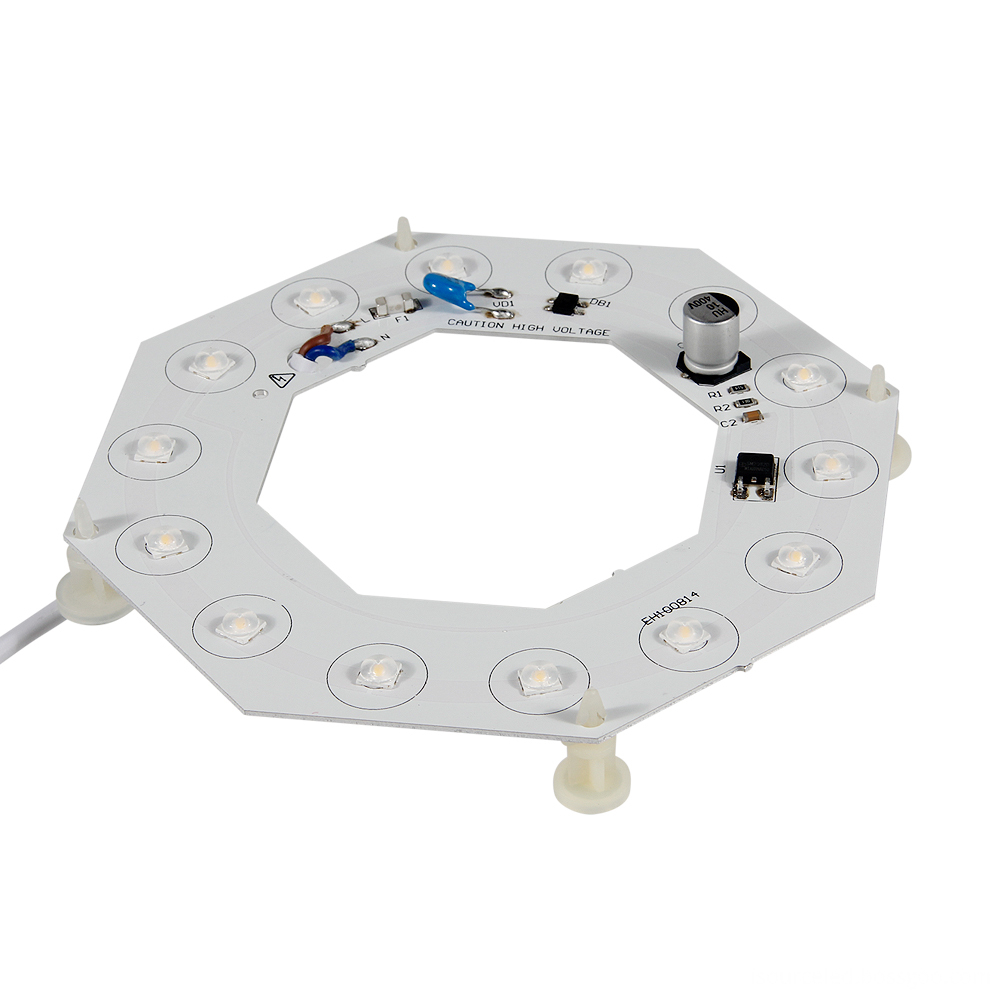

ac led linear module for ceiling lights

lens 14w Linear LED Modules CE certified

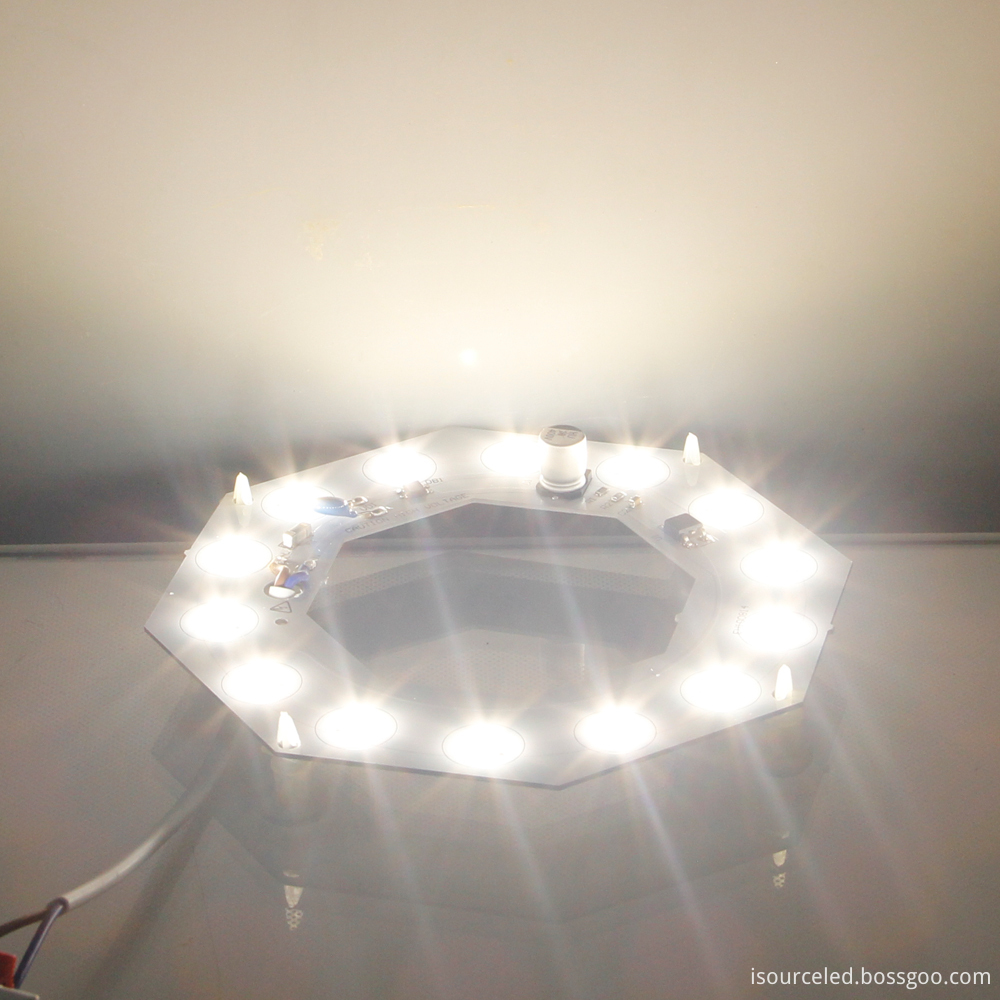

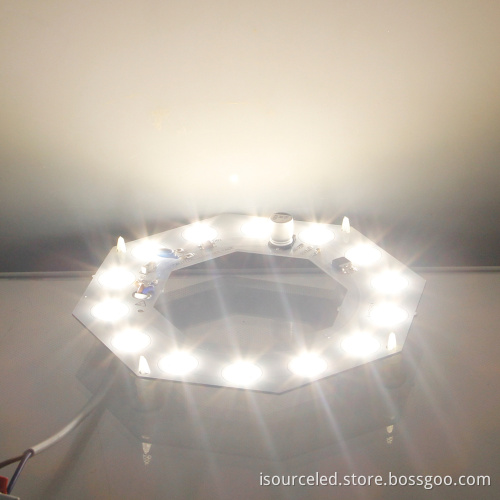

lens 14w Linear LED Modules product power-on luminous diagram

New green light source: LED uses cold light source, ultra low power consumption.

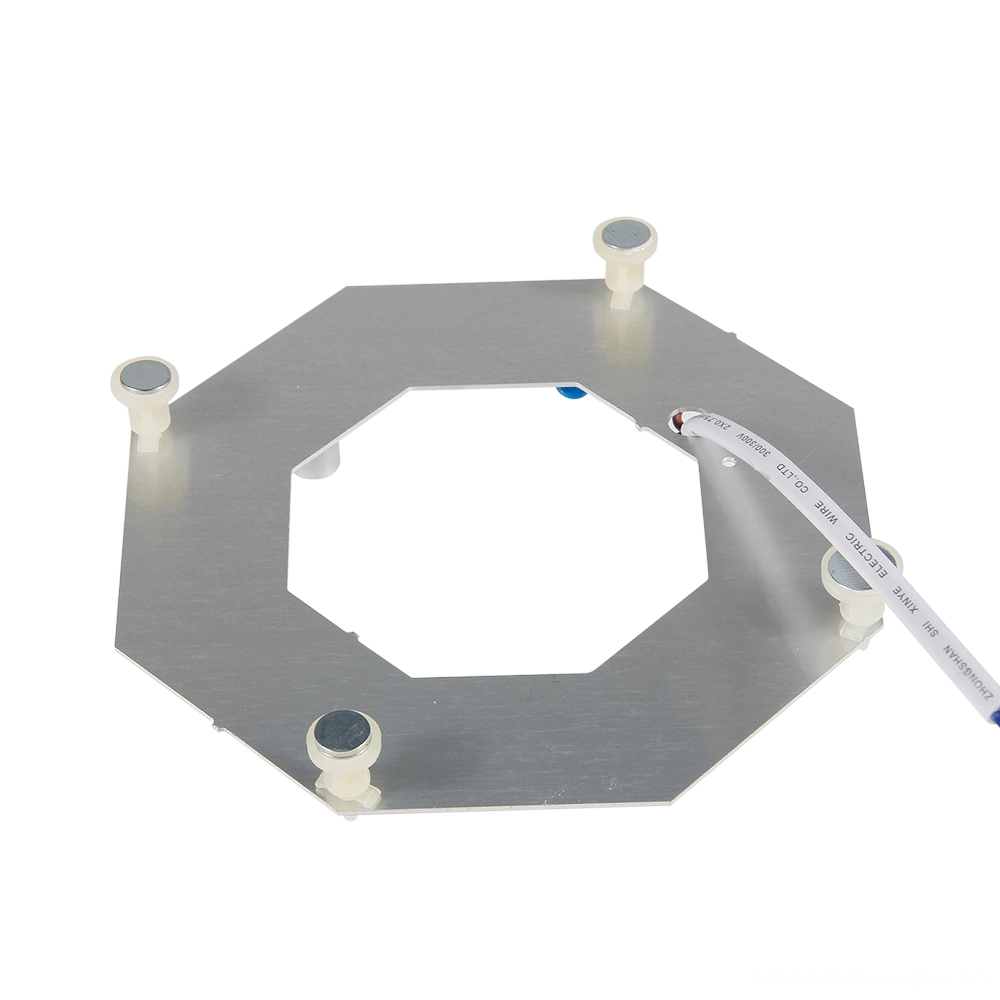

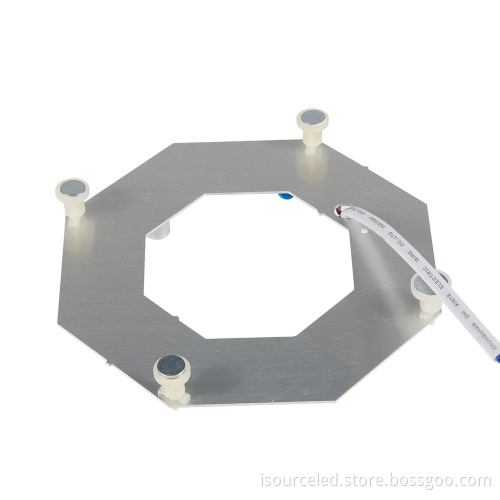

lens 14w Linear LED Module for ceiling lights bottom view

led ceiling light pcb board replacement:

1. Clean the installation surface, evenly apply the heat-conducting silicone grease to the bottom of the LED module, and fix the LED module and radiator with screws.

2. Attach the lens and screw it in place.

3. Ac 220V power supply is introduced for power test.

4. It is recommended to use an insulating gasket at the bottom of the screw.
