220v SCR dimming round 30W AC COB Module

220v SCR dimming round 30W AC COB Module process uses disc light board,Power Factor:0.598, controllable scale series products, model: RS30, current 0.237A, power: 30W, light panel module net weight 210 G, luminous flux 3138 lm, light Efficiency 107.2 lm / w, the 220v SCR dimming round 30W AC COB Module is a whole piece of 1.25MM thick aluminum substrate, size 280 * 1.2mm, using thyristor dimming to replace the LED light dimming, the existing dimmer circuit can be changed, Low power consumption, long service life, main purpose ceiling lamp, panel light product material, ensuring absolutely uniform illumination, no flash screen, very good lighting effect. Suitable for home, residential, dormitory, exhibition window and other places.

Shenzhen Dianjiang lighting co., LTD., Perfect advanced automated production equipment, strong r & d team, scientific and perfect quality, specializing in the production of led modules, ceiling light Led module, ceiling lights, uvc light, uv lamp, uv sterilizer lamp, uv germicidal lamp, uv disinfection lamp, solar street lights, led downlights, led flat panel.

Technical parameters of 220v SCR dimming round 30W AC COB Module

Product features of 220v SCR dimming round 30W AC COB Module:

1. linear constant-current IC control, photoelectric integration, stable performance, reliable, long life.
2. Three-stage integrated circuit design, the power change rate is within ±5% when the input voltage fluctuates
    Between 220-240vac; Constant power over voltage current protection function.
3. Overtemperature protection function, IC will automatically reduce the output current to control the temperature rise of the substrate ,
    When the substrate temperature is too high.

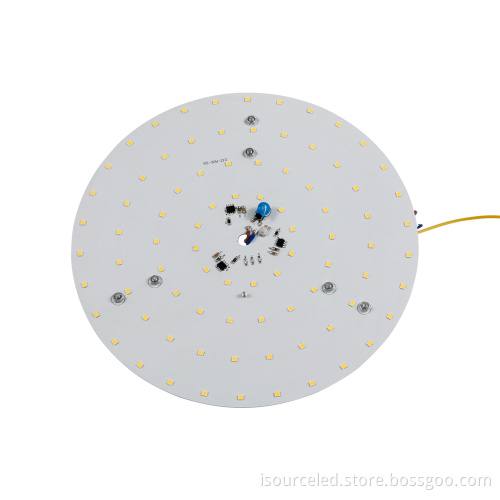

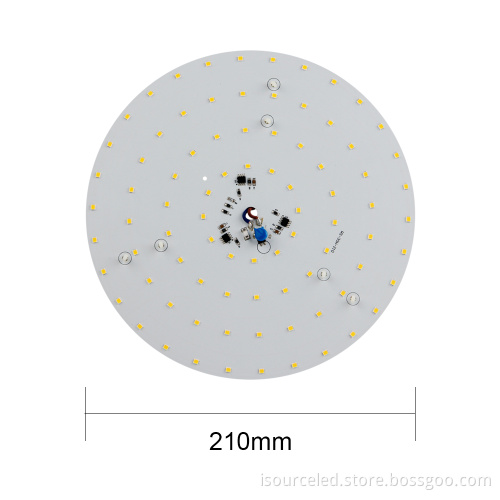

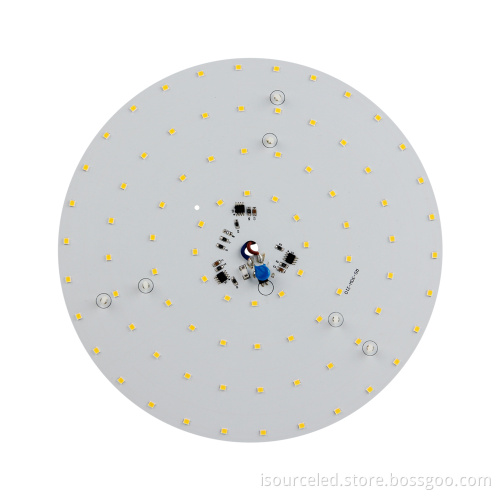

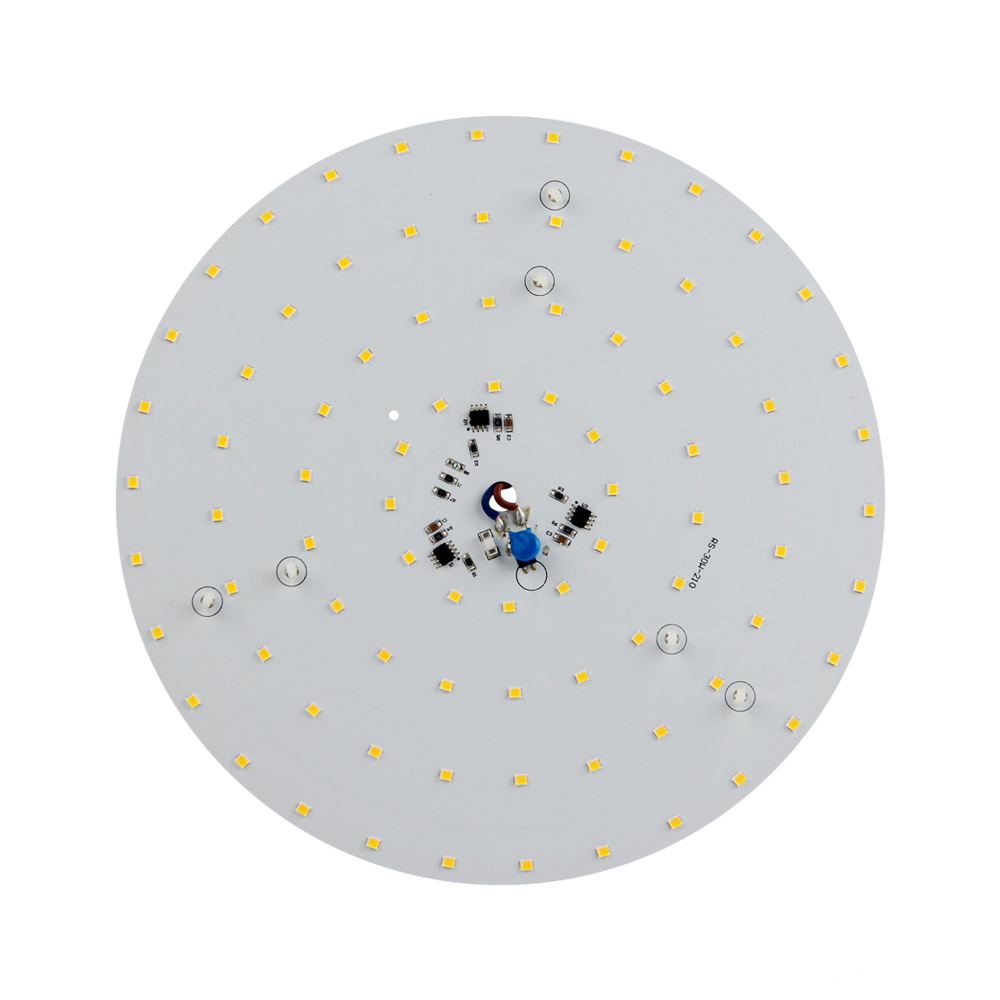

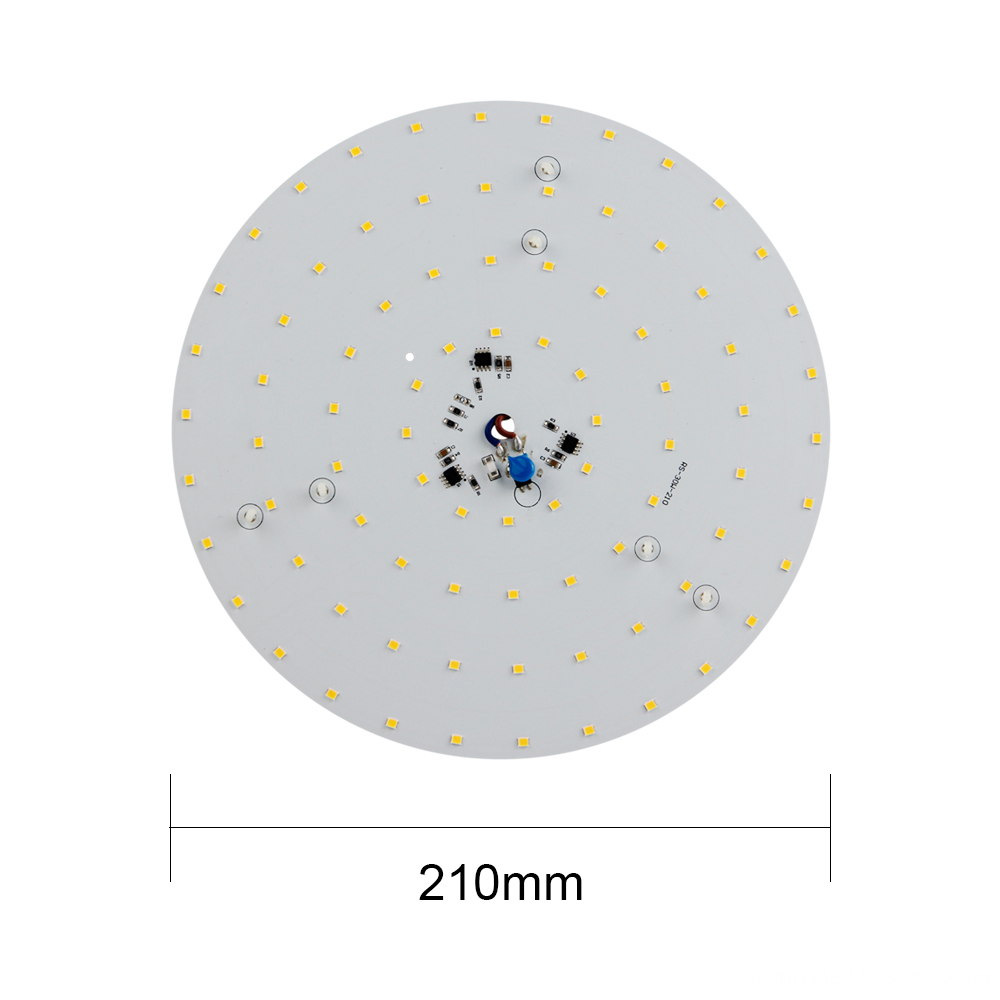

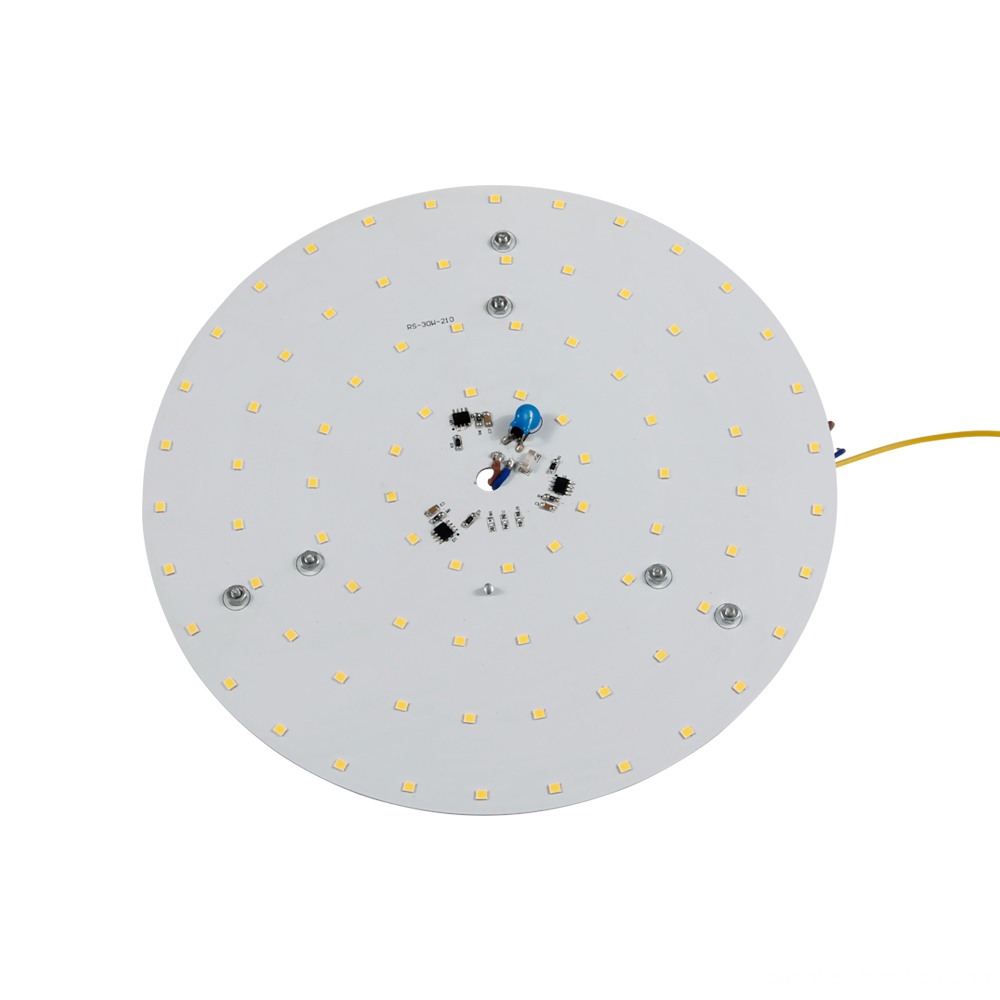

Front view of 220v SCR dimming round 30W AC COB Module

The luminaire design uses cold light source, glare is small, no radiation, no harmful substances are generated during use,

LED has low working voltage, adopts DC drive mode, and has ultra-low power consumption.

Side of 220v SCR dimming round 30W AC COB Module

1. Made of aluminum alloy material, it is resistant to high temperature, moisture, water and leakage.

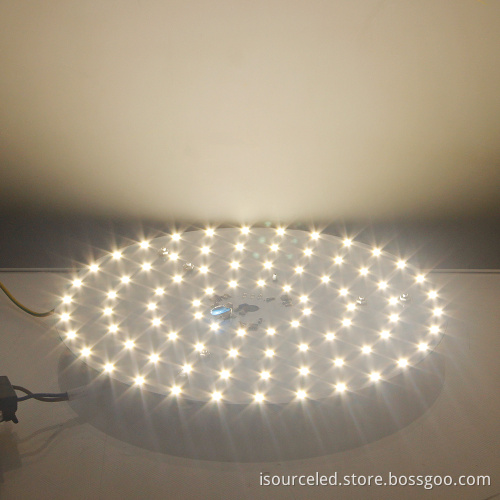

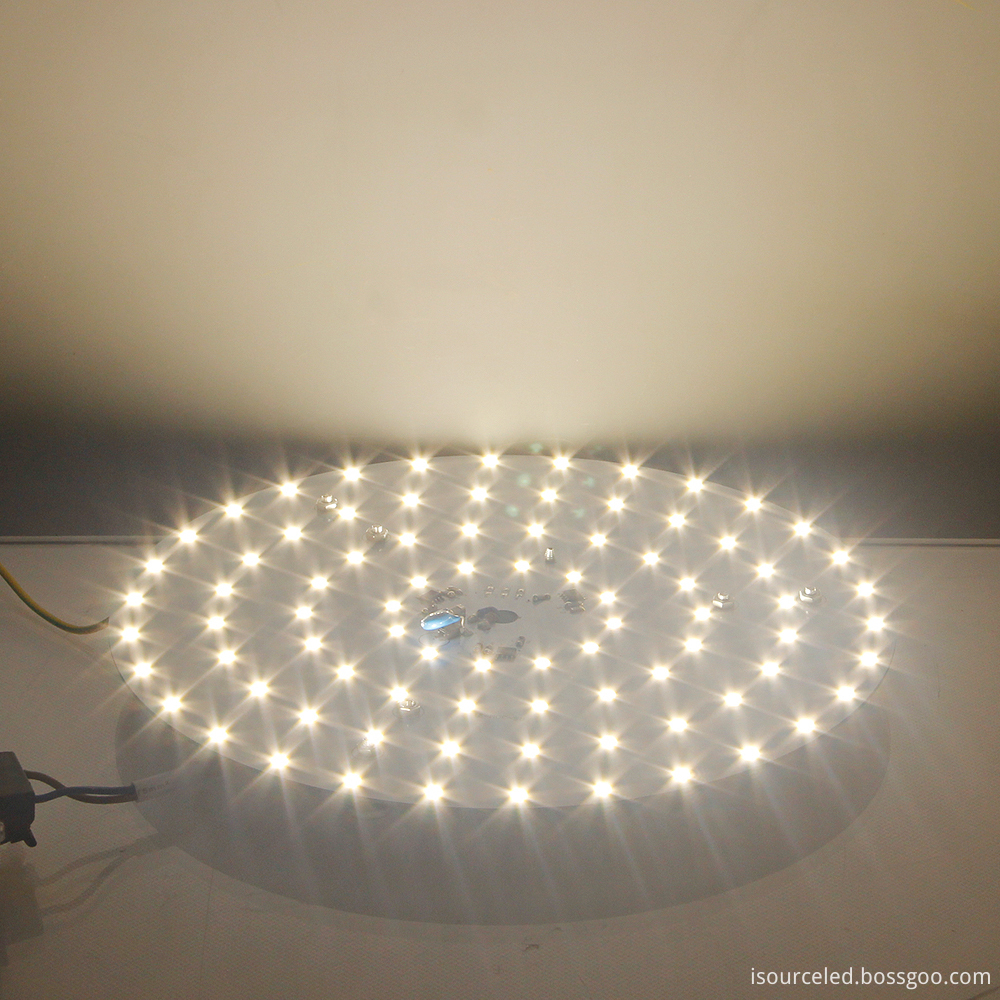

Power-on emission diagram of 220v SCR dimming round 30W AC COB Module

1. The process can precisely control the light type and illumination angle, the light color is mild, and there is no glare.

2. The size of 40W PCB board can be customized according to customer requirements.

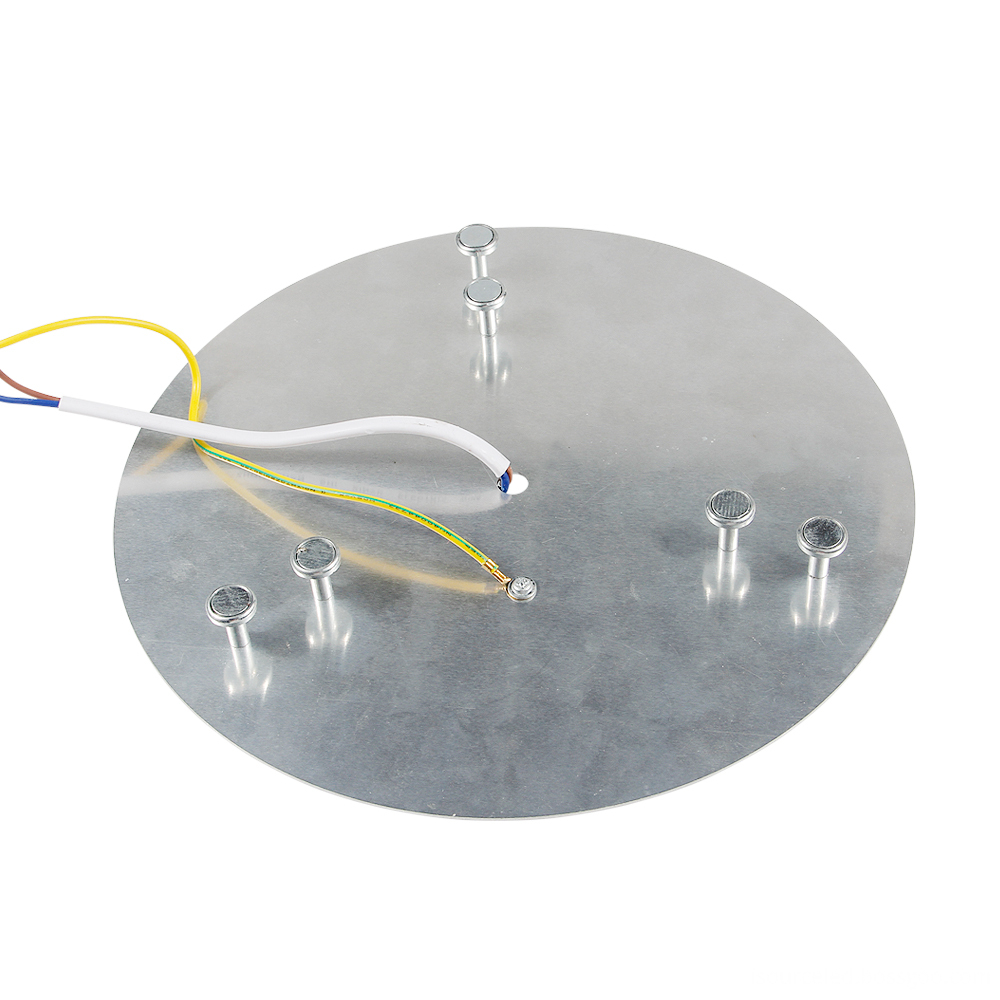

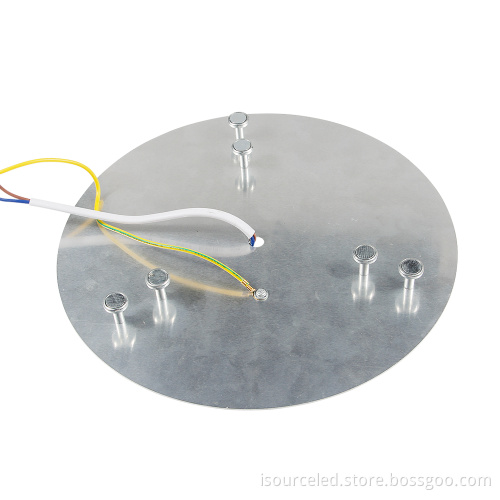

Bottom picture of 220v SCR dimming round 30W AC COB Module

Made of aluminum alloy material, the heat dissipation function is complete, the power is low, and the heat is less.

Aluminum substrate material, reasonable structural design, the base has mounting holes, easy to install.

Installation instructions for 220v SCR dimming round 30W AC COB Module:

1. Clean the installation surface, evenly applying the heat-conducting silicone grease to the bottom of the LED module, And fix the LED module and radiator with screws.

2. Attach the lens and screw it in place.

3. Ac 220V power supply is introduced for power test.

4. It is recommended to use an insulating gasket at the bottom of the screw.

our team

Isource lighting Co., Ltd It is a high-tech enterprise specializing in the development, production and sales of LED ceiling lamps and LED light sources.

Since the establishment of the company, the technology has been continuously innovated, and has made major breakthroughs in the field of high-power LED lighting, and has developed a series of LED lighting products.

It is a powerful high-tech enterprise and is a research and development unit for semiconductor LED lighting engineering.
Isource lighting Co., Ltd Pursue outstanding quality and illuminate colorful life

There is no EMI, through the CCC, CE, EMC, LVD, SAA, UL, FCC, ROHS certification, etc.

No need to drive, wiring can be, 3 years replacement, full light, no flash screen.

If you have any question, please feel free to contact us.
