Super bright 520mm Dimming 9W AC LED Module

Ac driverless Dimming 9W AC LED Module Strip series, model: BY0901, power: 9W, adjustable three grades, users can easily adjust the brightness of LED lights through intelligent lighting dimming system, Dimming 9W AC LED Module process by 84 lessons LED Light bulb and light board, net weight is 64 G, white light does not flash screen, luminous flux is 974.3 lm, light efficiency is 105.7 lm/w, PCB board size is 400MM*27MM*1.2MM, ceiling light board is 1.25MM thick type Aluminum substrate, ceiling lamp, panel light, indispensable product material, ceiling lamp housing and dimming series 9W panel light module, free assembly and lighting design is more convenient. Suitable for shops, hospitals, offices, restaurants, restaurants , waiting room and other places.

White light 9W ceiling light dimming module video

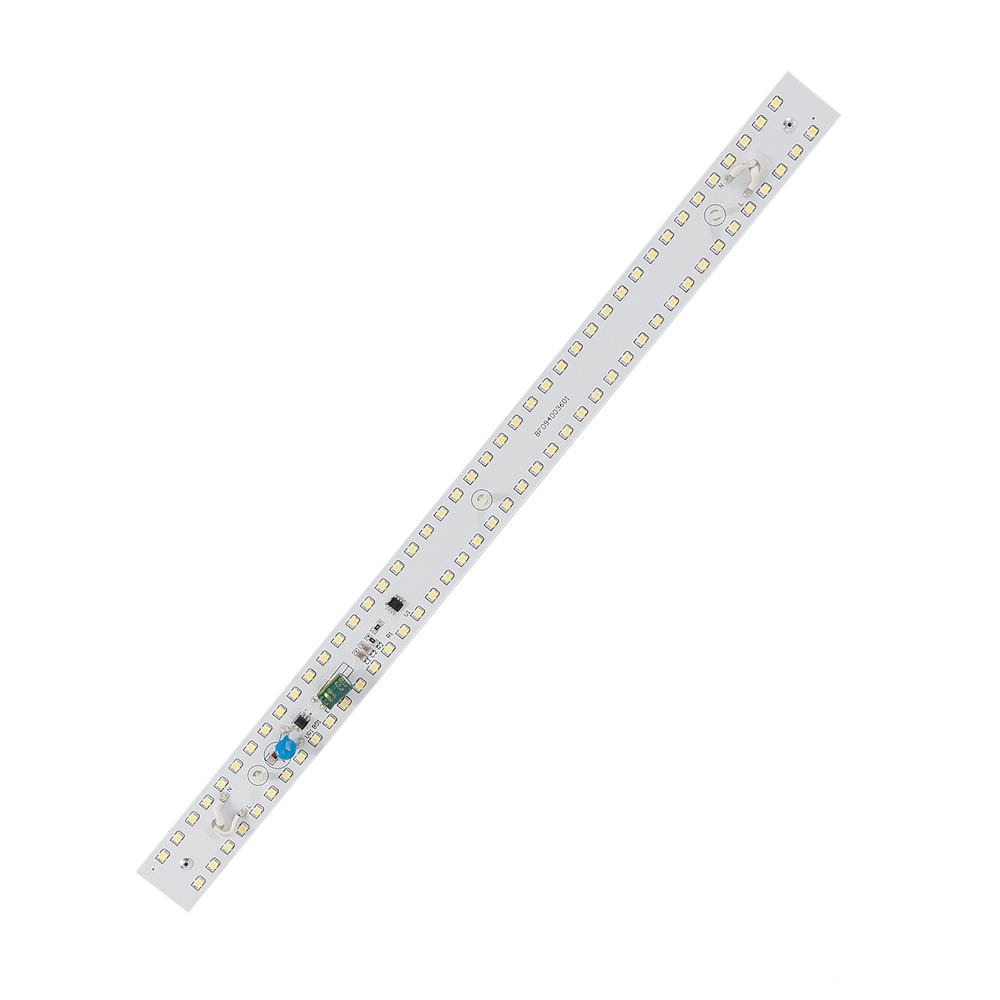

Front view of Ac driverless Dimming 9W AC LED Module Strip

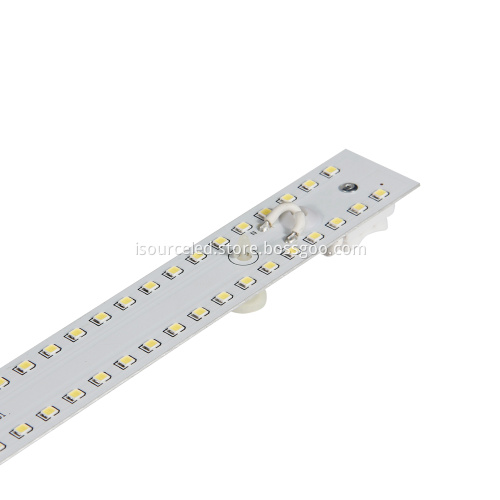

White light Ac driverless Dimming 9W AC LED Module Strip

Technical parameters of white light 9W panel light dimming module:

White light 9W panel light dimming module application:

Can be perfectly applied to ceiling lamps, panel lights, mining lamps, street lamps, LED downlights, fluorescent lamps, projection lamps, etc.

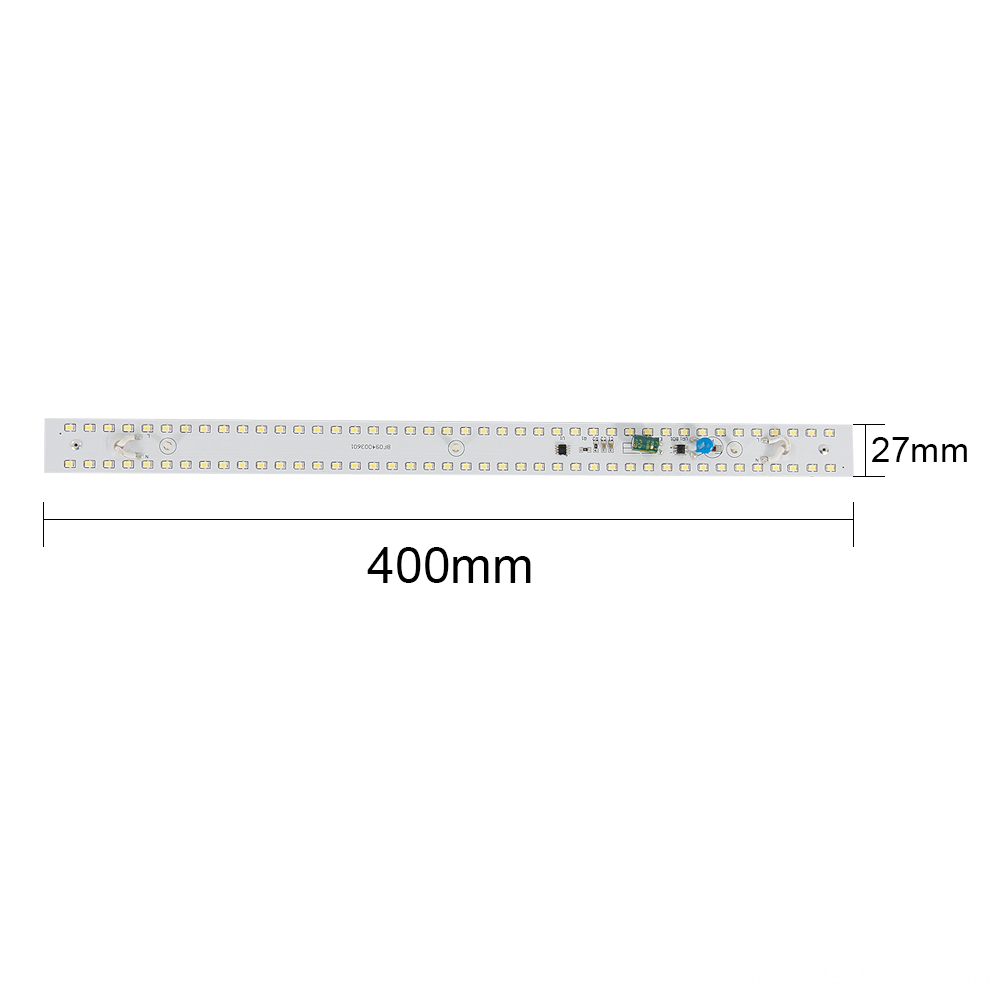

White light Ac driverless Dimming 9W AC LED Module Strip size

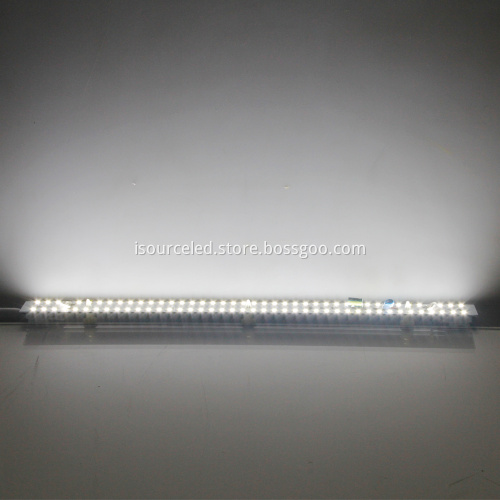

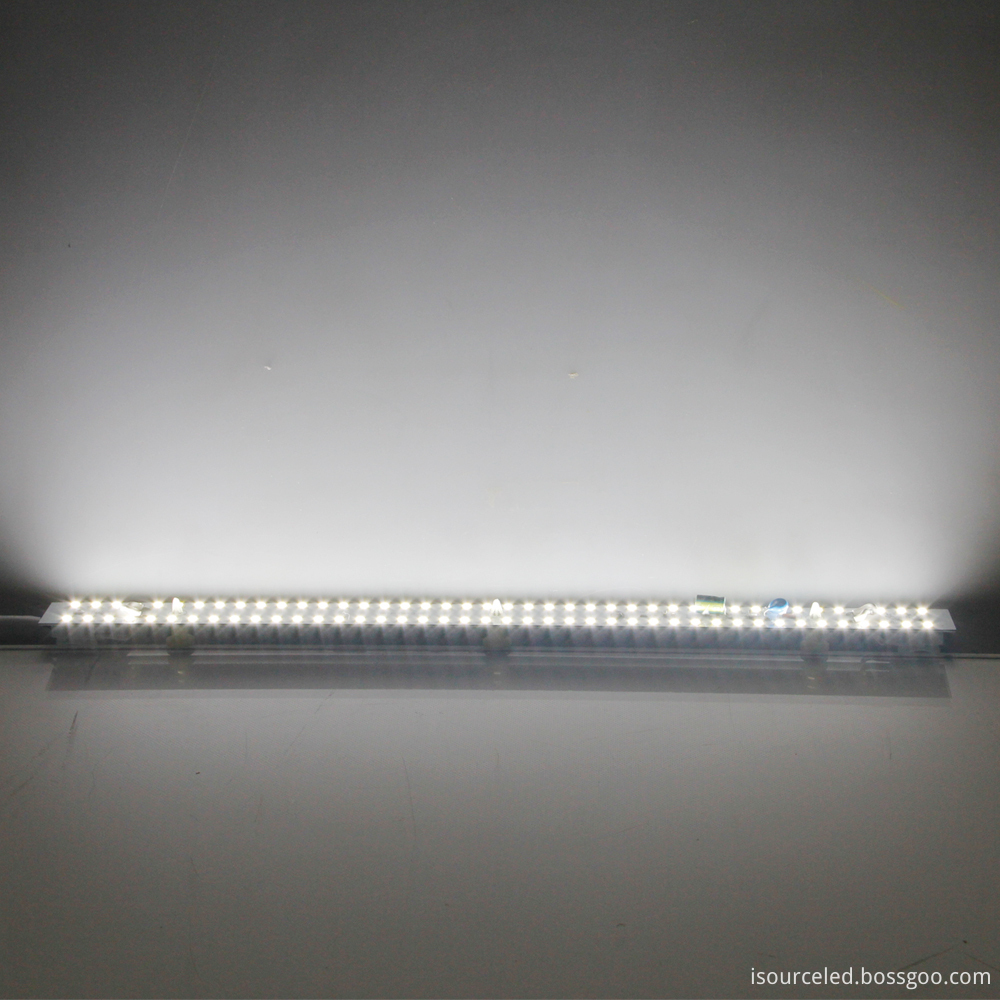

Ac driverless Dimming 9W AC LED Module Strip luminous diagram

White light 9W light board dimming module product features:

1.White Light The 9W ceiling light dimming module consists of 84 large-area LED beads and white light source.

2. linear constant-current IC control, photoelectric integration, stable performance, reliable, long life.
3. Three-stage integrated circuit design, the power change rate is within ±5% when the input voltage fluctuates between 220-240vac;
Constant power over voltage current protection function.
4. Overtemperature protection function, IC will automatically reduce the output current to control the temperature rise of the substrate ,
when the substrate temperature is too high.
5. Using PCT2835 patch LED bead, color rendering index is more than 80.
6. There is no EMI, through the CCC, CE, EMC, LVD, SAA, UL, FCC, ROHS certification, etc.
7. No ultraviolet , electromagnetic wave radiation.
8. The size of 9W PCB board can be customized according to customer requirements.
9. No need to drive, wiring can be, 3 years replacement, full light, no flash screen.
