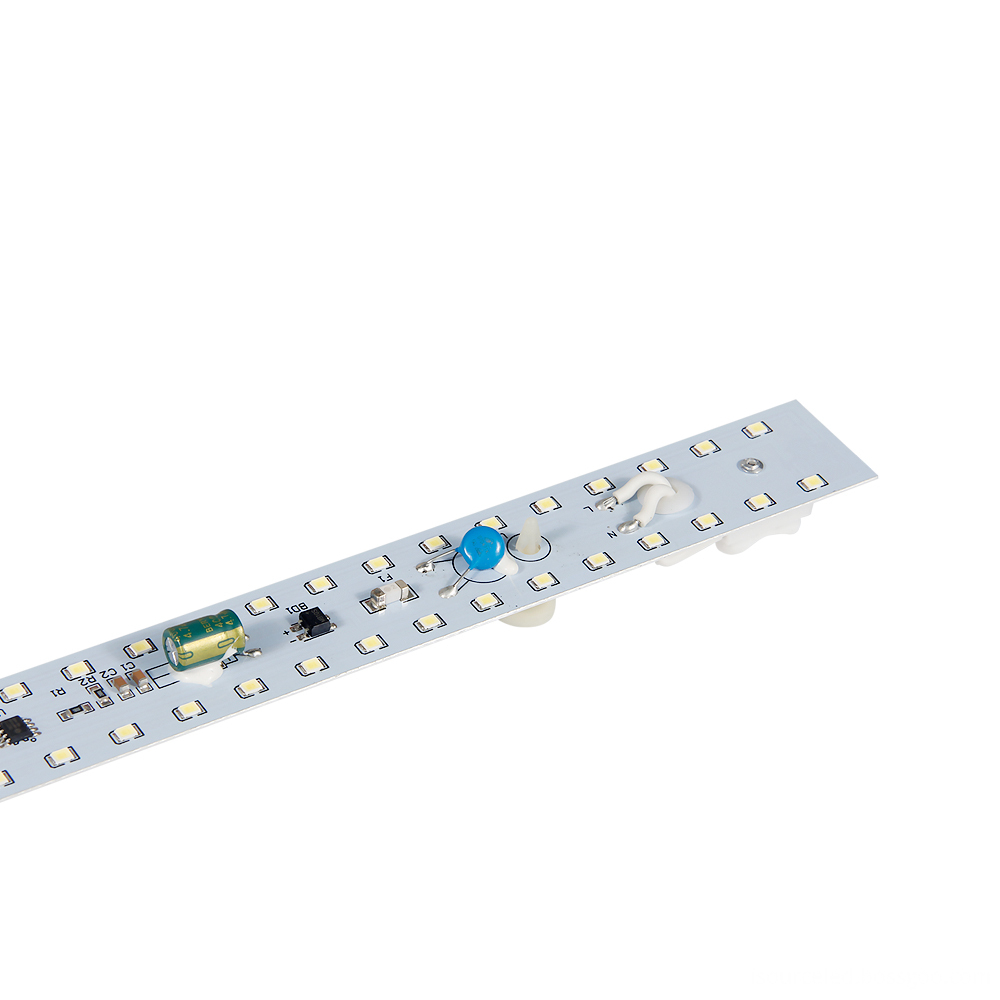

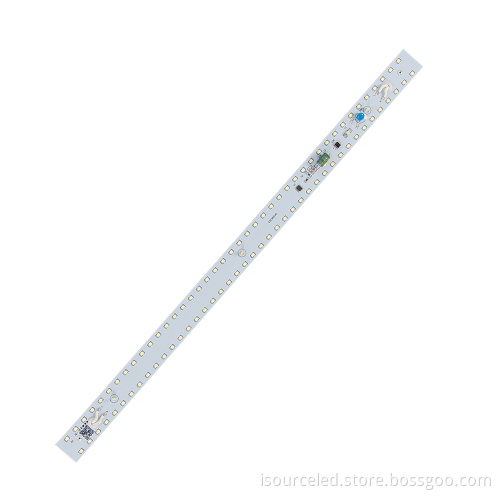

220v Dimming smd 2835 9W AC COB Module

220v Dimming smd 2835 9W AC COB Module is a round piece, power: 9W, model: GF0952002, is a dimming module series, luminous flux 965.5 lm, luminous efficiency 99.3lm / w, PCB size can be customized according to customer requirements. Adjustable three grades, free to change the brightness of light, 24W light board module net weight is 126 G, composed of 84 lessons LED lamp beads, AC COB Module is size 520MM*27MM, white light, no flash screen, isourceled company's innovative products, The ceiling light board is a whole piece of 1.25MM thick aluminum substrate, which belongs to the ceiling lamp. The panel lamp has indispensable product module material. The ceiling lamp shell is assembled with the 9W lamp panel dimming module freely. LED ceiling top finished.

Shenzhen Dianjiang lighting co., LTD., Perfect advanced automated production equipment, strong r & d team, scientific and perfect quality, Specializing in the production of led modules, ceiling light Led module, ceiling lights, uvc light, uv lamp, uv sterilizer lamp, uv germicidal lamp, uv disinfection lamp, solar street lights, led downlights, led flat panel.

220v Dimming smd 2835 9W AC COB Module video

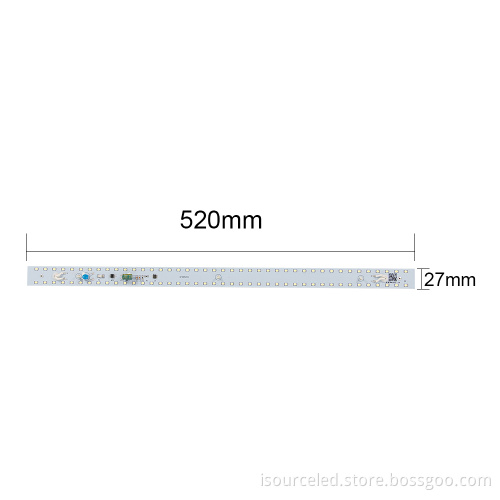

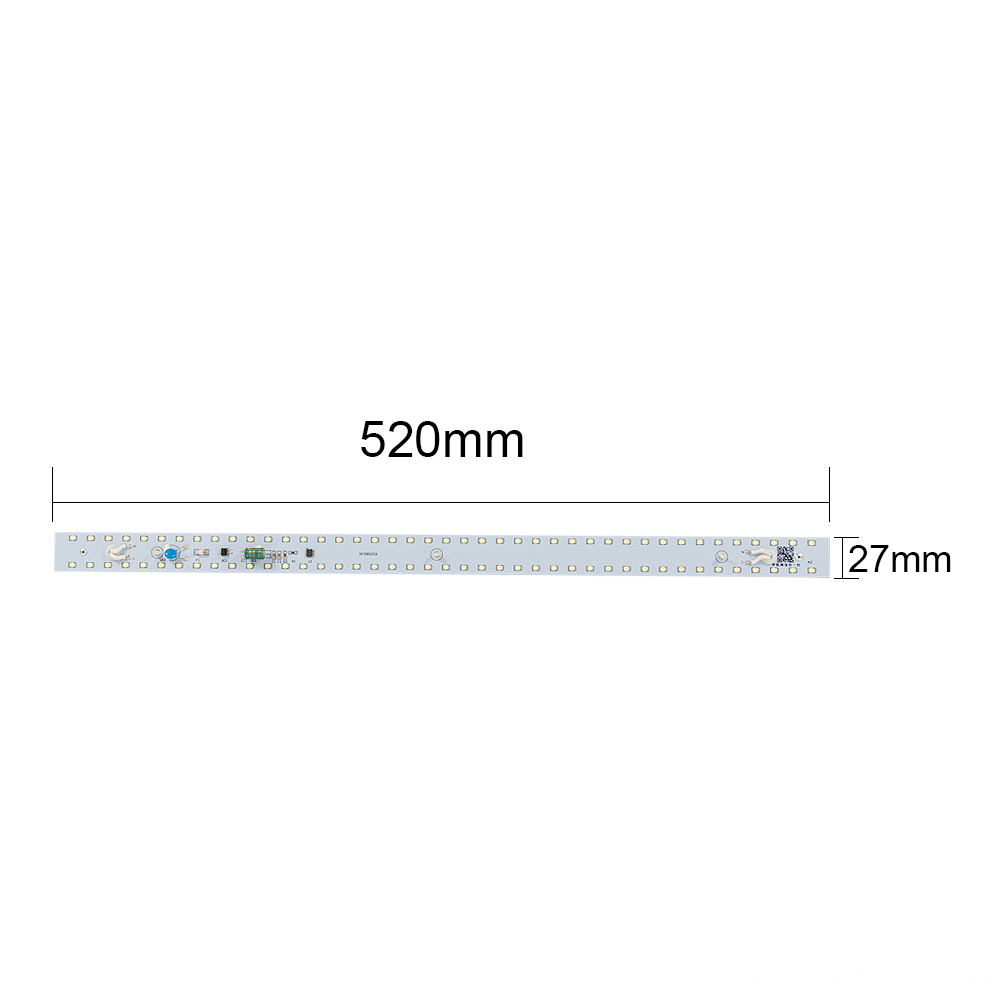

220v Dimming smd 2835 9W AC COB Module size

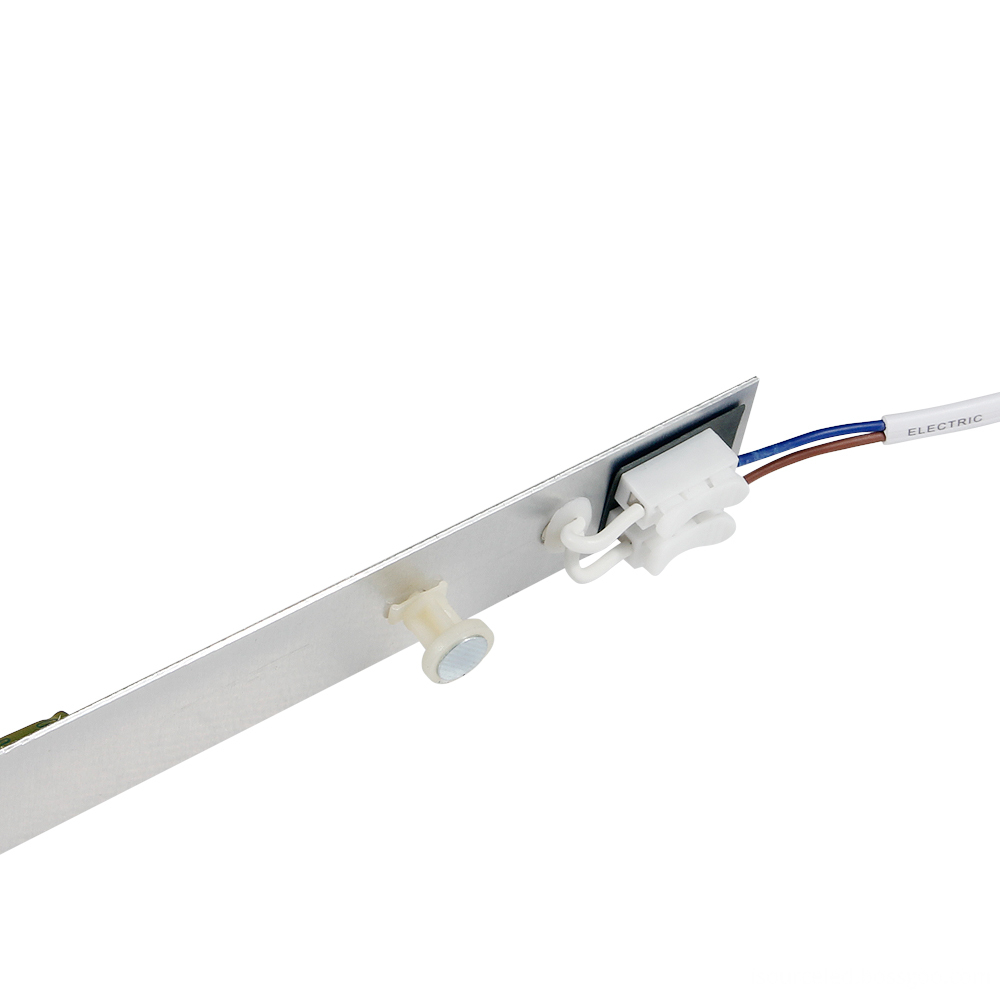

Side of 220v Dimming smd 2835 9W AC COB Module

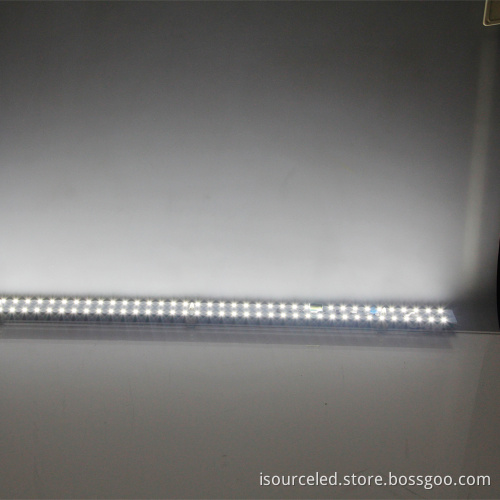

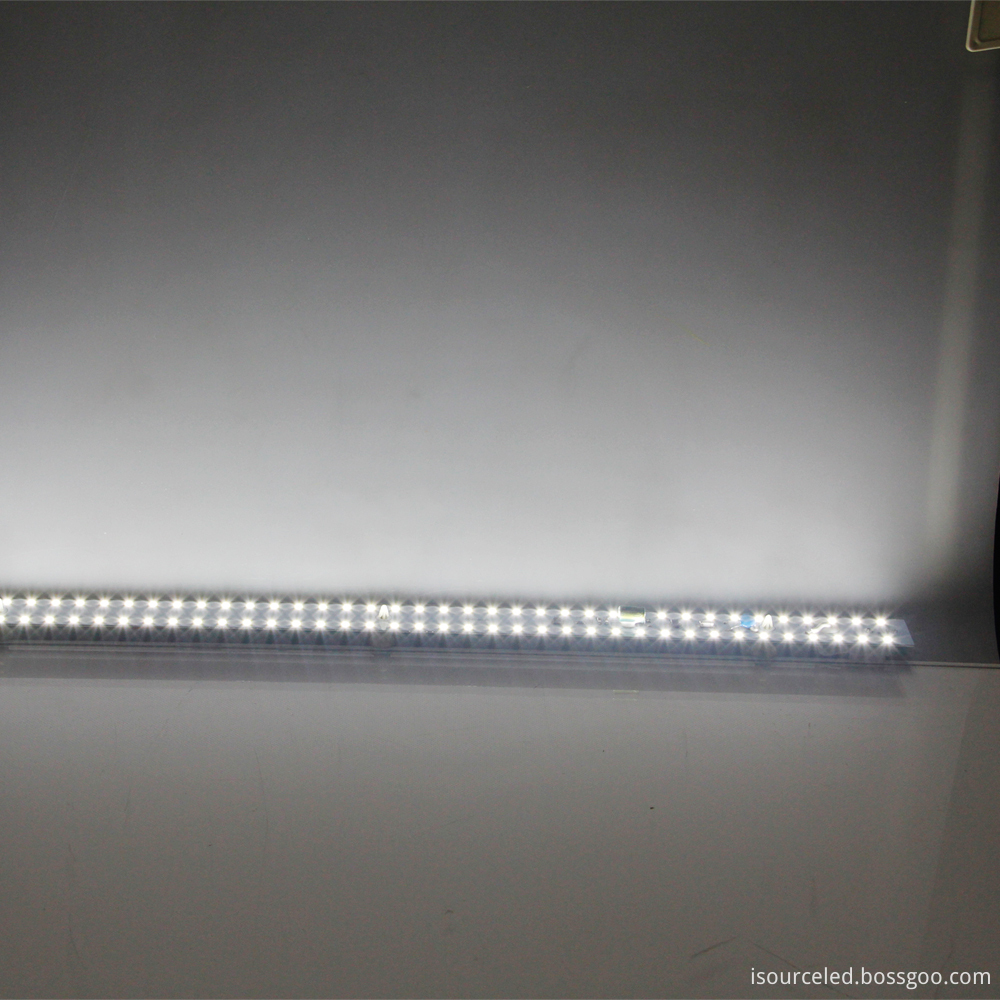

Luminescence of 220v Dimming smd 2835 9W AC COB Module

Warm white light source 9W lamp panel dimming module technical parameters:

220v Dimming smd 2835 9W AC COB Module for Ceiling Light application:

Can be perfectly applied to ceiling lamps, panel lights, mining lamps, street lamps, LED downlights, fluorescent lamps,

projection lamps, etc.

9W led light module installation guide:

1. Clean the installation surface, evenly apply the heat-conducting silicone grease to the bottom of the LED

module, and fix the LED module and radiator with screws.
2. Attach the lens and screw it in place.
3. Ac 220V power supply is introduced for power test.

ISource Engineering Co., Ltd is an innovative, All of our products are qualified with UL, cULs, ETL, cETL,
Energy Star, DLC, CE, ROHS, SAA certificates. We have a wide selection at great prices to help you get creative.

If you have any question, please feel free to contact us.
