Dimming 9W AC LED Modules for Ceiling Light

Dimming 9W AC LED Module for Ceiling Light is a round piece, power: 9W, model: GF0952002, is a dimming module series, luminous flux 895.3 lm, luminous efficiency 98.4lm / w, PCB size can be customized according to customer requirements. Adjustable three grades, free to change the brightness of light, 24W light board module net weight is 126 G, composed of 84 lessons LED lamp beads, PCB board is size 520MM*27MM, white light, no flash screen, isourceled company's innovative products, The ceiling light board is a whole piece of 1.25MM thick aluminum substrate, which belongs to the ceiling lamp. The panel lamp has indispensable product module material. The ceiling lamp shell is assembled with the 9W lamp panel dimming module freely. LED ceiling top finished.

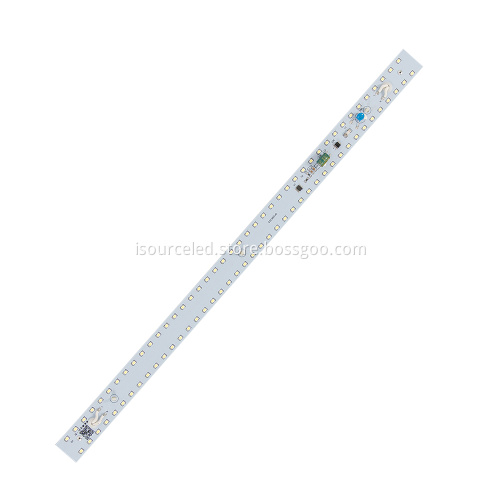

Dimming 9W AC LED Module for Ceiling Light video

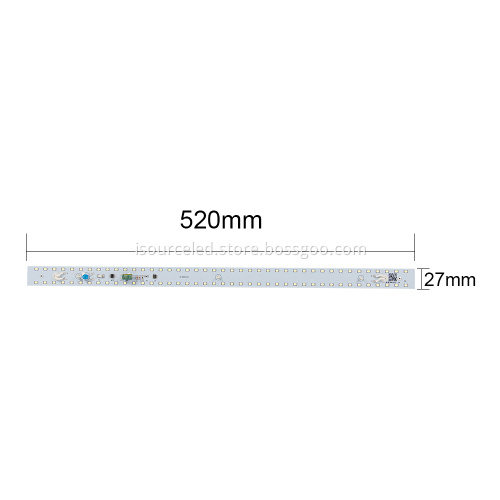

Dimming 9W AC LED Module for Ceiling Light size

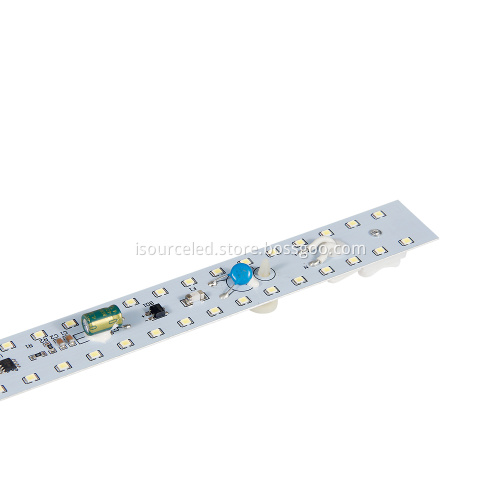

Side of Dimming 9W AC LED Module for Ceiling Light

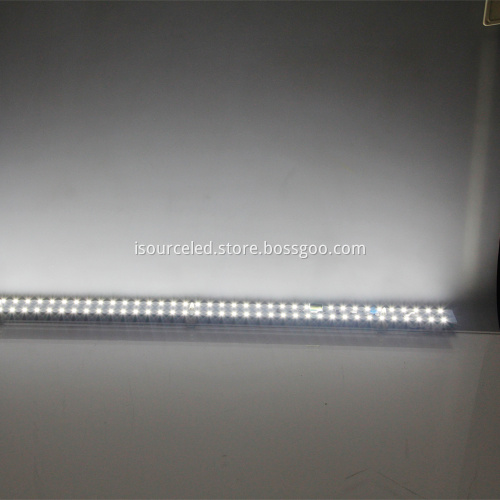

Luminescence of Dimming 9W AC LED Module for Ceiling Light

Warm white light source 9W lamp panel dimming module technical parameters:

Dimming 9W AC LED Module for Ceiling Light application:

Can be perfectly applied to ceiling lamps, panel lights, mining lamps, street lamps, LED downlights, fluorescent lamps,

projection lamps, etc.

9W led light module installation guide:

1. Clean the installation surface, evenly apply the heat-conducting silicone grease to the bottom of the LED

module, and fix the LED module and radiator with screws.
2. Attach the lens and screw it in place.
3. Ac 220V power supply is introduced for power test.

ISource Engineering Co., Ltd is an innovative, All of our products are qualified with UL, cULs, ETL, cETL,
Energy Star, DLC, CE, ROHS, SAA certificates. We have a wide selection at great prices to help you get creative.

If you have any question, please feel free to contact us.
