ac linear High lumen SMD LED Modules

ac linear High lumen SMD LED Modules product introduction

Pure AC operation eliminates visual fatigue caused by strobe of traditional flat panel lights; AC 220v round SMD LED Modules replacement Thickness 1.2mm, Square, new light 9w RED SMD LED modules adopts SMD2835 LED AC linear process, voltage: AC220-240V, magnet installation, Warm light 9w BLUE SMD LED Modules net weight 60g, Luminous: 988 lm, CCT: 2700K/3000K/4000K/4500k/5000k/6000k, SMD LED Modules CE RoHS UL certified specifications are 9W, 15W, 24W, 40w For led ceiling lights, Indoor Lighting, led panel light, lights in ceiling, bedroom lights, living room lights, kitchen lights, balcony lights, dining lights.

ac driverless SMD LED Modules Specifications:

Wrking voltage: AC220-240V 50HZ

Module power : 9W

Luminous flux: 992 lm,

Light color: Warm light,white light

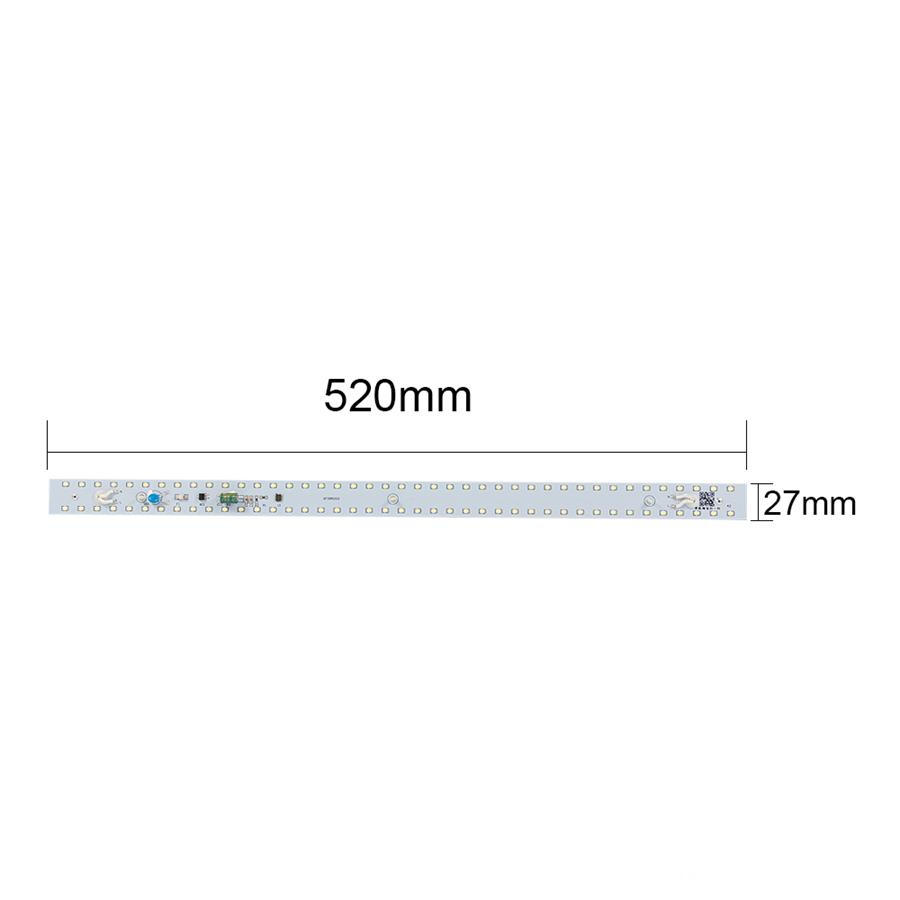

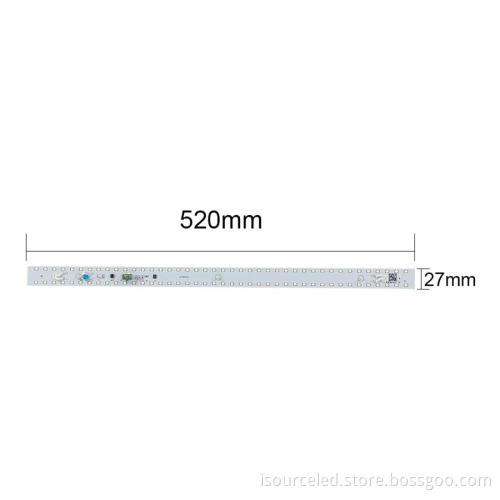

size: round 520mm*27mm

Weight: 60.2 g

No ultraviolet , electromagnetic wave radiation.

CCT: 2700K/3000K/4000K/4500k/5000k/6500k

LED light source has red, green, blue, yellow, white, warm white, three primary colors can be customized according to customer color requirements.

Waterproof: No

SMD type:  LED SMD 2835

color rendering index is more than 80.

white light 9w SMD LED Modules light la video

SMD LED Modules for Indoor Lighting:

Except the warm white, normal white and cool withe SMD LED module, we even have the colors of SMD LED modules;

1, RED SMD LED modules

2. GREEN SMD LED modules

3, BLUE SMD LED modules

4, RGB SMD LED modules

Except the size of 520*27*1.2mm, we even have the sizes of:

1, 400*25*1.2mm

2, 520*45*1.5mm

3, 520*25*1.6mm

4, 420*25*1.2mm

1.High homogeneity thanks to small LED pitch LED.

2.LED light module With digital design, power saving is up to 80%.

3.led Light board Lamp life is 30,000 hours.

4.Light Engines No need to drive, wiring can be, 3 years replacement, full light, no flash screen.

UL, RoHS and CE Approve SMD LED Modules for Ceiling Light

best grow light led 9W GREEN SMD LED module driverless linear ic

The unique thermal design ensures high LED efficacy, low light attenuation and long life.

blue light led 24w BLUE SMD LED modules for Industrial lighting

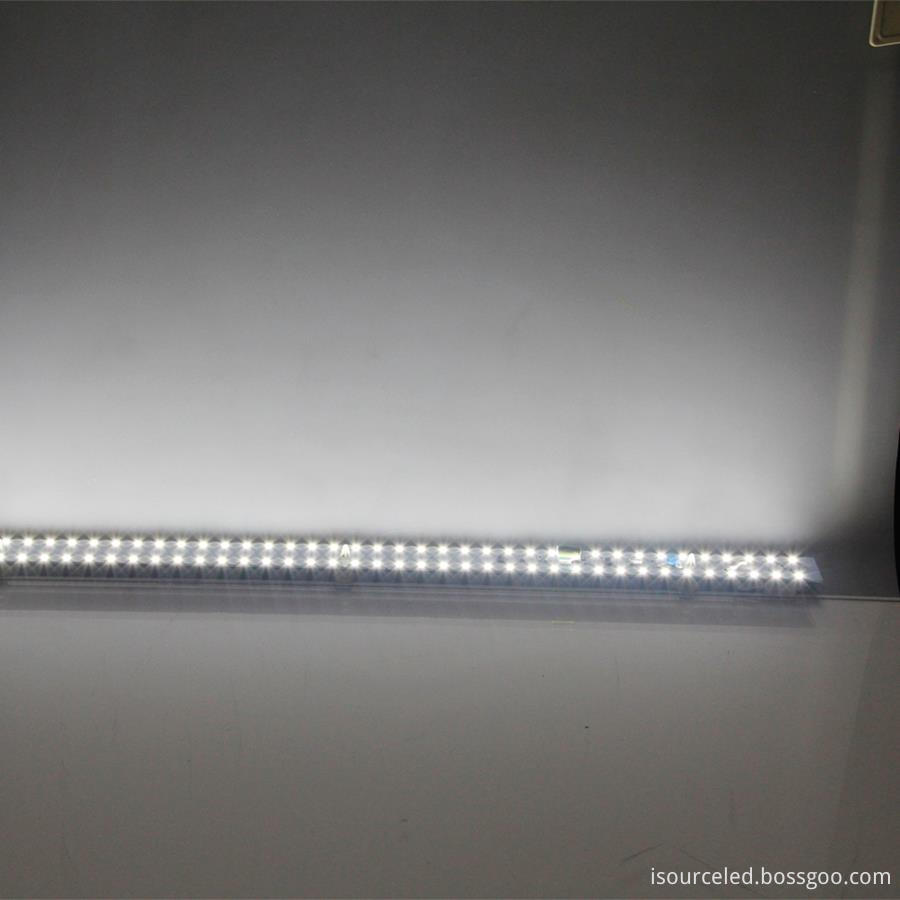

RED SMD LED modules product power-on luminous diagram

A shorter junction-to-base distance and fewer thermal barrier layers can be achieved in each package.

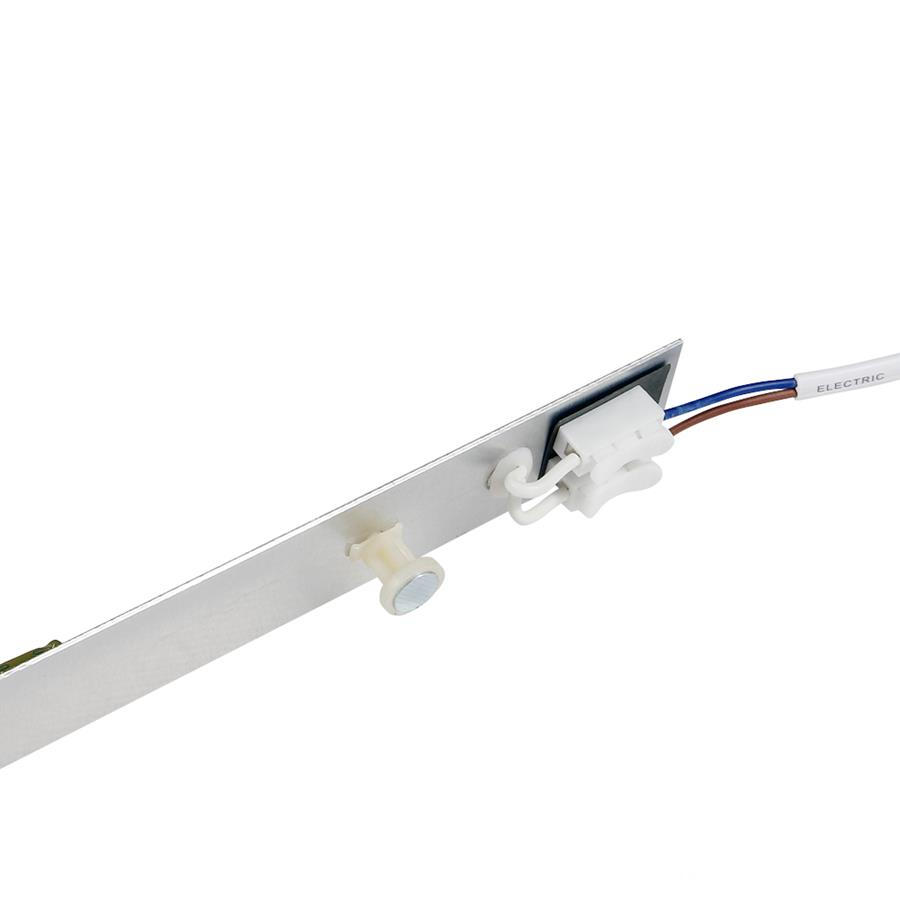

Size 450*27*1.2mm SMD LED Module bottom view

led ceiling light pcb board replacement:

1. Clean the installation surface, evenly apply the heat-conducting silicone grease to the bottom of the LED module, and fix the LED module and radiator with screws.

2. Attach the lens and screw it in place.

3. Ac 220V power supply is introduced for power test.

4. It is recommended to use an insulating gasket at the bottom of the screw.

Product Certificate
