Led ceiling light pcb board replacement Magnet installation

Led ceiling light pcb board replacement Magnet installation product introduction

pcb board replacement? The most direct way is to break the broken lamp directly off, or you can replace it with an LED light board. Super bright 24W Led ceiling light pcb board replacement Thickness 1.2mm, Led Light Board Price Led Light Board Price $4 to $11, adopts SMD2835 LED AC linear process, led light board input voltage: AC220-240V, magnet installation, High lumen 15W rgb led light board net weight 61g, Luminous: 1567 lm, CCT: 2700K/3000K/4000K/4500k/5000k/6000/6500k, CE RoHS certified Led ceiling light pcb board replacement specifications are 9W, 15W, 24W,40W For led ceiling lights, Indoor Lighting, led panel light, lights in ceiling, bedroom lights, living room lights, kitchen lights, balcony lights, dining lights.

New Design 24W Led ceiling light pcb board replacement Specifications:

Wrking voltage: AC220-240V 50HZ

Module power : 24W

Luminous flux: 2493lm,

Light color: Warm White

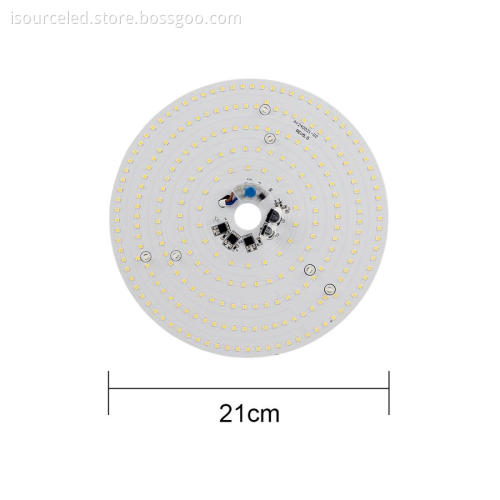

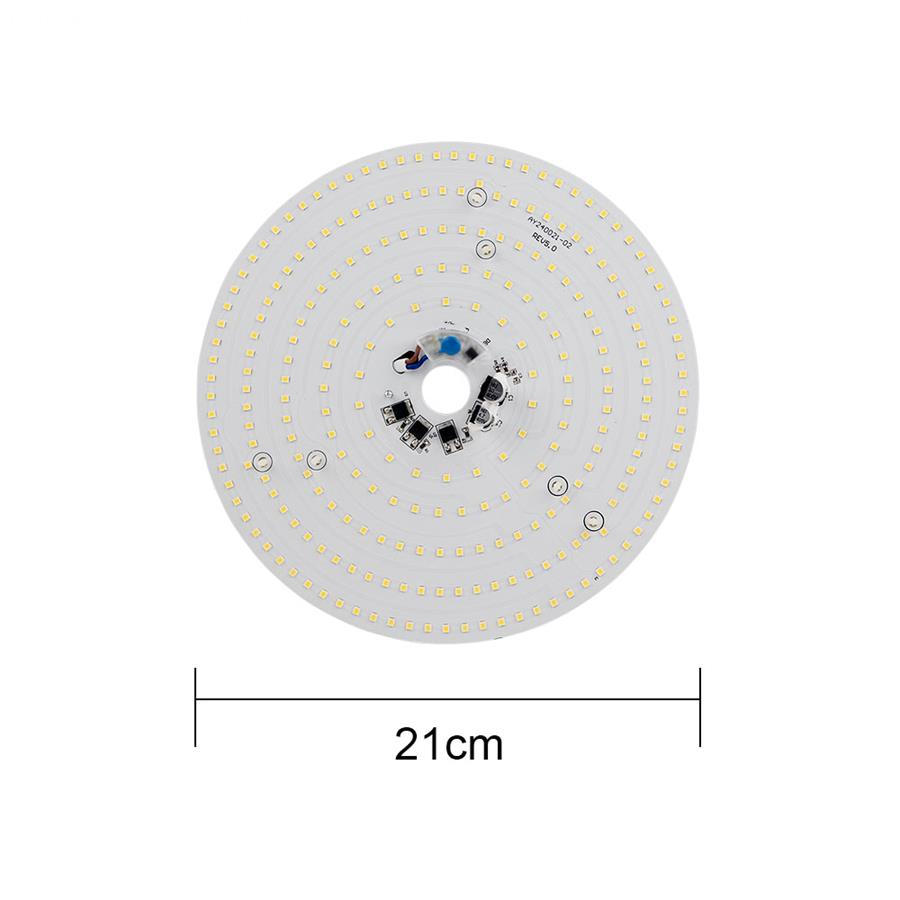

size: round 210mm

Weight: 137 g

No ultraviolet , electromagnetic wave radiation.

CCT: 2700K/3000K/4000K/4500k/5000k/6000k/6500K

LED light source has red, green, blue, yellow, white, warm white, three primary colors can be customized according to customer color requirements.

Waterproof: No

SMD type:  LED SMD 2835

color rendering index is more than 80.

New Design 24w Led Light Board Video

Led ceiling light pcb board replacement Magnet installation:

1.High homogeneity thanks to small LED pitch LED.

2.With digital design, power saving is up to 80%.

3.Lamp life is 30,000 hours.

4.No need to drive, wiring can be, 3 years replacement, full light, no flash screen.

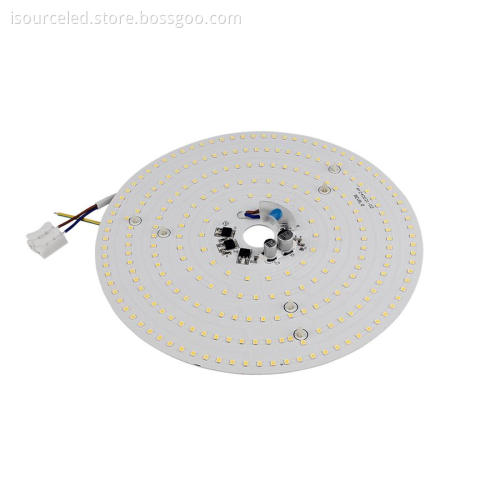

1.2 mm Board Thickness Led pcb board for led ceiling lights

SMD 2835 24W Led Lights Board for led panel light

Using liquid crystal backlight technology and high-efficiency LED chip and SMD 2835, the light efficiency is higher, high efficiency and energy saving.

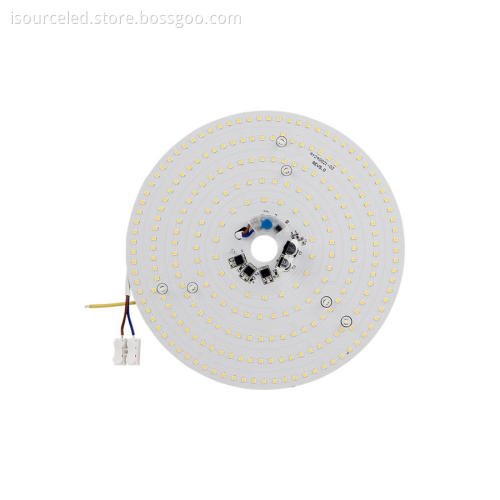

Connect the switch power supply tail of the luminaire to the mains supply. Usually the brown (black) line is the live line and the blue line is the zero line.

led pcb board replacement

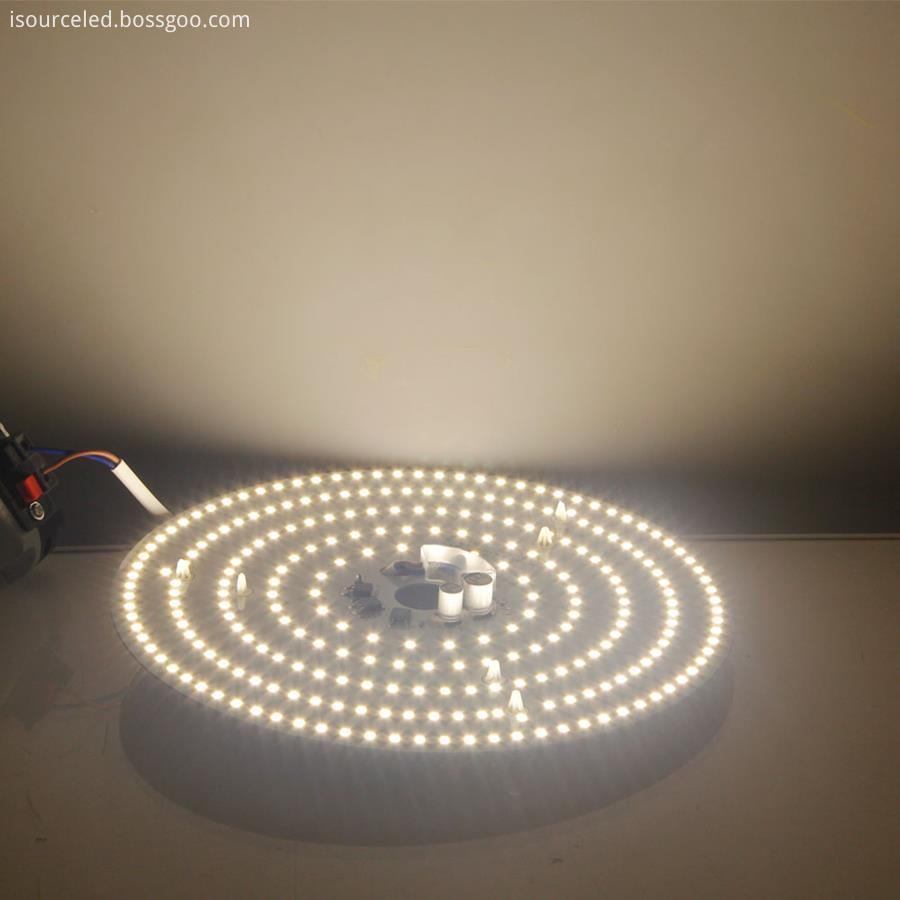

Led ceiling light pcb board replacement

Can be mounted on the ceiling, wall and mounting surface.

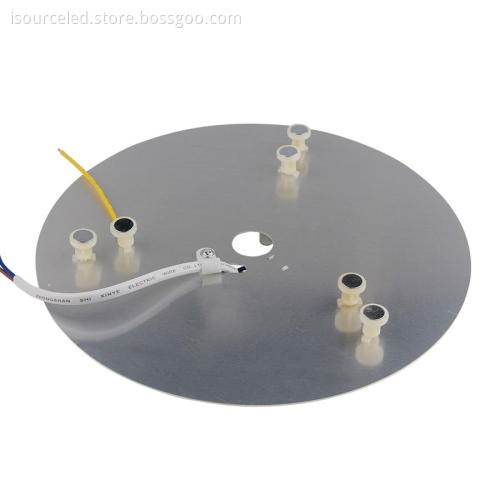

Led ceiling light pcb board replacement Magnet installation

led ceiling light pcb board replacement:

1. Clean the installation surface, evenly apply the heat-conducting silicone grease to the bottom of the LED module, and fix the LED module and radiator with screws.

2. Attach the lens and screw it in place.

3. Ac 220V power supply is introduced for power test.

4. It is recommended to use an insulating gasket at the bottom of the screw.
