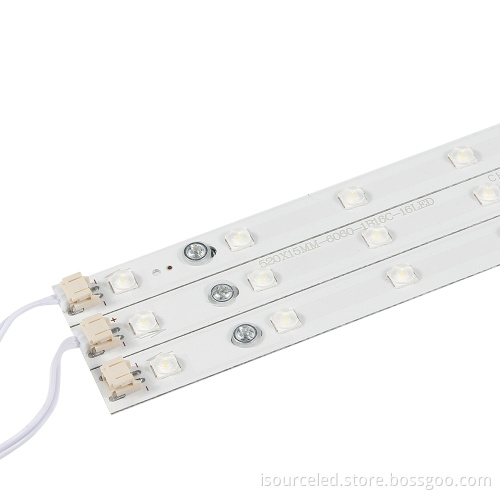

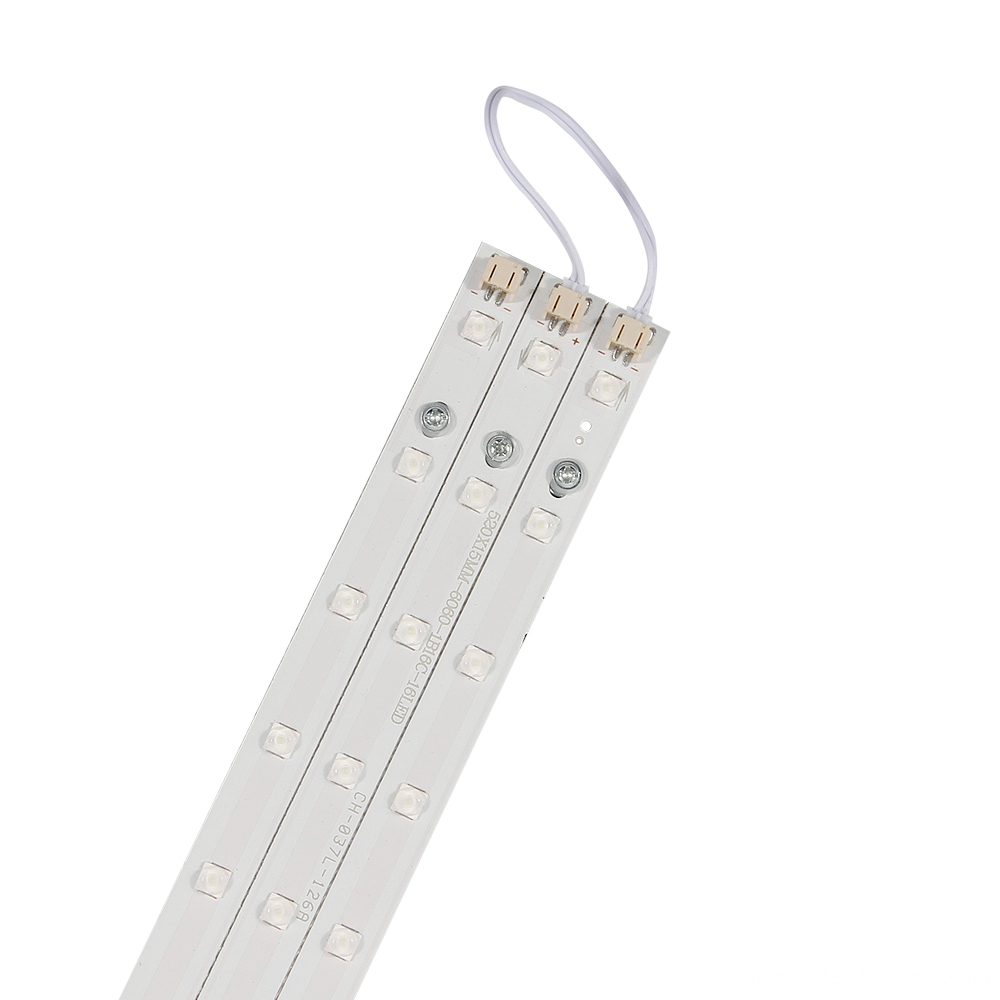

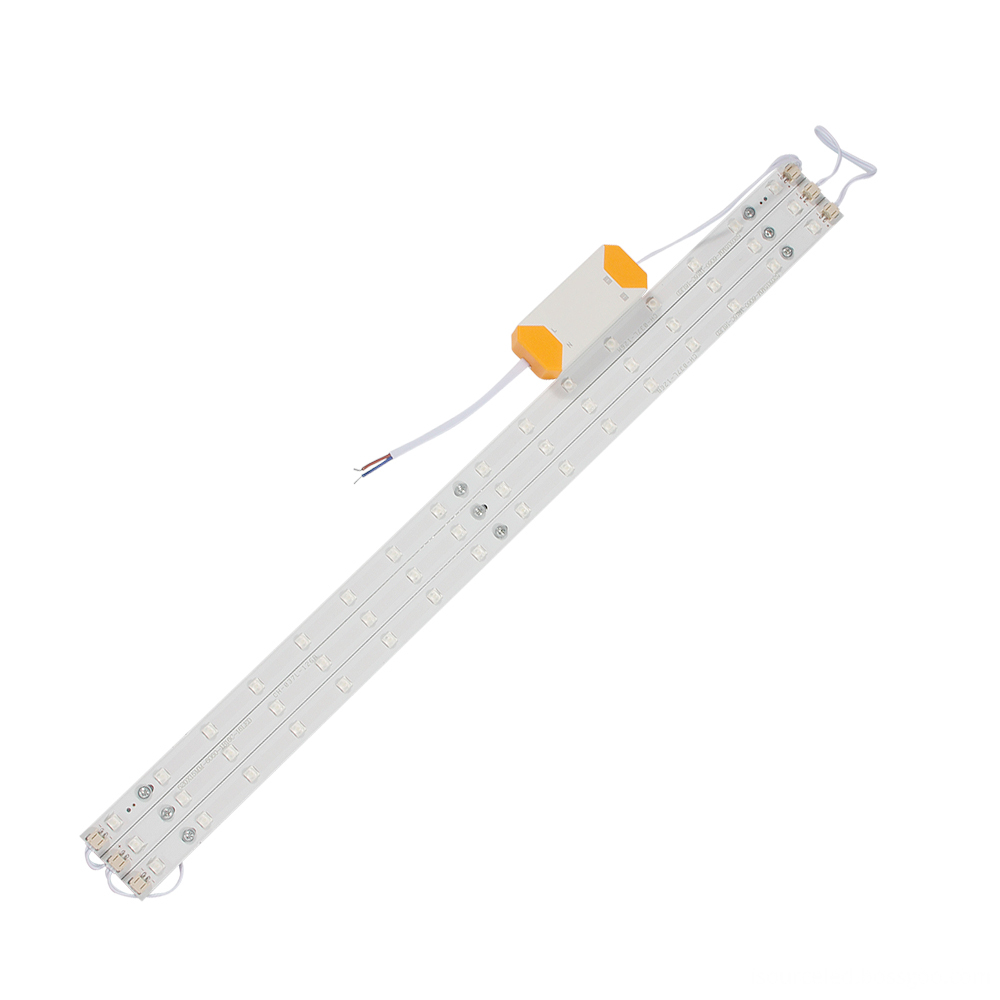

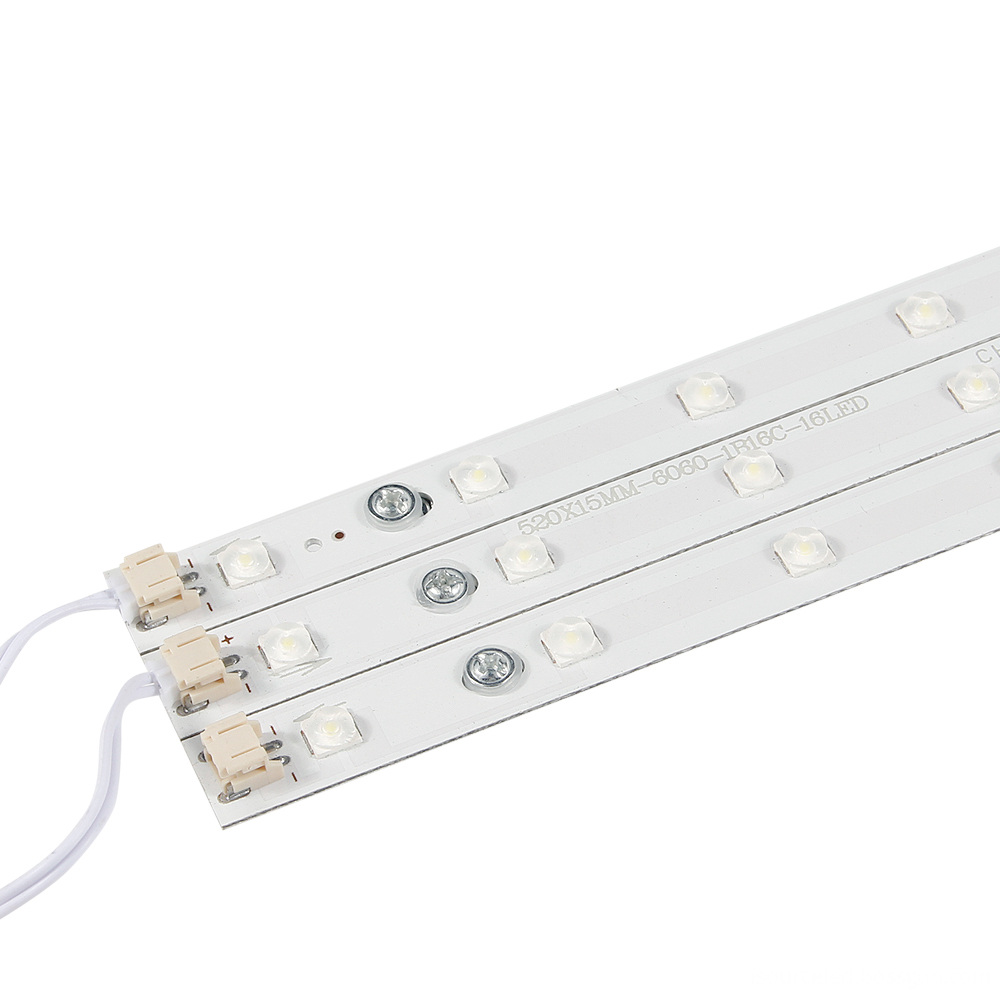

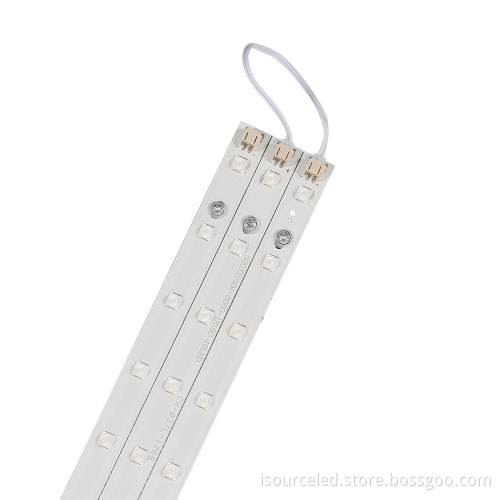

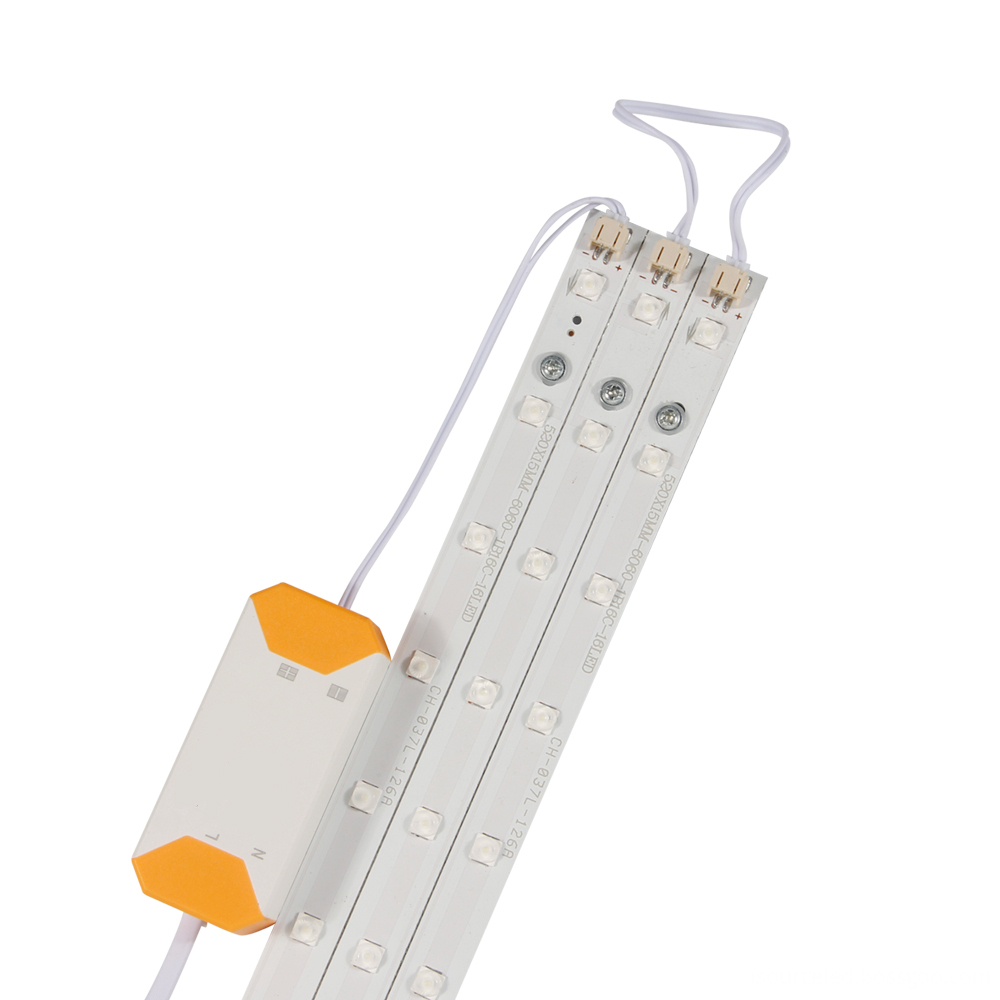

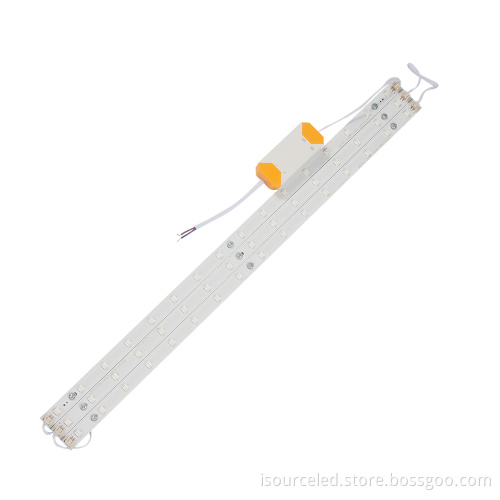

samsung 520X15mm led module with lens

samsung 520X15mm led module with lens product introduction

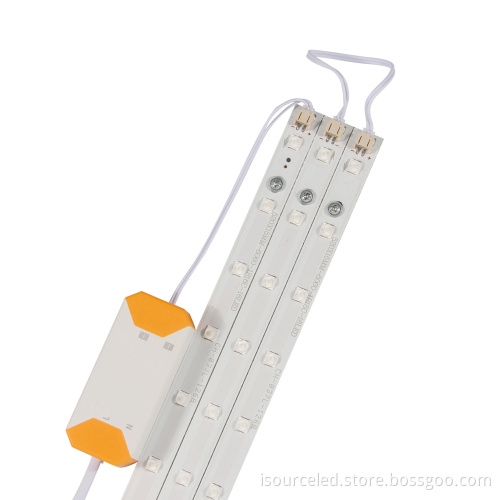

The LED module lens 1 is formed by encapsulating the PCB substrate 4 and the LED light-emitting chip 2 with the plastic housing 5 to form an LED lens module. Led lens module Thickness 1.2mm, adopts SMD6060 LED AC linear process, led module with lens input voltage: AC220-240V, magnet installation, 18W Led lens module net weight 75g, Luminous: 1564 lm, CCT: 2700K/3000K/4000K/4500k, samsung 520X15mm led module with lens CE RoHS certified specifications are 10W, 18W, 24W, For led ceiling lights, Indoor Lighting, led panel light, lights in ceiling, bedroom lights, living room lights, kitchen lights, balcony lights, dining lights.

Warm light samsung 520X15mm led module with lens Specifications:

Wrking voltage: AC220-240V 50HZ

Module power : 18W

Luminous flux: 1733lm,

Light color: Warm light

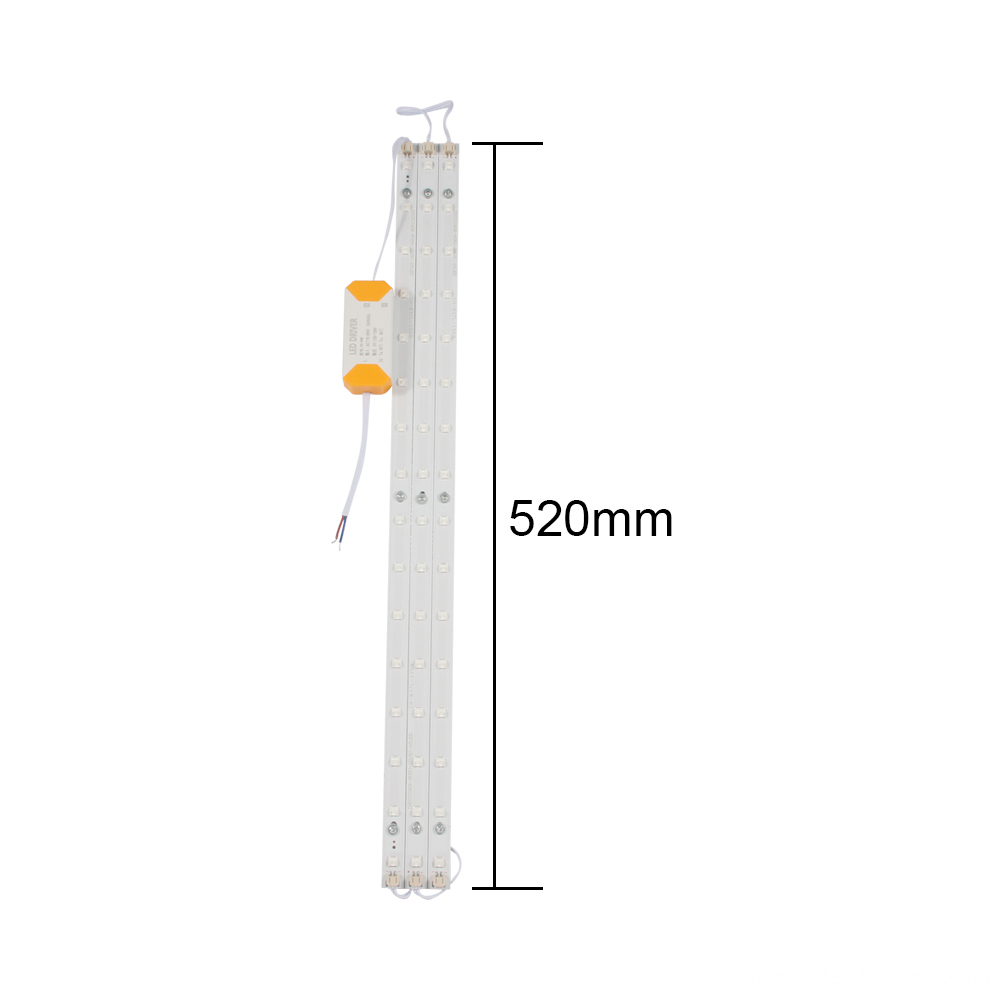

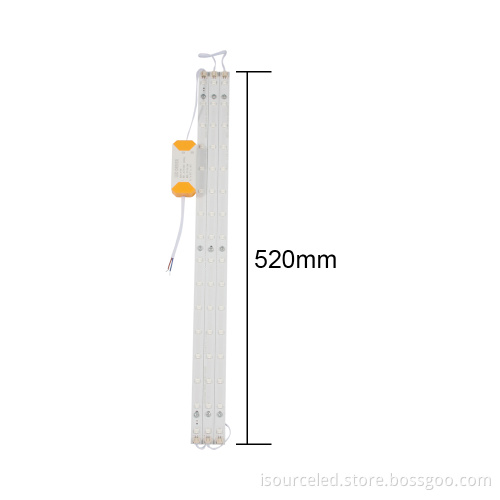

size: Three 520mm**15mm*1.2mm

Weight: 76 g

No ultraviolet , electromagnetic wave radiation.

CCT: 2700K/3000K/4000K/4500k

LED light source has red, green, blue, yellow, white, warm white, three primary colors can be customized according to customer color requirements.

Waterproof: No

SMD type:  LED SMD 6060

color rendering index is more than 80.

samsung 520X15mm 10W led module with lens:

1.High homogeneity thanks to small LED pitch LED.

2.With digital design, power saving is up to 80%.

3.Lamp life is 30,000 hours.

4.No need to drive, wiring can be, 3 years replacement, full light, no flash screen.

samsung 520X15mm 10W led module with lens for led ceiling lights

samsung 520X15mm 10W led module with lens for led panel light

Using liquid crystal backlight technology and high-efficiency LED chip and SMD 6060, the light efficiency is higher, high efficiency and energy saving.

samsung 520X15mm 10W led modules with lens CE RoHS UL certified

samsung 520X15mm 10W led modules with lens

samsung 520X15mm 10W led module with lens

led ceiling light pcb board replacement:

1. Clean the installation surface, evenly apply the heat-conducting silicone grease to the bottom of the LED module, and fix the LED module and radiator with screws.

2. Attach the lens and screw it in place.

3. Ac 220V power supply is introduced for power test.

4. It is recommended to use an insulating gasket at the bottom of the screw.
