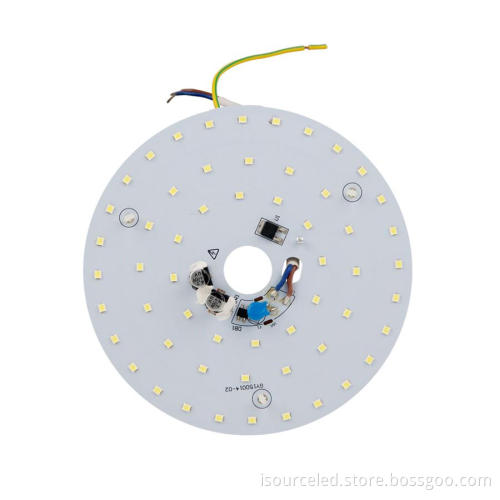

ceiling light led module Round 15W white light

CE RoHS certified ceiling light led module, the process is round 15W white light, composed of 56 LED SMD3528 lamp beads, for Ceiling Light, Round light board, white light (PW) 5000-6500K, input current 0.132A, luminous flux 1536 lm, luminous efficiency 105.7 lm/w, power: 15W, model: GY150011, module net weight 63 G, size: Round 140mm*1.2mm, suitable for industrial lighting, indoor home lighting.

Shenzhen Dianjiang lighting co., LTD., Perfect advanced automated production equipment, strong r & d team, scientific and perfect quality, specializing in the production of led modules, ceiling light Led module, ceiling lights, uvc light, uv lamp, uv sterilizer lamp, uv germicidal lamp, uv disinfection lamp, solar street lights, led downlights, led flat panel.

ceiling light led module Specifications:

Wrking voltage: AC220-240V 50HZ

Module power : 15W

Luminous flux: 1525lm

Light color: white light

No ultraviolet , electromagnetic wave radiation.

LED light source has red, green, blue, yellow, white, warm white, three primary colors can be customized according to customer color requirements.

Waterproof: No

SMD type: 56 LED SMD3528

color rendering index is more than 80.

ceiling light led module Round 15W white light Technical Data:

Ceiling light led module has a service life of 50,000 hours.

Overtemperature protection function, IC will automatically reduce the output current to control the temperature rise of the substrate,

No need to drive, wiring can be, 3 years replacement, full light, no flash screen.

ceiling light led module Round 15W white light feature:

  - Green lighting design, soft light, beautiful appearance, no stroboscopic phenomenon.

   - Good PCB board, embedded and hanging wire, easy to install.   - Widely used in ceiling lights, ceiling lamps.

   - When set on a white ceiling, the entire ceiling is one color, very beautiful, neat and coordinated.

   - Commercial logo backlighting, stage backlighting, message display backlighting, home decor, hotels, clubs, shopping malls.

   - Architectural lighting, boutique atmosphere lighting.

   - Suitable for hotels, bars, western restaurants, cafes, home interiors, and other indoor lighting.

   - Decorative lights for vacations, events, exhibitions, borders or outline lighting.
