84PCS SMD5050 white light rgb smd led module
-
USD2.49200-499 Piece/Pieces
-
USD2.29500-999 Piece/Pieces
-
USD2.09≥1000 Piece/Pieces
- Payment Type:
- L/C, T/T, D/P, Paypal
- Incoterm:
- FOB, CFR
- Min. Order:
- 200 Piece/Pieces
- Min. Order:
- 200 Piece/Pieces
- Delivery Time:
- 15 Days
- Transportation:
- Ocean, Land, Air
- Port:
- Shekou, Yantian
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | shenzhen |
|---|---|
| Productivity: | 500 |
| Supply Ability: | 30000 One |
| Payment Type: | L/C,T/T,D/P,Paypal |
| Incoterm: | FOB,CFR |
| Certificate: | CE, RoHS, FCC,CCC,PSE, ISO:9001 |
| Transportation: | Ocean,Land,Air |
| Port: | Shekou,Yantian |

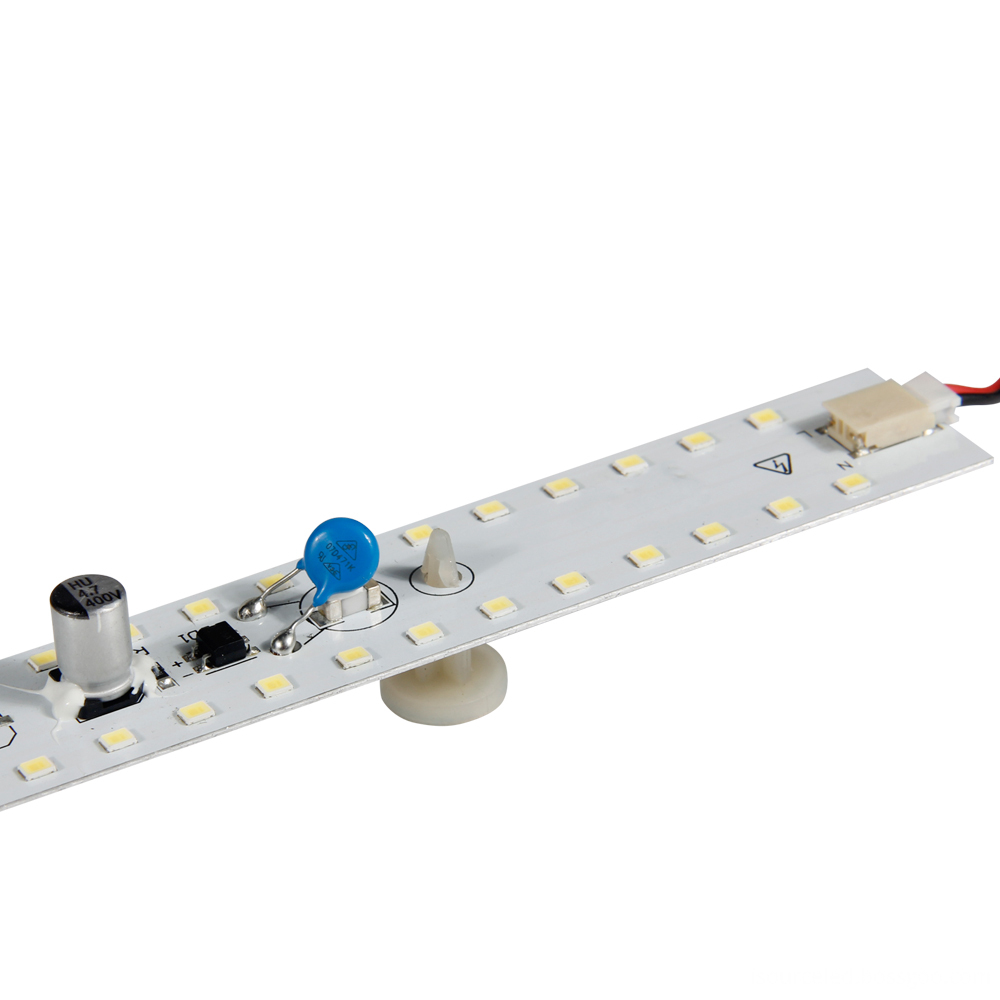

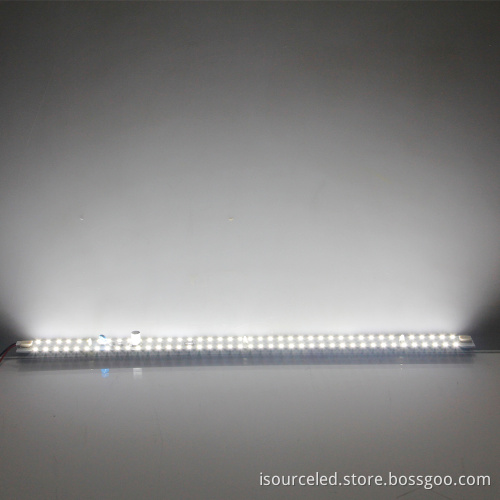

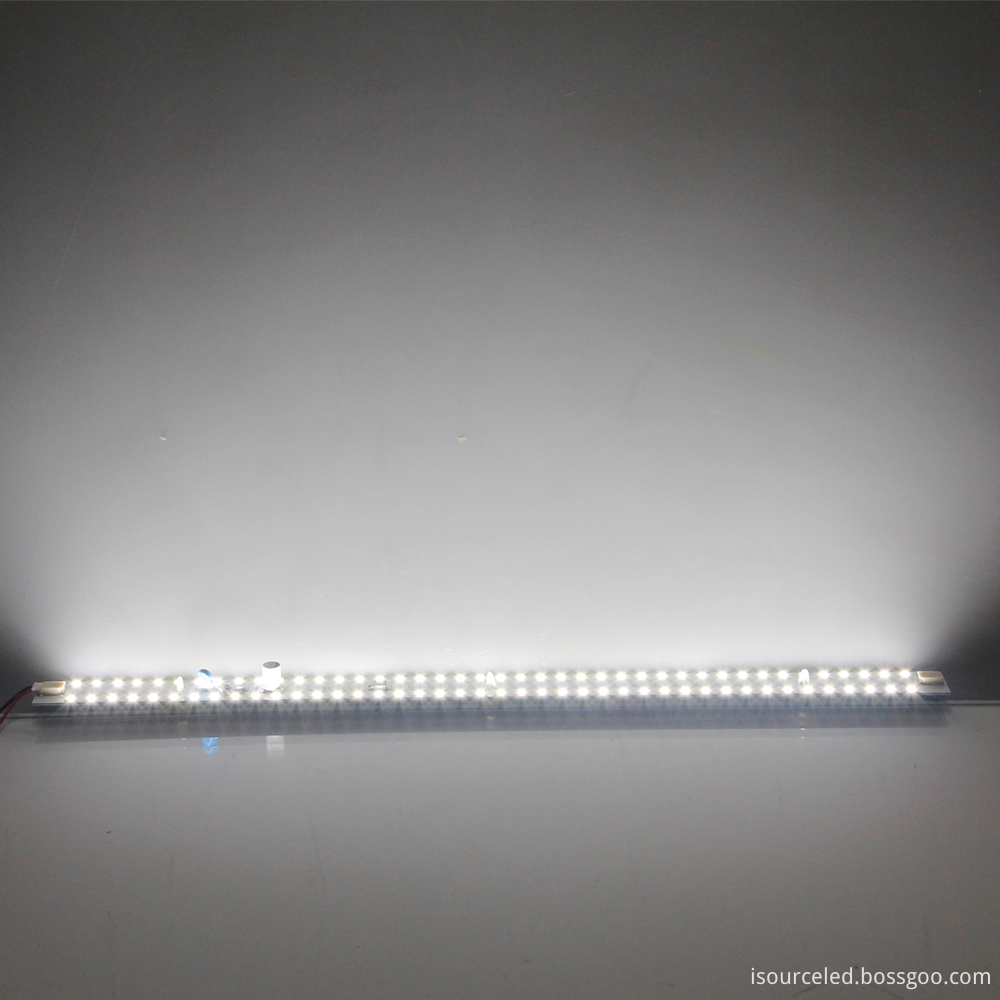

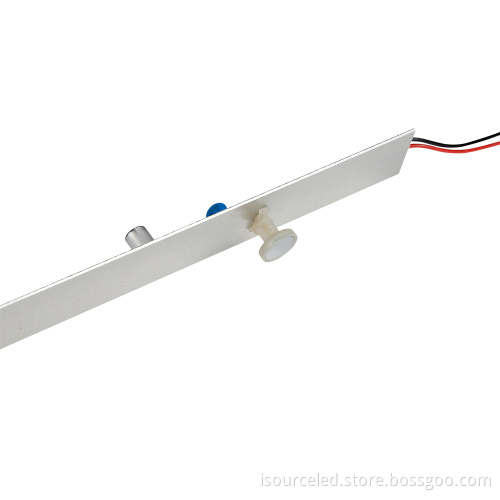

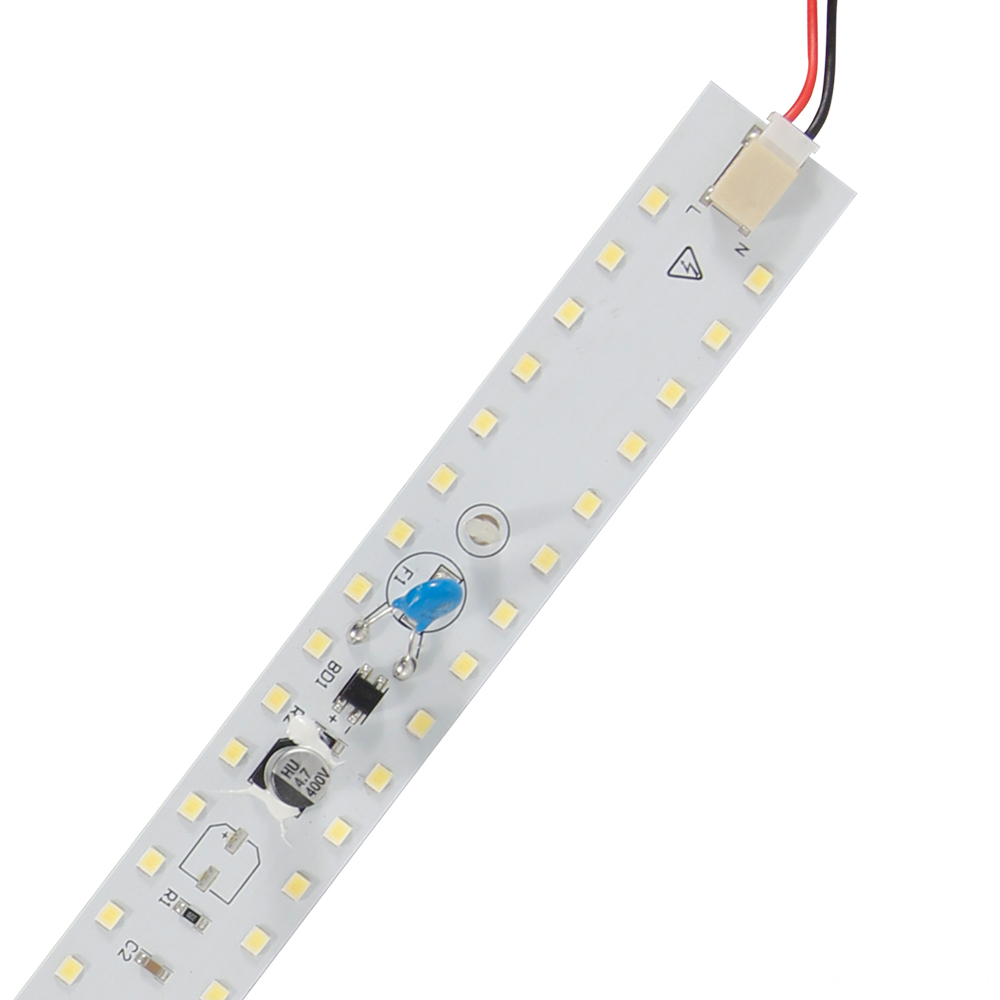

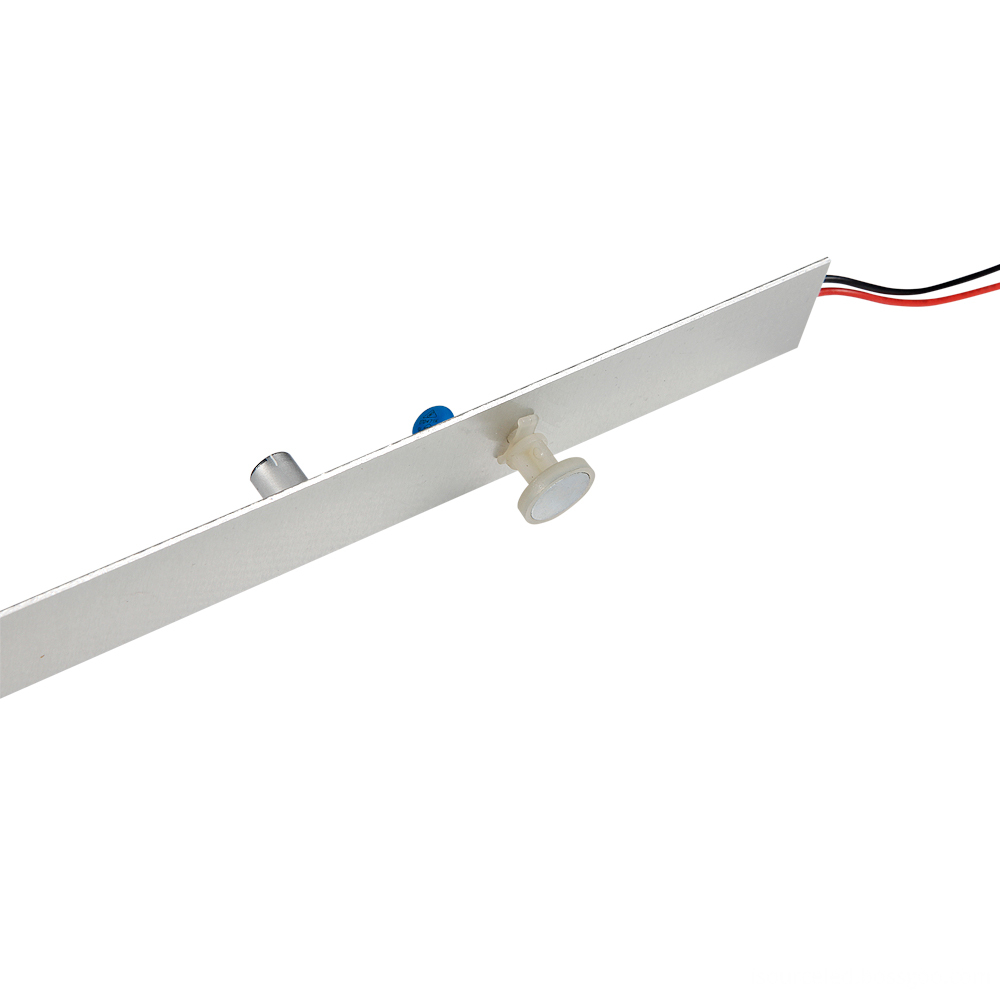

The process of the White LED board SMD LED Module 9w consists of 84 LED SMD5050 lamp beads, rectangular light board, white light (PW) 5000-6500K, input current 0.62A, luminous flux 938 lm, luminous efficiency 105.3 lm/w, power: 9W, model: EF094001, module net weight 42 G, size: 420mm*27mm*1.2mm, suitable for industrial lighting, indoor home lighting.
Shenzhen Dianjiang lighting co., LTD., Perfect advanced automated production equipment, strong r & d team, scientific and perfect quality, specializing in the production of led modules, ceiling light Led module, ceiling lights, uvc light, uv lamp, uv sterilizer lamp, uv germicidal lamp, uv disinfection lamp, solar street lights, led downlights, led flat panel.
rgb smd led module Specifications:
Wrking voltage: AC220-240V 50HZ
Module power : 9W
Luminous flux: 10-25lm/pcs
Light color: white light
Waterproof: No
SMD type: 84 LED SMD5050
84PCS SMD5050 white light rgb smd led module Technical Data:
|
Type |
BF094200-1 |
|
Input Voltage |
AC220-240V 50HZ |
|
Input Current |
0.063A |
|
Power |
9W |
|
Power Factor |
0.596 |
|
Insulation Class |
ACW>2KV |
|
Operating tempeture |
-20~45℃ |
|
luminous |
976 lm |
|
luminous efficiency |
106.5 lm/w |
|
CCT |
5000-6500K |
|
Ra |
85.4 |
|

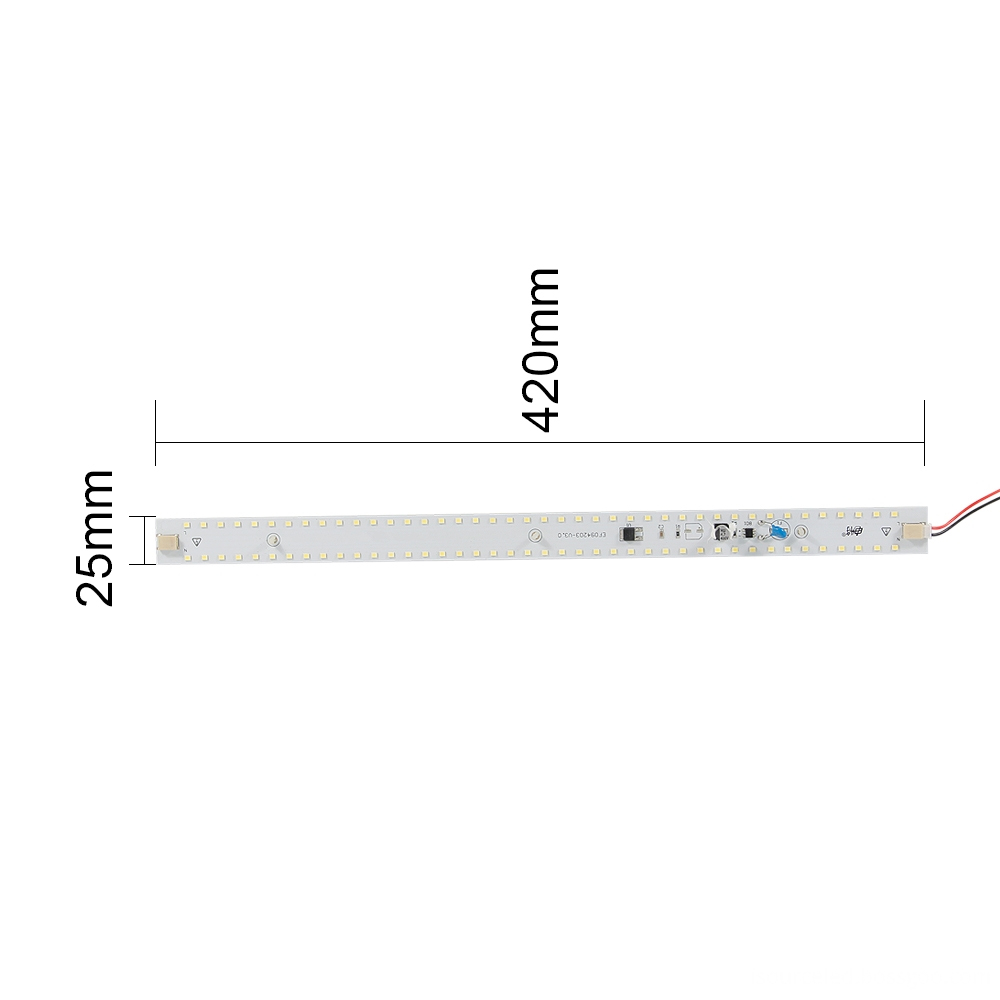

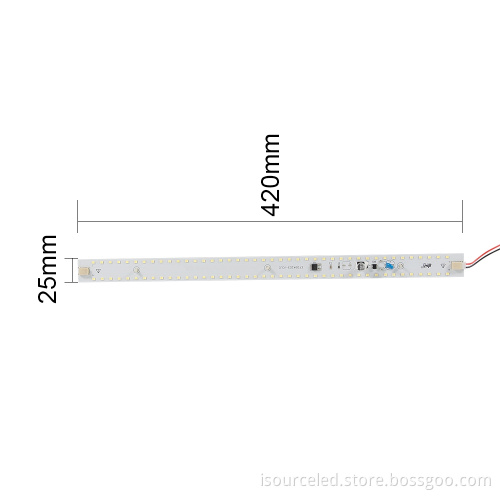

Size |
Round 420*25*1.2mm |
|
Weight |
42 g |
|
Thermal Conductivity |
1.0W/m.K |
Overtemperature protection function, IC will automatically reduce the output current to control the temperature rise of the substrate,
No need to drive, wiring can be, 3 years replacement, full light, no flash screen.
84PCS SMD5050 white light rgb smd led module feature:
- Green lighting design, soft light, beautiful appearance, no stroboscopic phenomenon.
- Good PCB board, embedded and hanging wire, easy to install. - Widely used in ceiling lights, ceiling lamps.
- Advertising logo backlit, advertising light box backlight.
- Commercial logo backlighting, stage backlighting, message display backlighting, home decor, hotels, clubs, shopping malls.
- Architectural lighting, boutique atmosphere lighting.
- Backlighting, indoor lighting, advertising sign lighting, industrial lighting.
- Decorative lights for vacations, events, exhibitions, borders or outline lighting.
our team
Isource lighting Co., Ltd is a professional company that globally operates LED lighting product models.
All of our products are qualified with UL, cULs, ETL, cETL, Energy Star, DLC, CE, ROHS, SAA certificates.
Isource lighting Co., Ltd Illuminate you and me, Brighten the Light, walk together.
