Square Customized AC smd 2835 9W Ceiling Module

Square custom AC smd 2835 9W ceiling module introduction:
The square custom AC smd 2835 9W ceiling module is made of input current 0.063A, power: 9W, square shape, model: AF9W, square custom AC smd 2835 9W ceiling module net weight 38 G, size: 140mm*70mm*1.2 Mm, consisting of 56 lessons LED lamp beads, life can reach more than 30,000 hours, warm white light (WW) 2700-4500k, no flash screen, luminous flux 953 lm, luminous efficiency 103.8 lm / w, square custom AC smd 2835 9W ceiling module is The whole piece of 1.25MM thick aluminum substrate is used for ceiling lamps, panel lights and floodlights.

Shenzhen Dianjiang lighting co., LTD., Perfect advanced automated production equipment, strong r & d team, scientific and perfect quality, specializing in the production of led modules, ceiling light Led module, ceiling lights, uvc light, uv lamp, uv sterilizer lamp, uv germicidal lamp, uv disinfection lamp, solar street lights, led downlights, led flat panel.

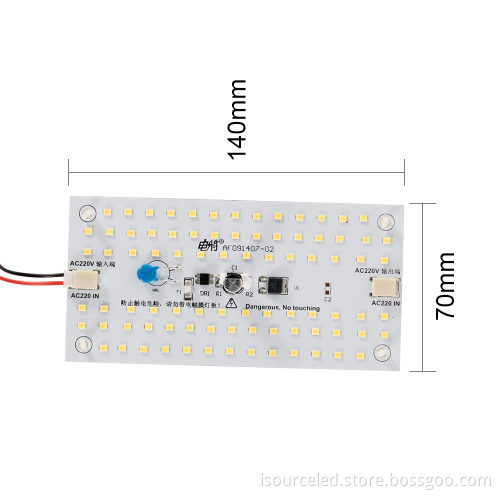

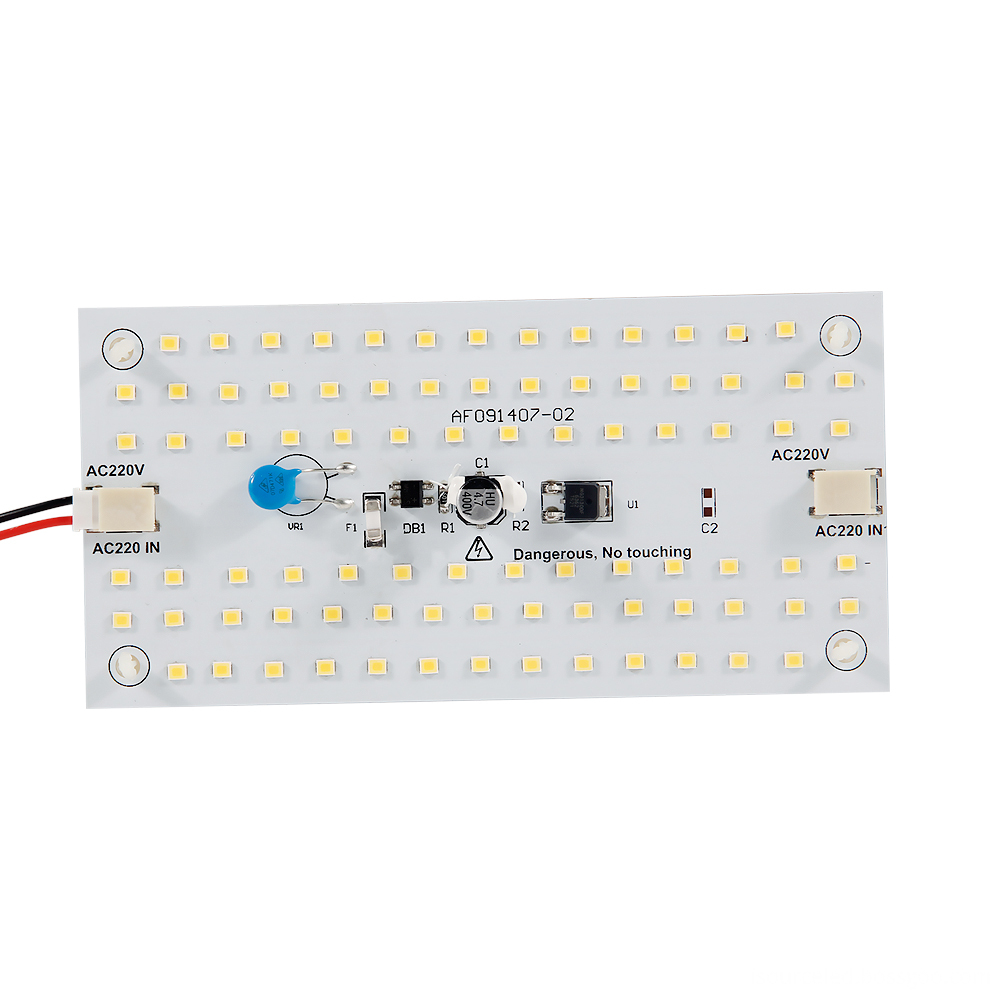

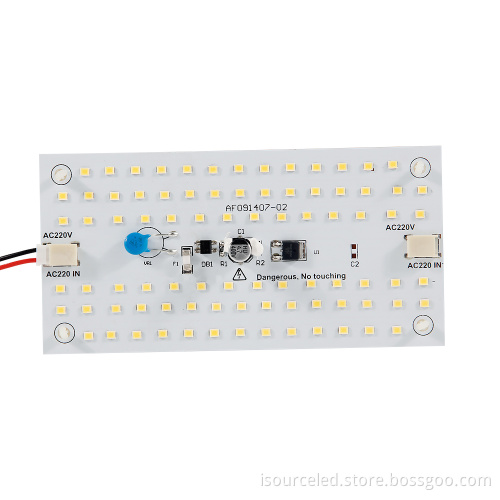

Frontal picture of square custom AC smd 2835 9W ceiling module

The module design adopts PCT2835 SMD LED lamp bead constant current technology, which has high efficiency, low heat and high constant current precision.

Technical parameters of square custom AC smd 2835 9W ceiling module:

1, energy saving.

2, life LED lights are long.

3, the applicability is good, because the single LED is small in size and can be made into any shape.

4, the response time is short.

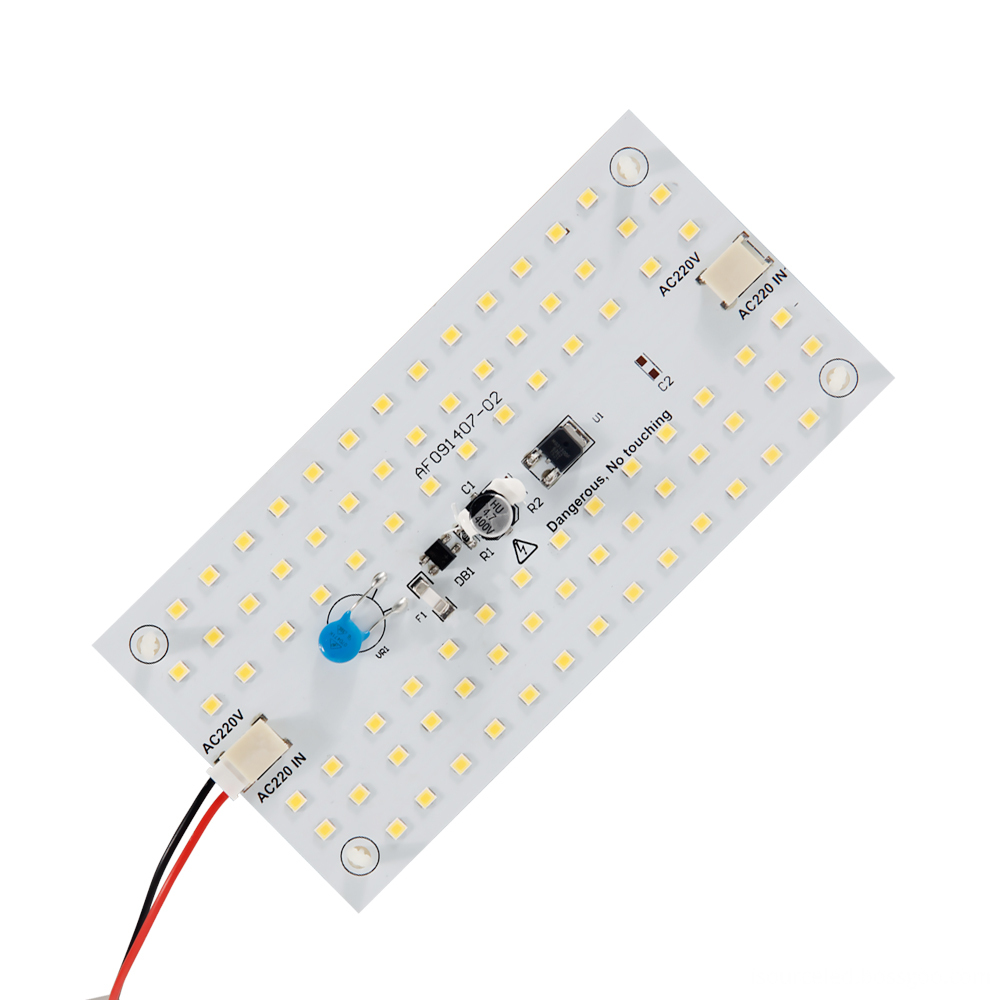

Side picture of square custom AC SMD 28359W ceiling module

 Using PCT2835 patch LED bead, color rendering index is more than 80.

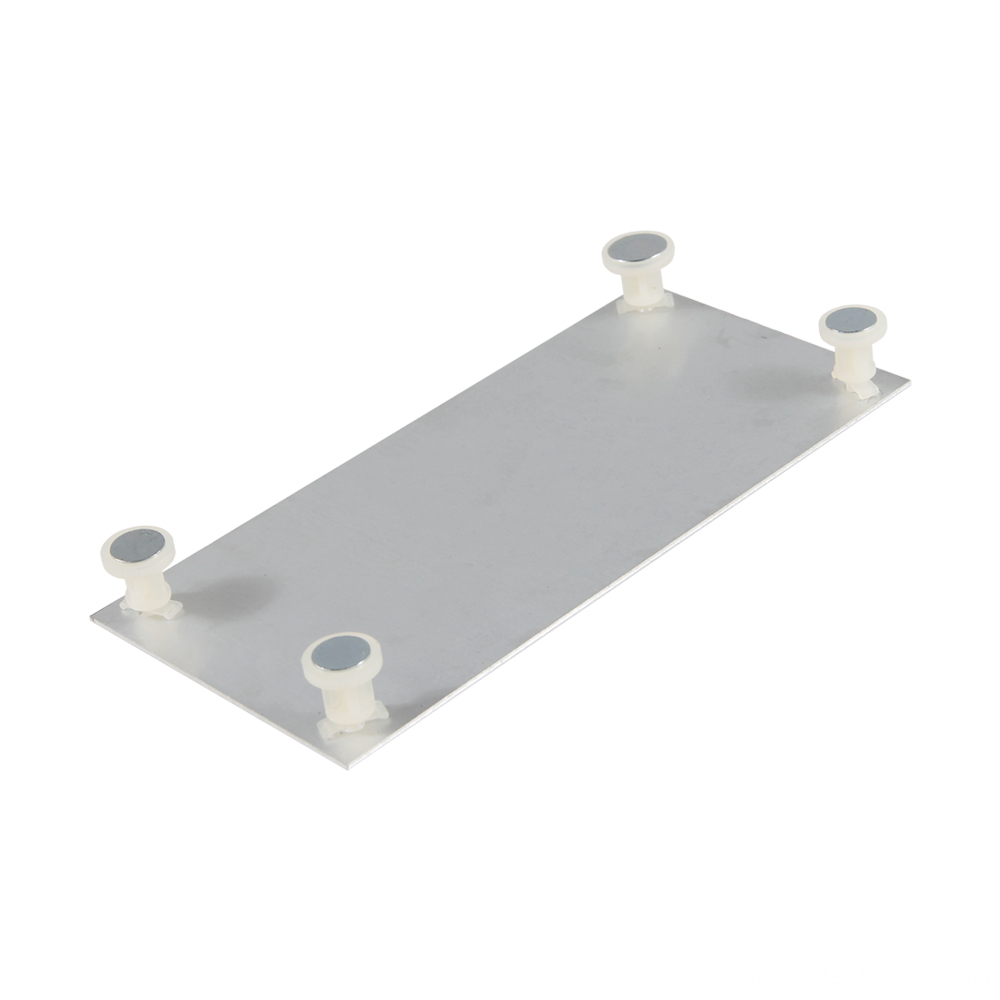

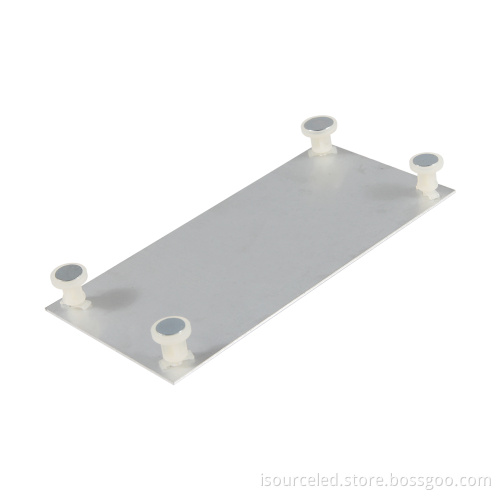

Bottom picture of square custom AC smd 2835 9W ceiling module

Aluminum substrate material, reasonable structural design, the base has mounting holes, easy to install.

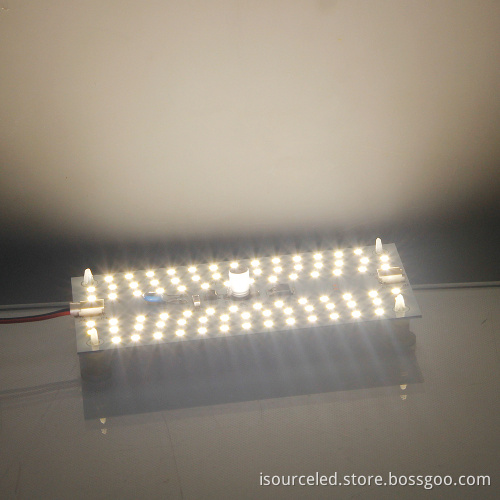

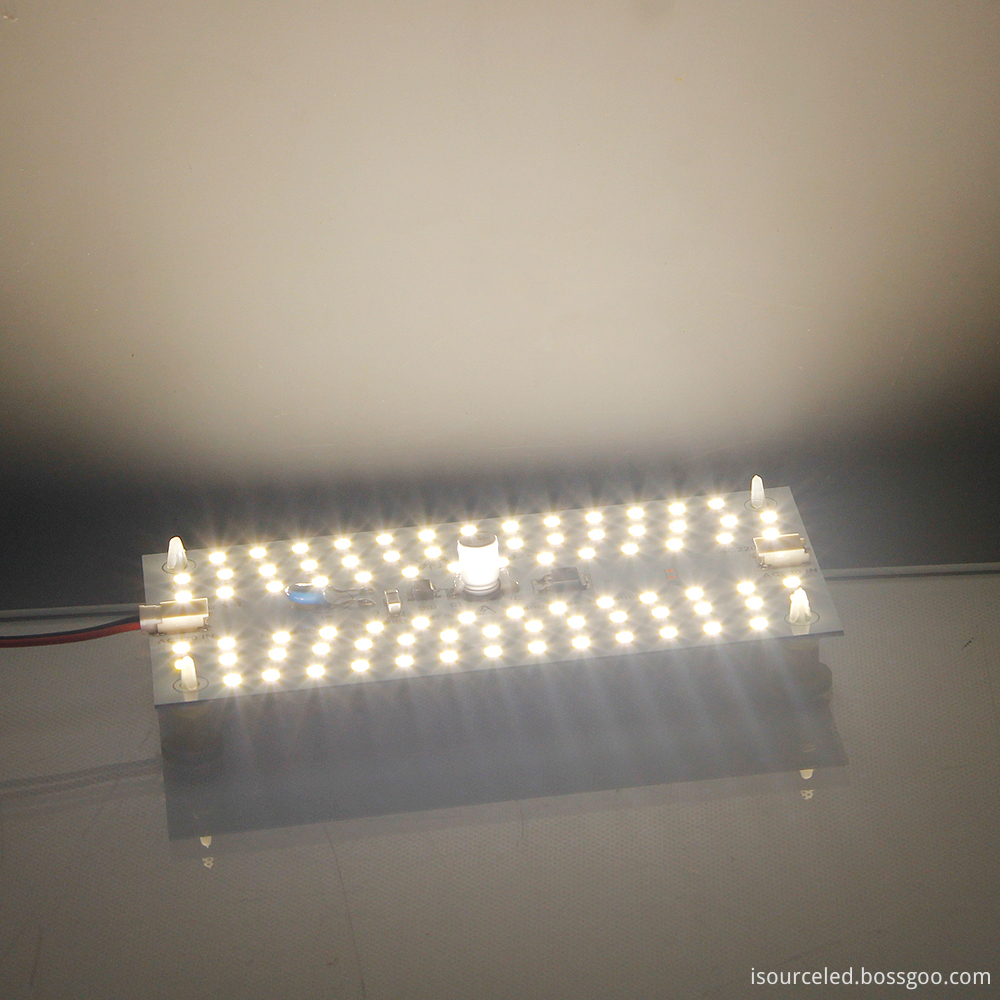

Glowing map of square custom AC smd 2835 9W ceiling module

The original packaging process is used to emit energy in the form of electrons. The product has no spot color circle, high color rendering,

 vibration resistance and good beam concentration consistency.

Product function of square custom AC SMD 28359W ceiling module:

1. linear constant-current IC control, photoelectric integration, stable performance, reliable, long life.
2. Three-stage integrated circuit design, the power change rate is within ±5% when the input voltage fluctuates between 220-240vac;

   Constant power over voltage current protection function.
3. Overtemperature protection function, IC will automatically reduce the output current to control the temperature rise of the substrate ,

   when the substrate temperature is too high.
4. Using PCT2835 patch LED bead, color rendering index is more than 80.
5. There is no EMI, through the CCC, CE, EMC, LVD, SAA, UL, FCC, ROHS certification, etc.
6. No ultraviolet , electromagnetic wave radiation.
7. The size of 40W PCB board can be customized according to customer requirements.
8. No need to drive, wiring can be, 3 years replacement, full light, no flash screen.
