Warm white light 24W LED ceiling light module

Warm white light 24W LED ceiling light module

USD5.35

200-499 Piece/Pieces
USD5.25

500-999 Piece/Pieces
USD5.05

≥1000 Piece/Pieces

Payment Type:: L/C, T/T, D/P, Paypal

Incoterm:: FOB, CFR

Min. Order:: 200 Piece/Pieces

Min. Order:: 200 Piece/Pieces

Delivery Time:: 7 Days

Transportation:: Ocean, Land, Air

Port:: Shekou, YANTIAN

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Shen Zhen
Productivity:	600
Supply Ability:	30000 pcs/month
Payment Type:	L/C,T/T,D/P,Paypal
Incoterm:	FOB,CFR
Certificate:	CE, RoHS, FCC,CCC,PSE, ISO:9001
Transportation:	Ocean,Land,Air
Port:	Shekou,YANTIAN

Product Description

Introduction of 24W warm white light ceiling lamp module:

With the rapid development of LED technology, its luminous efficiency is making an amazing breakthrough.

The process of warm white 24W LED ceiling lamp module is input current 0.191A, power: 24W, the shape is round monolithic, model: GY24-2, LED warm white light 24W ceiling lamp module net weight is 84 G, size: 210mm* 1.2mm, consisting of 84 lessons LED lamp beads, life can reach more than 30,000 hours, warm white light (WW) 2700-4400k, no flash screen, luminous flux 2534.47 lm, luminous efficiency 107.2 lm / w, LED warm white 24W ceiling lamp module It is a 1.25MM thick aluminum substrate, ceiling lamp, and indispensable product module material in the panel lamp.

Shenzhen Dianjiang lighting co., LTD., Perfect advanced automated production equipment, strong r & d team, scientific and perfect quality, specializing in the production of led modules, ceiling light Led module, ceiling lights, uvc light, uv lamp, uv sterilizer lamp, uv germicidal lamp, uv disinfection lamp, solar street lights, led downlights, led flat panel.

Warm white light 24W LED ceiling light module video

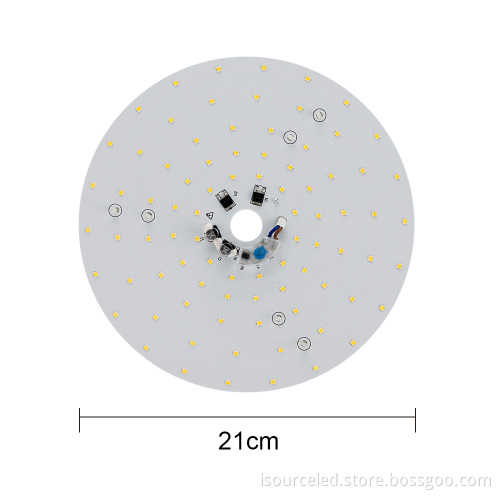

Warm white light 24W led ceiling light module front

The luminaire design adopts the chip-type LED lamp bead constant current technology, which has high efficiency, low heat and high constant current precision.

Gy24nuanbai5

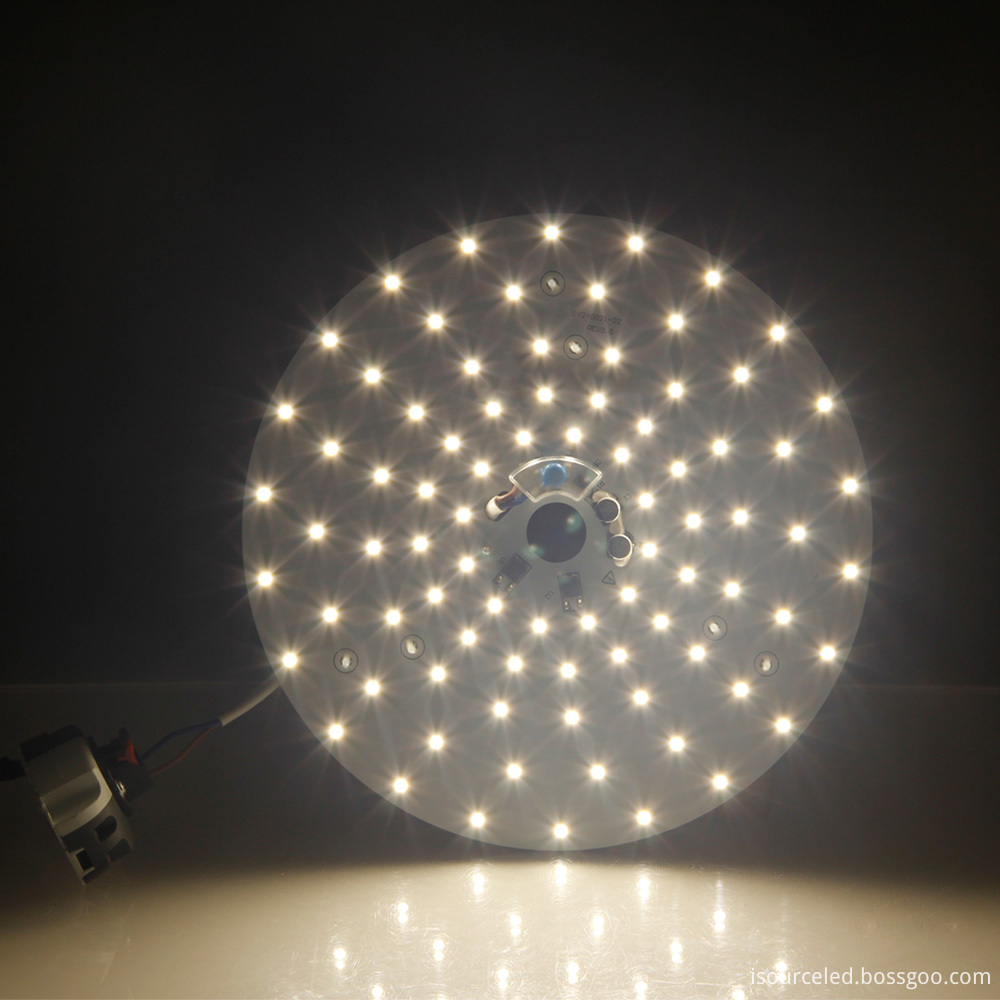

Luminescent Chart of 24W Warm White LED Roof Lamp Module

Technical parameters of warm white light 24W ceiling lamp module

Type	GY2402
Input Voltage	AC220-240V 50HZ
Input Current	0.193A
Power	24W
Power Factor	0.589
Insulation Class	ACW>2KV
Operating tempeture	-20~45℃

luminous	2538 lm
luminous efficiency	104.2 lm/w
Color temperature	2700K-4500K
Color rendering index	86

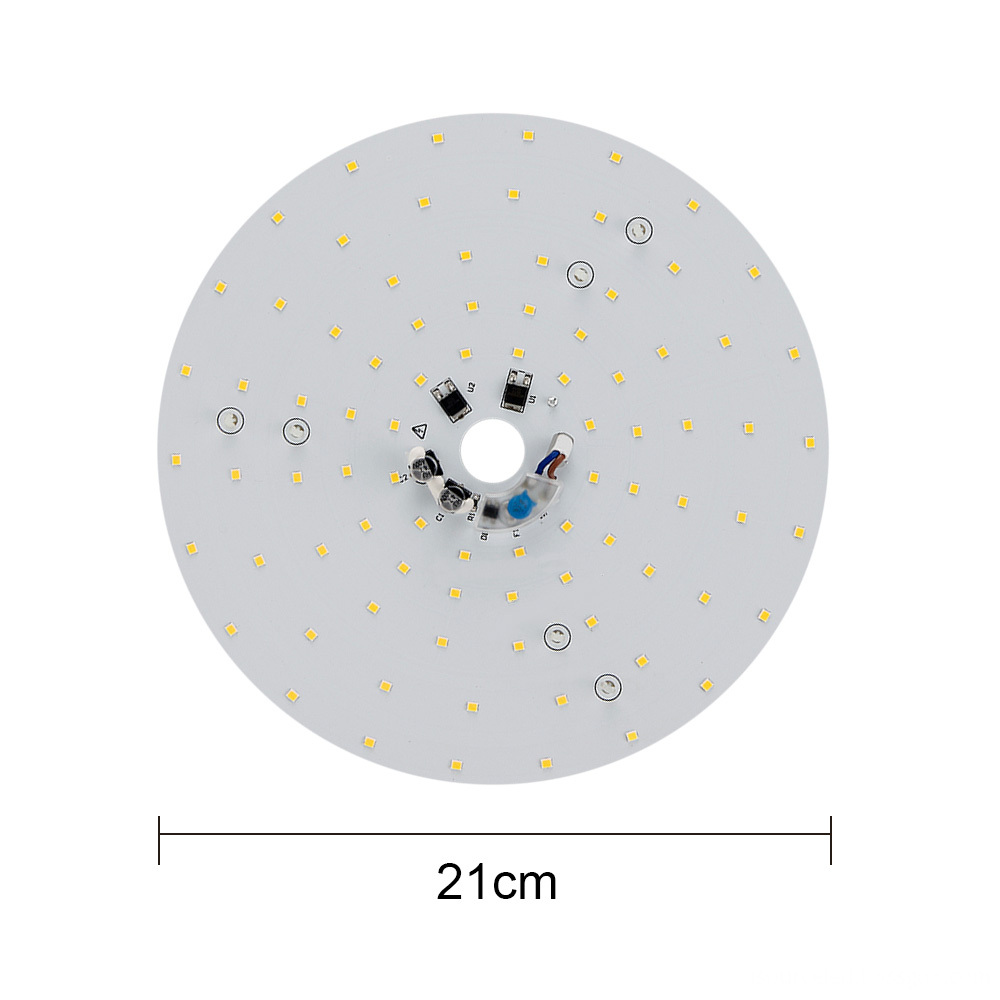

Size	Φ210*1.2mm
Weight	130 g
Thermal Conductivity	1.0W/m.K

1, energy saving.

2, life LED lights are long.

3, the applicability is good, because the single LED is small in size and can be made into any shape.

4, the response time is short,

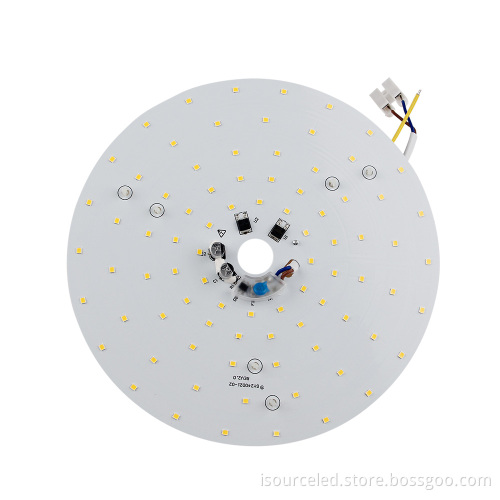

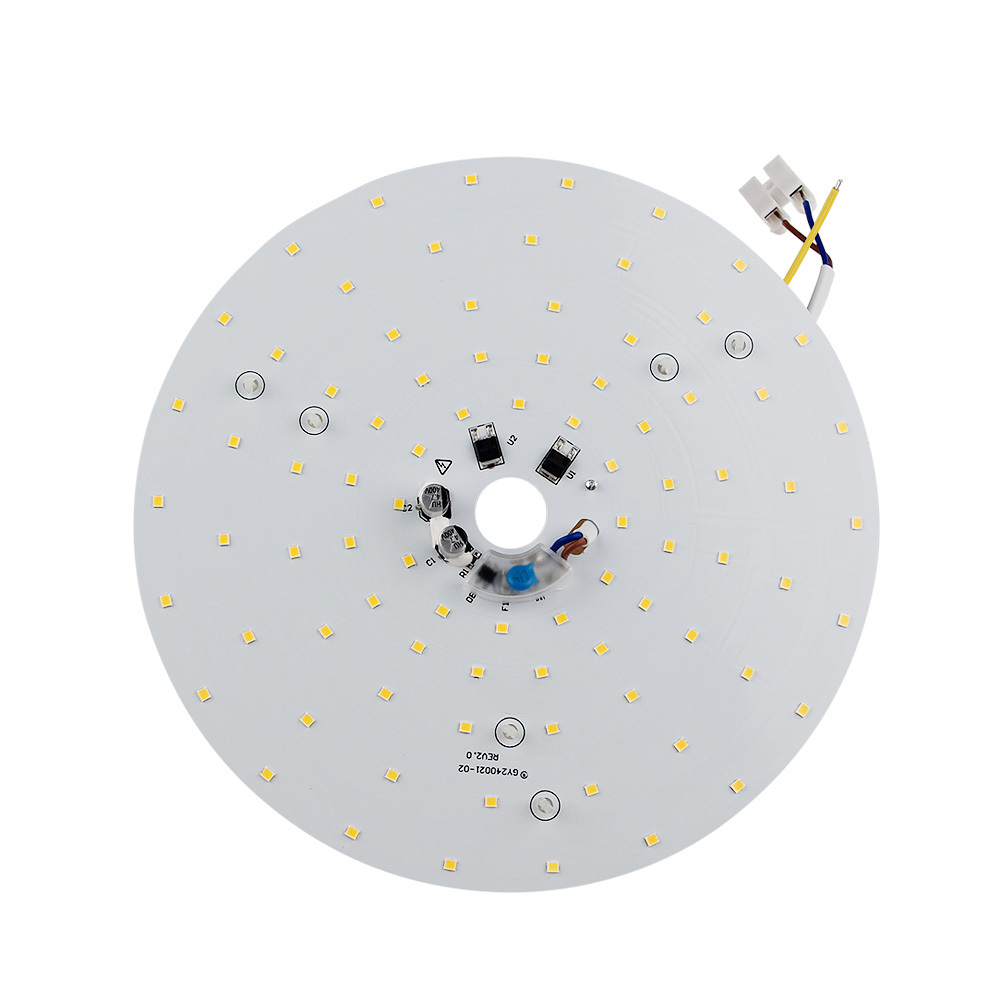

Warm white light GY2402 LED ceiling light module

Using the most advanced light distribution technology, the best optical distribution, the output rate of the lamps can reach more than 90%

Side view of warm white light 24W LED ceiling light module light

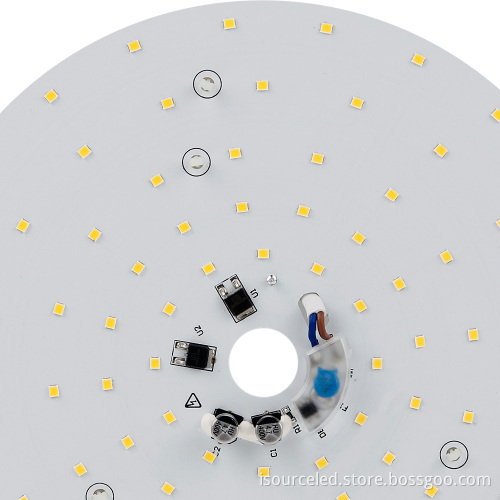

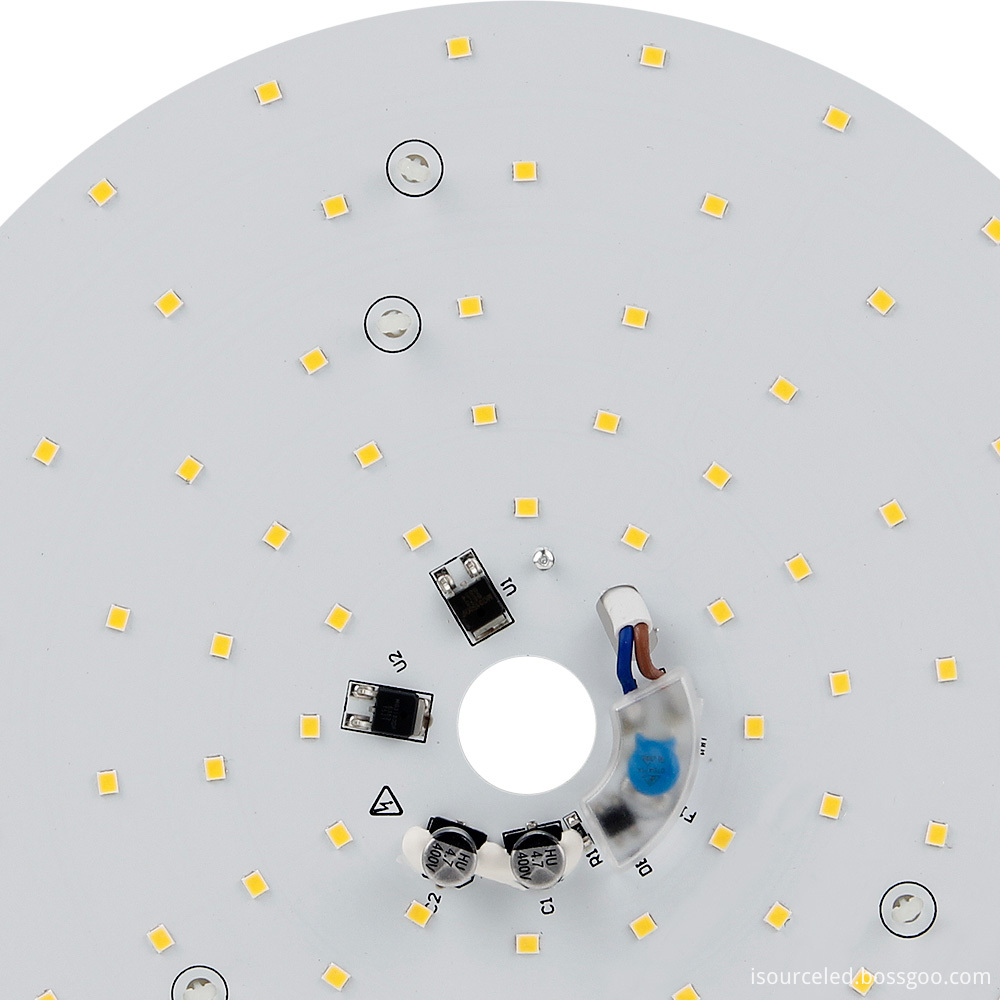

PCT2835 aluminum substrate material, reasonable structural design, the base has a mounting hole, easy to install.
