Warm white 15W LED ceiling light module

The process of warm white 15W LED ceiling lamp module is input current 0.0671A, power: 15W, life can reach more than 30,000 hours, shape is round block, model: GY15-2, LED warm white 15W ceiling lamp module net weight 63 G, size: 140 mm*1.2 mm, composed of 58 lesson LED beads, warm white light (WW) 2700-4400k, no flash screen, light flux 1534.47, light efficiency 106.8 lm/w, LED warm white 15W ceiling lamp module is. The whole 1.25MM thick aluminum substrate, ceiling lamp and panel lamp are indispensable product module materials.

Shenzhen Dianjiang lighting co., LTD., Perfect advanced automated production equipment, strong r & d team, scientific and perfect quality, specializing in the production of led modules, ceiling light Led module, ceiling lights, uvc light, uv lamp, uv sterilizer lamp, uv germicidal lamp, uv disinfection lamp, solar street lights, led downlights, led flat panel.

Warm white 9W LED ceiling lamp module video

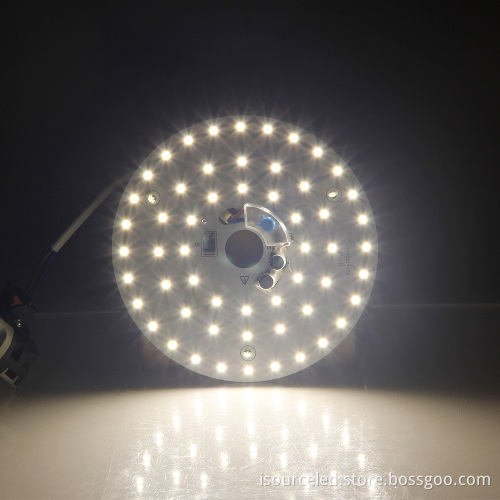

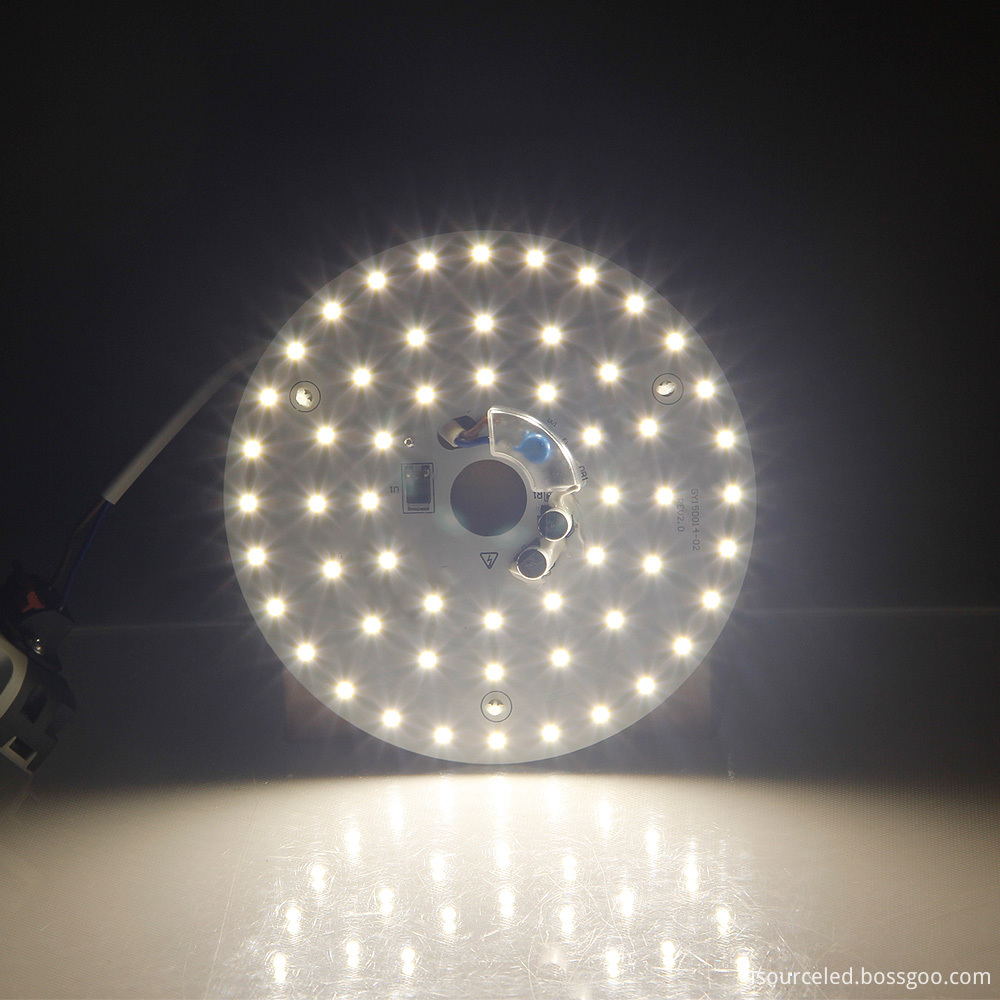

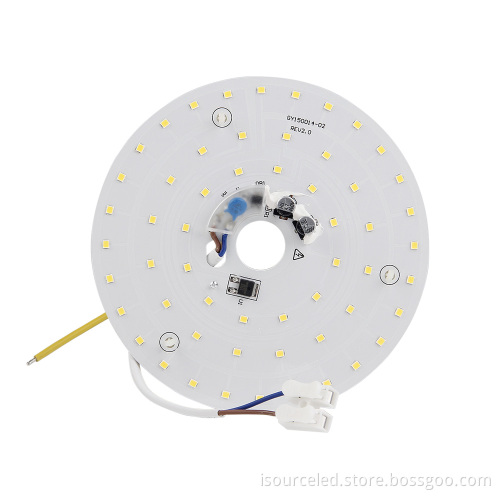

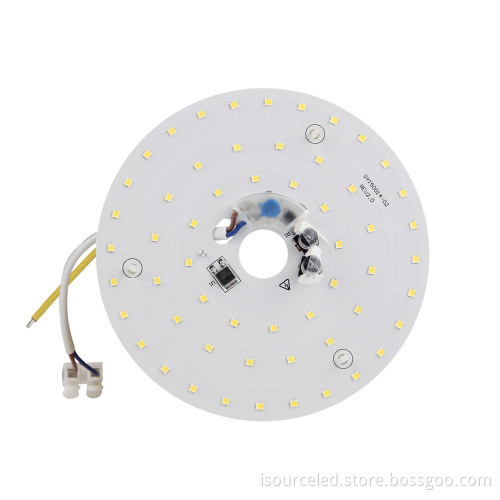

Front of warm white 15W ceiling lamp module

The lamp design adopts the patch LED bead constant current technology, which has high efficiency, low heat and high constant current accuracy.

Luminescent Chart of 15W Warm White LED Roof Lamp Module

The product has no spot color circle, high color rendering, vibration resistance and good consistency of beam concentration.

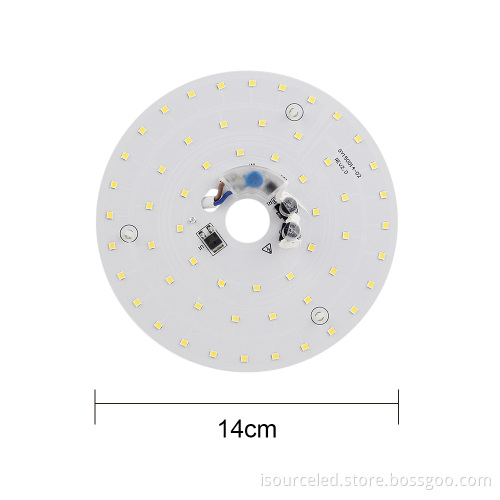

Technical parameters of warm white 15W ceiling lamp module:

Warm white light 15W led ceiling lamp module product function:

 1. Energy saving.

 2. Long life LED lamp.

 3. Good applicability, because the size of a single LED is small, it can be made into any shape.

 4. Short response time.

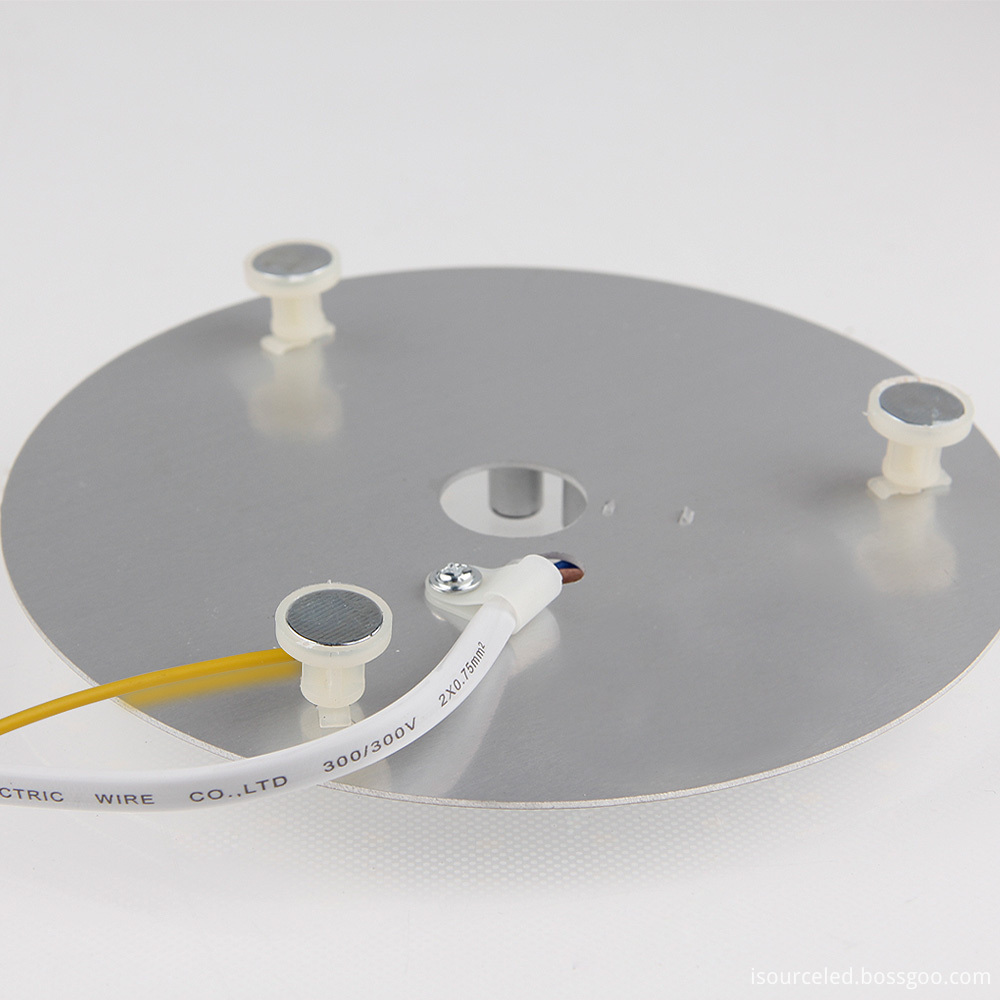

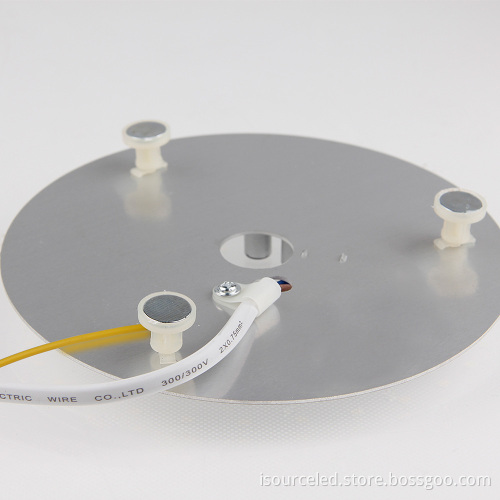

Warm white light bottom picture of 15W led ceiling light module

PCT2835 aluminum substrate material, reasonable structural design, the base has a mounting hole, easy to install.

Our team

LED ceiling lamps and LED light sources.
Since the establishment of the company, the technology has been continuously innovated, and has made major breakthroughs in the field of high-power LED lighting, and has developed a series of LED lighting products. It is a powerful high-tech enterprise and is a Research and development unit for semiconductor LED lighting engineering.

If you have any question, please feel free to contact us.
