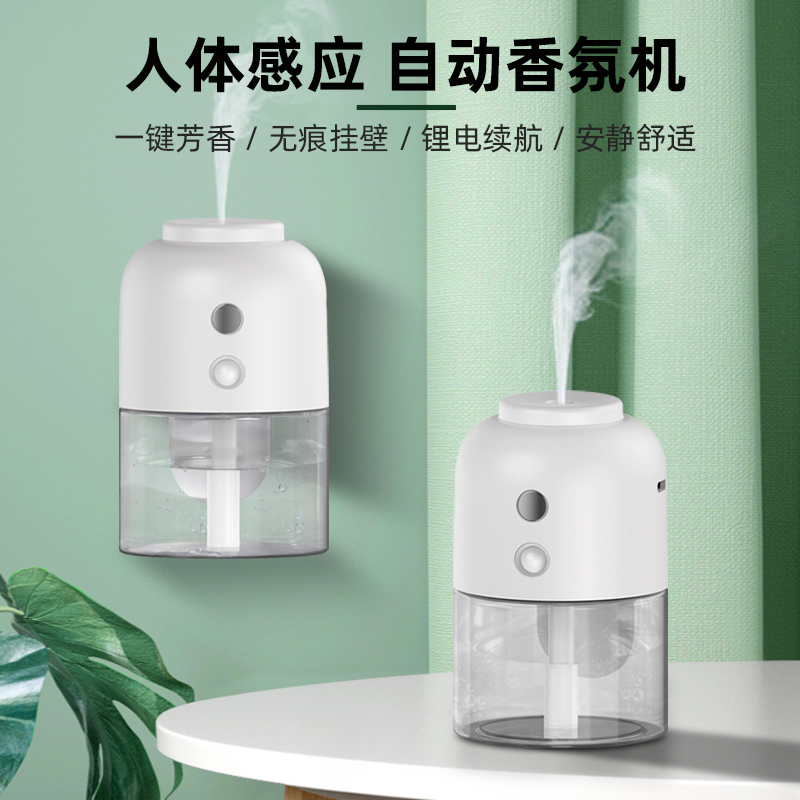

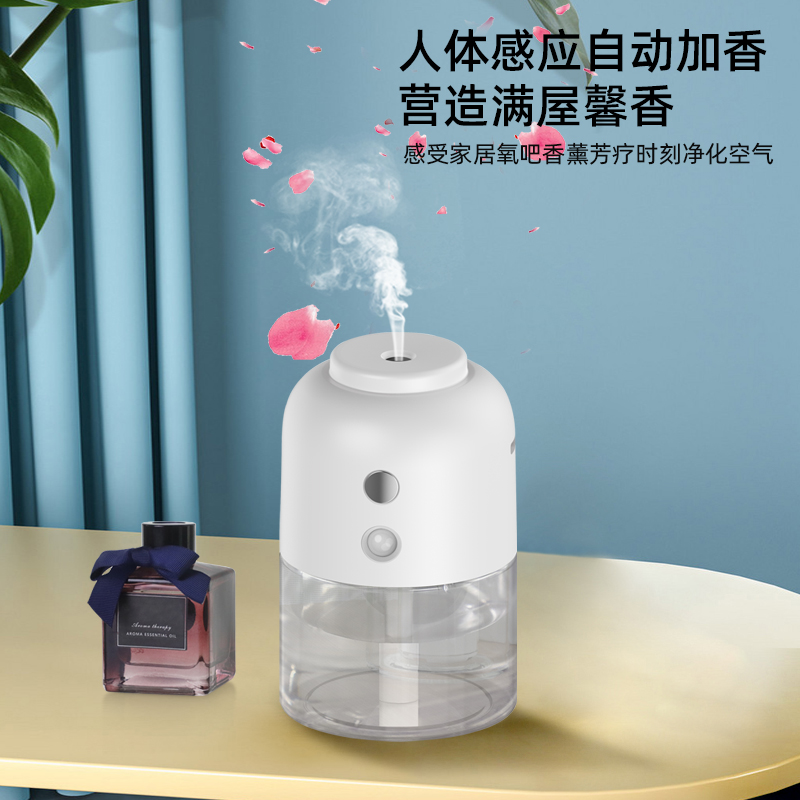

Wall Mounted Smart Sensing Aroma Diffuser

Product introduction：

This Oil nebulizer which has a 150ml volumetric flask and can work for up to 27.5 hours. It is equipped with an infrared body sensor, which can automatically spray when sensing the human body, and can also set a timed spray, with a variety of options to meet the different use needs of consumers.

Model No.: DT-2236 ultrasonic diffuser

Brand: ODM&OEM Services

Service system: Free Spare Parts

Warranty Service: 1 Year

appropriate types: Car, Hotel, Household

Kind of power: Usb, Battery

species: Ultrasonic Humidifier

Installation method: Usb

Certification: Cb, Ce, Emc, Rohs

place of origin: China

Humidity control method: Manual

Voltage (V):: 5

Max time:: 27.5Hours

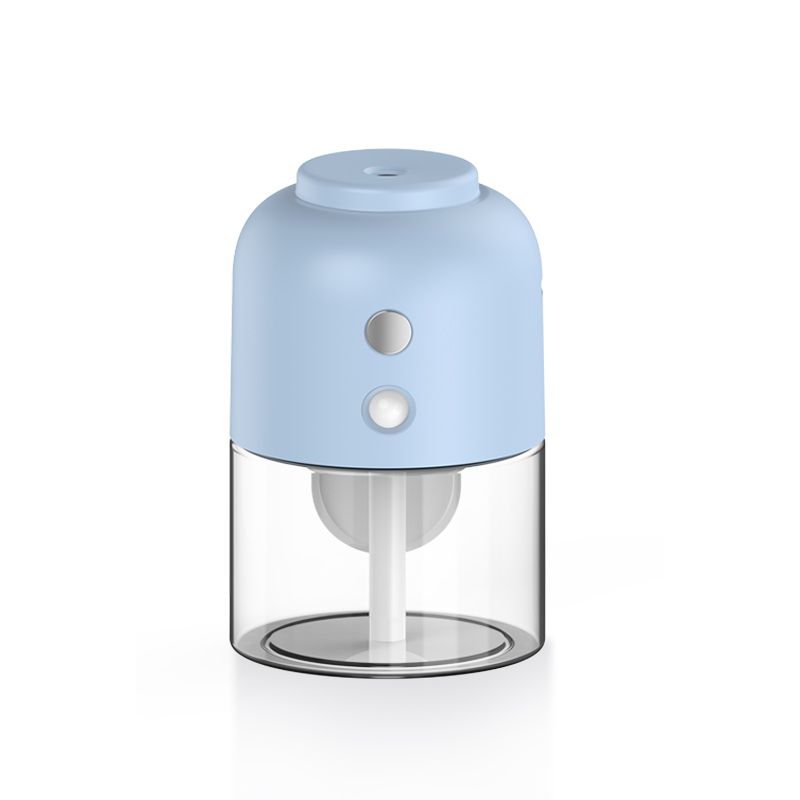

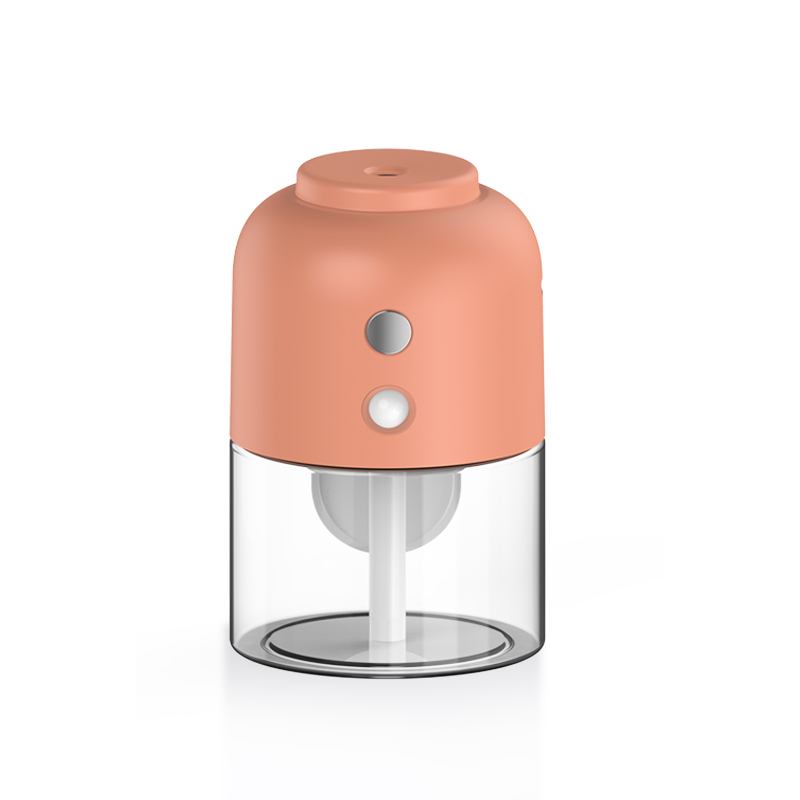

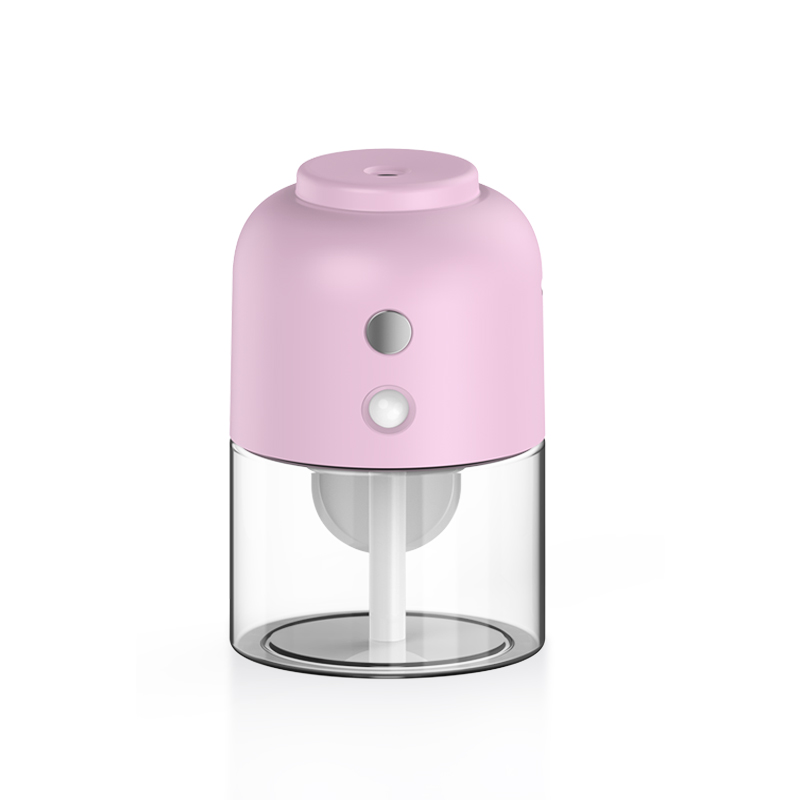

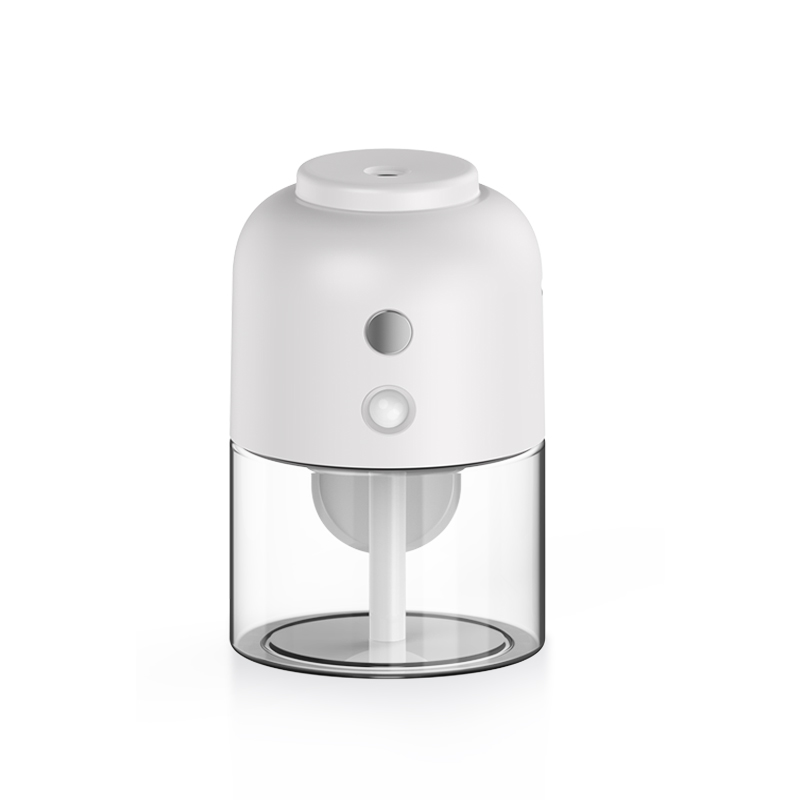

Coor: White/Pink/Blue/Brown

Battery:: 1200mAh

Application:: Car

Power (W):: 1.7

Capacity:: 150ML

Noise:: <30dB

Mist output:: 0.8-1ml/hr

Product size: (D) 69mm * (H) 108mm

Operation methods

1. In the off state, turn counterclockwise to open the water tank.

2. Take out the sponge stick in the machine and add water or aromatic water.

3. Rotate clockwise to replace the water tank.

4. The fragrance aroma diffuser has a built-in lithium battery. After turning on the machine, there is no indicator light on the machine, and the product enters standby mode.

5. Switching machine:

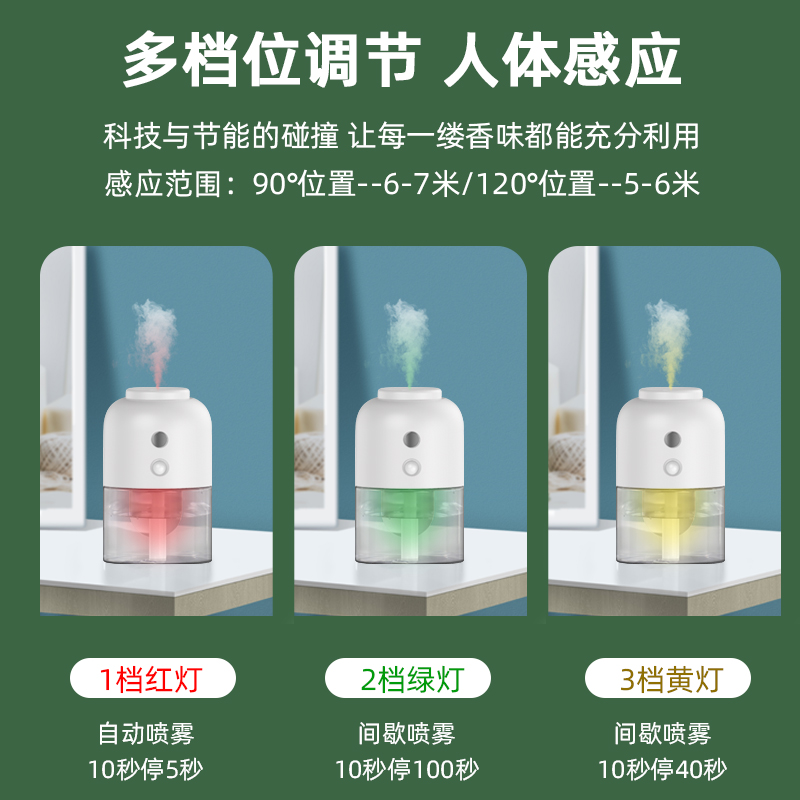

(1) Long press the function button to turn on the machine. In the human body induction mode, the indicator light will be red. After the induction, it will automatically spray for 10 seconds and stop for 5 seconds. After sensing again, the cycle continues in turn.

Remarks: The indicator light will be on every time it is sensed (the red light will turn off after 5 seconds).

(2) Short press again to enter the automatic cycle working mode, the indicator light turns green (it turns off after 5 seconds), the machine sprays intermittently for 10 seconds and stops for 100 seconds, and the cycle /continues in turn.

(3) Short press again to enter the automatic cycle working mode, the indicator light turns yellow (turns off after 5 seconds), the machine sprays intermittently for 10 seconds and stops for 40 seconds, and the cycle continues in turn.

(4) Short press again to return to the first mode, and so on.

(5) Long press for 1.5S to shut down (in any mode, press and hold to turn off the fog, and the red light will flash 3 times).

Warning

1. The principle of the machine is microporous atomization, it is recommended to use clean water or aromatic water, do not use oily, strong acidic liquids;

2. The location of the machine should be far away from heat sources, radiators, heaters, and other heat generating equipment;

3. When the machine is spraying, please keep away from the fire source to avoid fire;

4. Do not immerse the machine in the liquid, and do not let the liquid immerse the machine;

5. Do not disassemble or repair the machine by yourself.
