Water cooling and freezing unit
- Payment Type:
- L/C, T/T
- Incoterm:
- FOB, CFR, CIF
- Delivery Time:
- 30 Days
- Transportation:
- Ocean, Land, Air
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 500 |
| Supply Ability: | 5000 |
| Payment Type: | L/C,T/T |
| Incoterm: | FOB,CFR,CIF |
| Certificate: | ISO9001:2015 |
| HS Code: | 8418692090 |
| Transportation: | Ocean,Land,Air |
KC/KWB series industrial chiller is mainly applied in Plastic & Rubber industry; it can accurately control the molding temperature and shorten
the molding cycle, increase the product quality and improve the production efficiency. They are also widely used in Metal working, Mechanical &
Engineering, Chemical & Pharmaceutical, Food & Beverage, Laser, Electronics industry, Textile, Electroplate, Semi-conductor testing, Water jet,
Vacuum coating, Construction and Military,
Design features
¨ Adopted world famous brand compressors and high efficiency condenser and evaporator, ensure high cooling efficiency, low energy
consumption, low noise and long service life.
¨ Chilled water temperature range 5℃ to 35℃.
¨ R22 charged, CFC free type R407C, R410A, R404A, R134A for option, high cooling efficiency.
¨ Over sized evaporator and condenser ensure the chiller unit running under 45C high ambient temperature.
¨ Microcomputer control system offering accurate temperature stability within ±1℃.
¨ Low noise and big volume air blower.
¨ Standard equipped Iron pump, stainless steel or high lift pump for option.
¨ Multi-protection devices ensure the chiller unit running safely.
¨ The innovative evaporator-in-tank configuration ensures a steady water temperature offered, as the evaporator also cools the tank itself,
reduces ambient heat gain, and increases the efficiency.
¨ KWB water cooled industrial chiller adopted shell and tube condenser, features speed heat dissipation and high cooling efficiency, it is good to
be used in High ambient temperature area with abundant water.
¨ KC air cooled industrial chiller adopted aluminum fin/copper tube type condenser, easy for cleaning and installation.
¨ Power supply: 1PH 220V/50HZ-----1/2HP to 2HP
3PH 380V/415V 50HZ-----3HP to 60HP

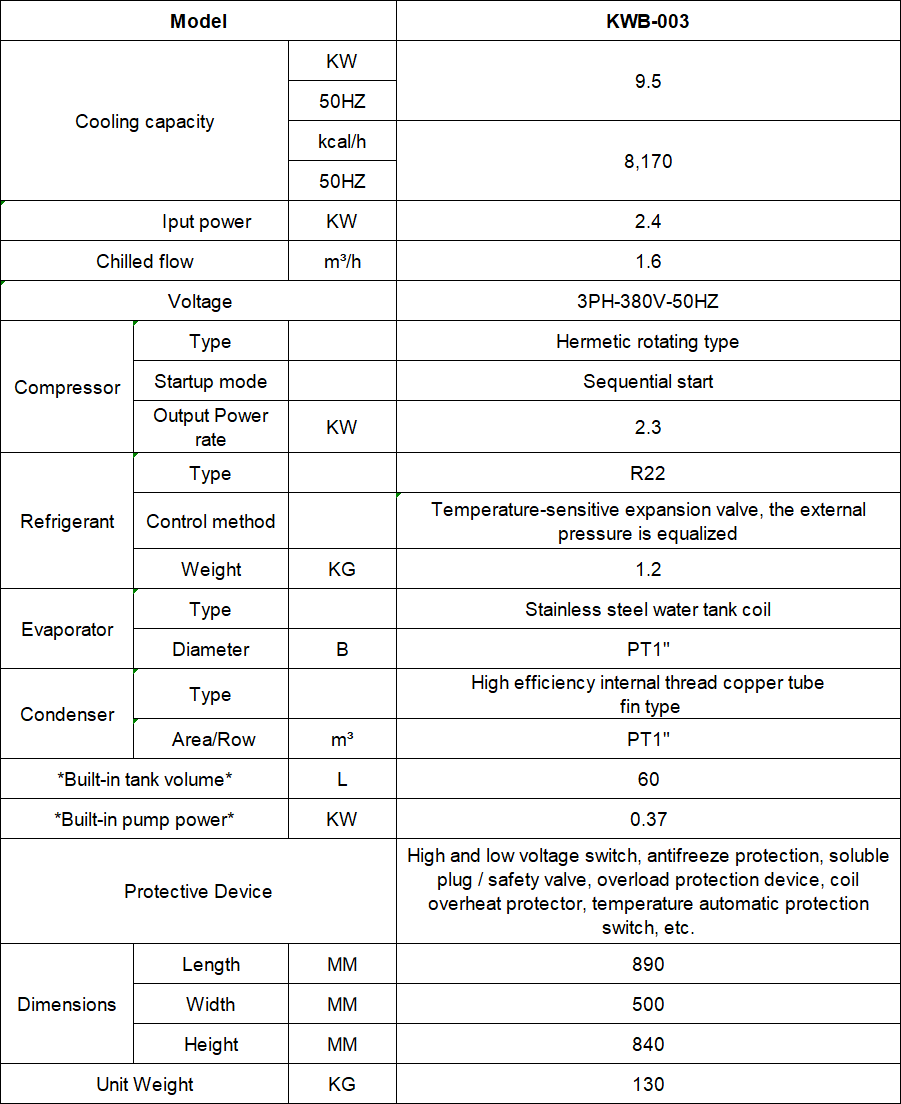

Note:1.Parameters of the above specifications:Inlet/oulet chilled fluid temperature:12℃/7℃ Inlet/oulet cooling water temperature:30℃/35℃
2.The above specifications are subject to change without notice, if there are special requirements, please ask for specifications before ordering
