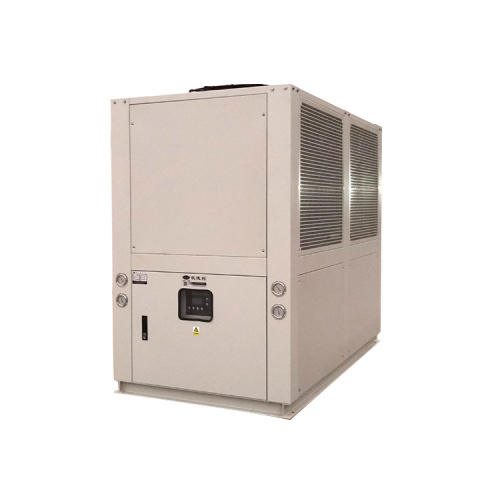

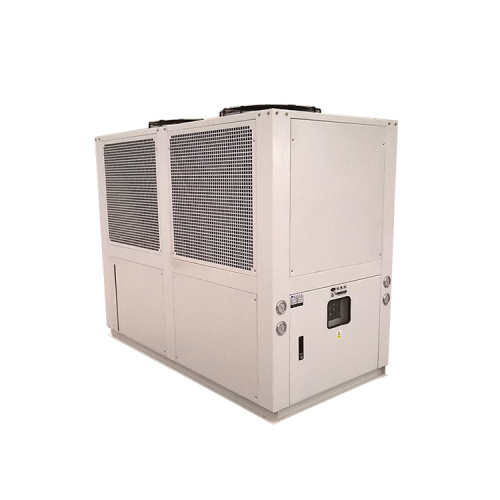

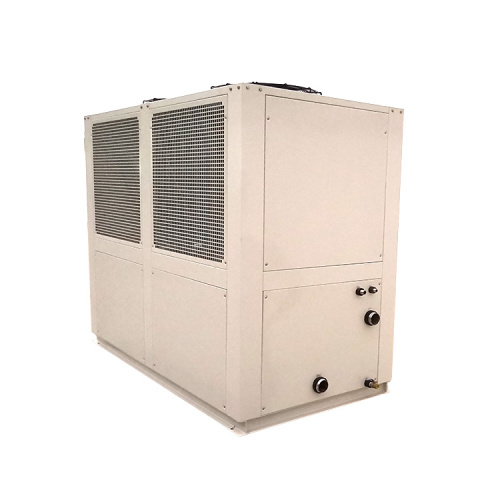

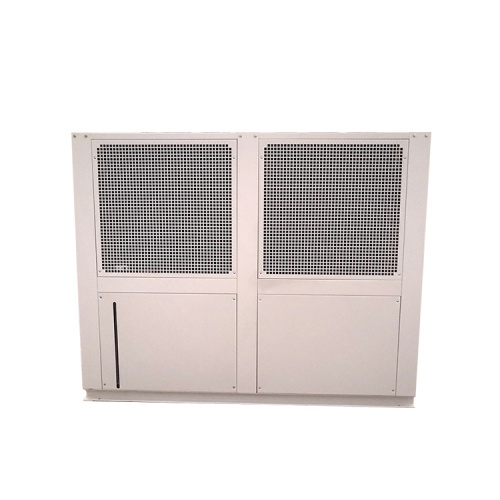

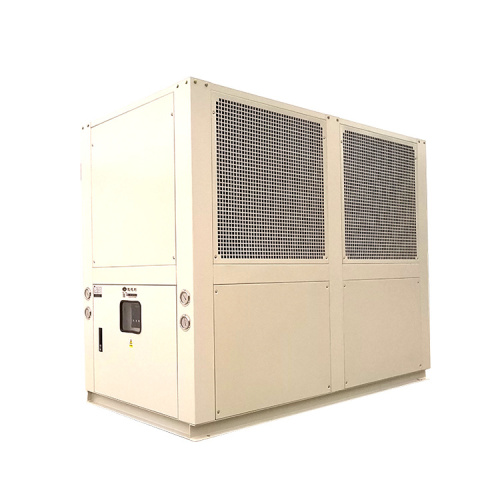

Kaydeli Industrial Air Chiller Water
- Payment Type:
- L/C
- Incoterm:
- FOB, CFR, CIF, EXW, FCA
- Min. Order:
- 1 Set/Sets
- Min. Order:
- 1 Set/Sets
- Delivery Time:
- 15 Days
- Transportation:
- Ocean, Land, Air
- Port:
- Shenzhen, Shekou, Yantian
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | China |
|---|---|
| Productivity: | 300sets/Month |
| Supply Ability: | 300sets/Month |
| Payment Type: | L/C |
| Incoterm: | FOB,CFR,CIF,EXW,FCA |
| Certificate: | ISO9001 |
| HS Code: | 8418692090 |
| Transportation: | Ocean,Land,Air |
| Port: | Shenzhen,Shekou,Yantian |
Product Description
Product Description
Design Features:
¨ W shape aluminum fin type condenser, assuring adequate heat exchanging area within smaller unit size
¨ High efficient evaporator with internal thread copper tube.
¨ Large air volume axial fan with metal blades. Motor separated from net-cover, fixed on exhaust port by metal
¨ Siemens PLC control, LCD touch screen interface.
¨ Standard design charged R22, CFC Free R407C, R410A,R404A,R134A for option.
¨ 380V-415V/50HZ 3PH for standard design. Different design on customers' request.
| Model |
KDCS
-060
|
||
| cooling capcity | kW | 188.0 | |
| 50HZ | |||
| kcal/h | 161,680 | ||
| 50HZ | |||
| Iput power | kW | 58.0 | |
| Chilled fluid flow | m3/h | 32.0 | |
| Power | 3PH-380V-50H（200V/220V/415V 50HZ/60HZ） | ||
| Compressor | Type | Semi-Hermetic screw type | |
| Start-up mode | Sequential start | ||
| Power(kW) | 53.6 | ||
| Refrigerant | Type | R-22(R407c/R134a) | |
| Control mode | Temperature-sensitive expansion valve | ||
| Filling amount(kg) | 31.0 | ||
| Evaporator | Type | Shell and Tube | |
| Pipe | B | PT 3" | |
| Condenser | Type | High efficient finned copper tube | |
| Cooling fan | Type | Low noise axial flow(Low noise outer rotor fan) | |
| Air wolume(CMM) | 940 | ||
| Power(kW) | 1.1x4 | ||
| Protective device | Compressor overheating,over current,high and low pressure,over temperature,flow switch,phase sequence,phase-missing,exhaust overheating,anti-freezing. | ||
| Dimension | L | mm | 2560 |
| W | mm | 2300 | |
| H | mm | 1900 | |
| Weight | kg | 1850 | |
Q1. Do you have any MOQ limit for air conditioner?
A: Low MOQ, 1pc for sample checking is available.
Q2. How do you ship the goods and how long does it take to arrive?
A: We usually ship bu DHL, UPS, Fedex or TNT. It usually takes 10 days to arrive. Airline and sea shipping are also available.
Q3. Do you offer guarantee for the products?
A: Yeas, we offer 12 months warranty to our products.
Q4: Where the application?
A: Our products have been widely used in many industries, like machine tool, data processing, telecommunications, financial, metallurgy, medical, building material, cars and war industry and etc.
Q5: Are your products can be customized?
A: Yes. Also welcomed to customized non-standard products, can achieve to -180 degree Celsius.
Q6: Whats your payment term?
A: International term-30% deposit for production, 70% balance before shipment.
