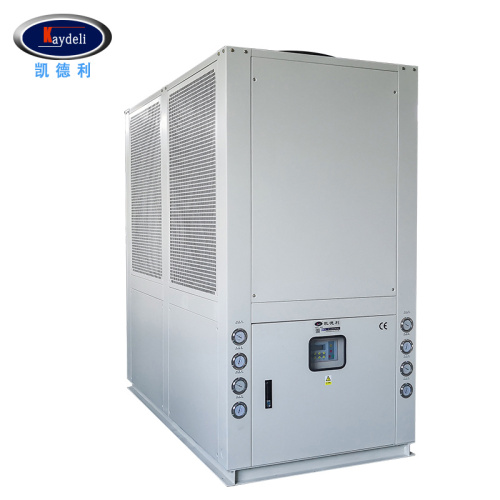

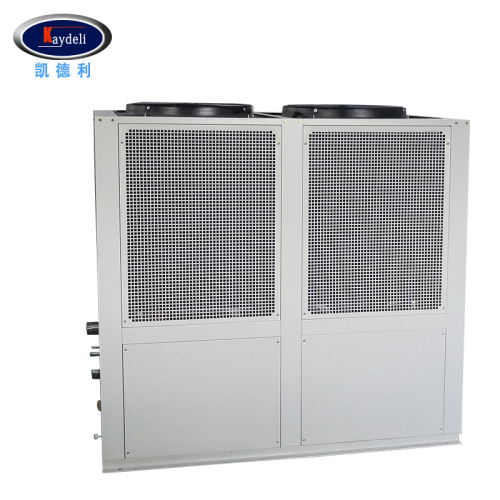

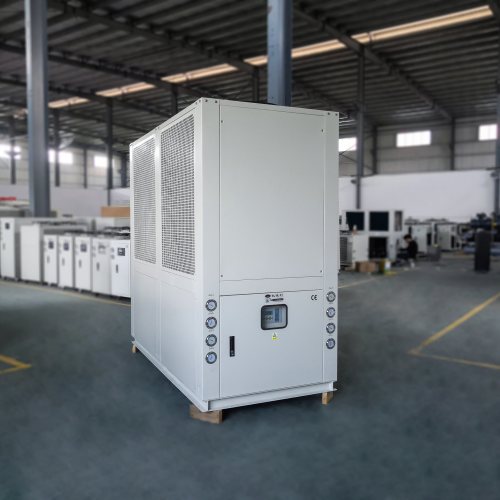

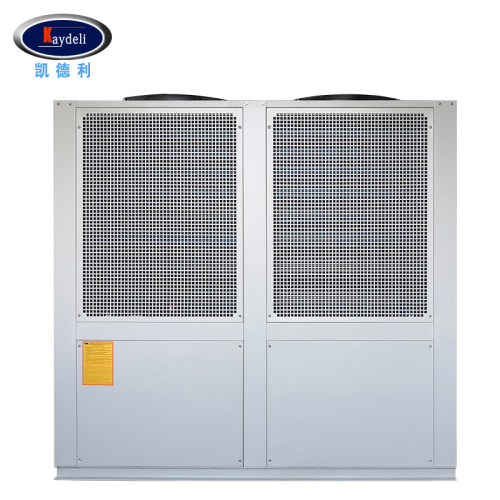

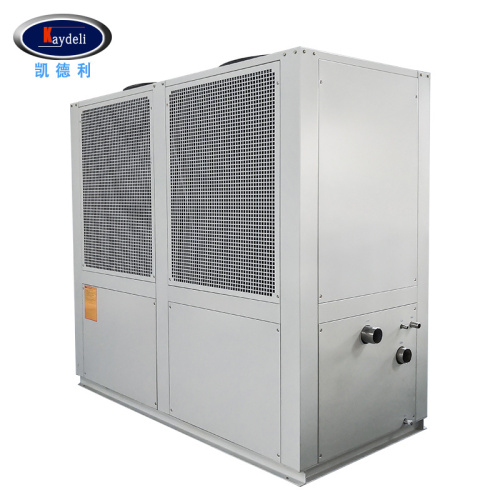

Laboratory Equipment Screw Air Cooled Industrial Chiller
- Payment Type:
- L/C, T/T
- Incoterm:
- FOB, CFR, CIF, EXW, FCA
- Min. Order:
- 1 Set/Sets
- Min. Order:
- 1 Set/Sets
- Delivery Time:
- 15 Days
- Transportation:
- Ocean, Land, Air, by clients
- Port:
- Shenzhen, Yantian, Shekou
Your message must be between 20 to 2000 characters
Contact Now| Productivity: | 300sets/Month |
|---|---|
| Supply Ability: | 300sets/Month |
| Payment Type: | L/C,T/T |
| Incoterm: | FOB,CFR,CIF,EXW,FCA |
| Transportation: | Ocean,Land,Air,by clients |
| Port: | Shenzhen,Yantian,Shekou |
Design features:
¨ opted world famous brand compressors and high efficiency condenser and evaporator, ensure high cooling efficiency, low energy consumption, low noise and long service life.
¨ Chilled water temperature range 5℃ to 35℃.
¨ R22 charged, CFC free type R407C, R410A, R404A, R134A for option, high cooling efficiency.
¨ Over sized evaporator and condenser ensure the chiller unit running under 45C high ambient temperature.
¨ Microcomputer control system offering accurate temperature stability within ±1℃.
¨ Low noise and big volume air blower.
¨ Standard equipped Iron pump, stainless steel or high lift pump for option.
¨ Multi-protection devices ensure the chiller unit running safely.
¨ The innovative evaporator-in-tank configuration ensures a stey water temperature offered, as the evaporator also cools the tank itself, reduces ambient heat gain, and increases the efficiency.
¨ KWB water cooled industrial chiller opted shell and tube condenser, features speed heat dissipation and high cooling efficiency, it is good to be used in High ambient temperature area with abundant water.
¨ KC air cooled industrial chiller opted aluminum fin/copper tube type condenser, easy for cleaning and installation.
¨ Power supply: 1PH 220V/50HZ-----1/2HP to 2HP
3PH 380V/415V 50HZ-----3HP to 60HP
| Model |
KC -050 |
||
| cooling capcity | kW | 139.3 | |
| 50HZ/60HZ | 167.2 | ||
| kcal/h | 119,790 | ||
| 50HZ/60HZ | 143748 | ||
| Iput power | kW | 43.3 | |
| Chilled fluid flow | m3/h | 26.5 | |
| 31.8 | |||
| Power | 3PH-380V-50HZ（200V/220V/415V 50HZ/60HZ） | ||
| Compressor | Type | Hermetic scroll type (Piston) | |
| Start-up mode | Sequential start | ||
| Power(kW) | 37.5 | ||
| Refrigerant | Type | R-22(R407c/R134a) | |
| Control mode | Expansion valve | ||
| Filling amount(kg) | 33.6 | ||
| Evaporator | Type | Shell and Tube | |
| Pipe | B | PT 3" | |
| Condenser | Type | High efficient finned copper tube | |
| Surface area / row(M2) | 7.54/3R | ||
| Cooling fan | Type | Low noise axial flow(Low noise outer rotor fan) | |
| Air wolume(CMM) | 880 | ||
| Power(kW) | 0.75x4 | ||
| Tank volume | L | 280 | |
| Water pump power | kW | 3 | |
| Protective device | Compressor overheating,over current,high and low pressure,over temperature,flow switch,phase sequence,phase-missing,exhaust overheating,anti-freezing. | ||
| Dimension | L | mm | 2450 |
| W | mm | 2300 | |
| H | mm | 1900 | |
| Weight | kg | 1480 | |
FAQ:
Q1. Do you have any MOQ limit for air conditioner?
A: Low MOQ, 1pc for sample checking is available.
Q2. How do you ship the goods and how long does it take to arrive?
A: We usually ship bu DHL, UPS, Fedex or TNT. It usually takes 10 days to arrive. Airline and sea shipping are also available.
Q3. Do you offer guarantee for the products?
A: Yeas, we offer 12 months warranty to our products.
Q4: Where the application?
A: Our products have been widely used in many industries, like machine tool, data processing, telecommunications, financial, metallurgy, medical, building material, cars and war industry and etc.
Q5: Are your products can be customized?
A: Yes. Also welcomed to customized non-standard products, can achieve to -180 degree Celsius.
Q6: Whats your payment term?
A: International term-30% deposit for production, 70% balance before ship
