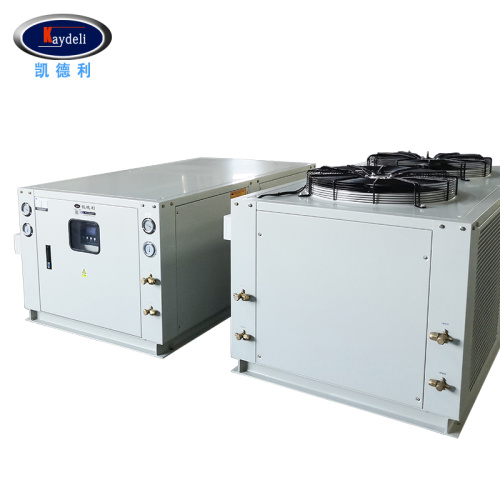

20HP split water industrial chiller system
-
USD82001-14 Set/Sets
-
USD815015-29 Set/Sets
-
USD8050≥30 Set/Sets
- Payment Type:
- L/C, T/T, Paypal
- Incoterm:
- FOB, CFR, CIF, EXW
- Min. Order:
- 1 Set/Sets
- Min. Order:
- 1 Set/Sets
- Delivery Time:
- 5 Days
- Transportation:
- Ocean, Land, Air, on discussion
- Port:
- Shenzhen, Shenzhen, Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | china |
|---|---|
| Productivity: | 500sets/month |
| Supply Ability: | 500sets/month |
| Payment Type: | L/C,T/T,Paypal |
| Incoterm: | FOB,CFR,CIF,EXW |
| Certificate: | ISO9001 |
| HS Code: | 8418692090 |
| Transportation: | Ocean,Land,Air,on discussion |
| Port: | Shenzhen,Shenzhen,Shenzhen |
The air-cooled chiller is one of the models of the chiller. The air cooled chiller make the water of normal temperature is cooled to a certain temperature by the compressor to strengthen the cooling mold or the machine. As a single machine, the heat sink is a built-in fan, mainly having three mutual connected system: refrigerant circulation system, water circulation system, electrical automatic control system.
Kaydeli air-cooled scroll chiller absorbs advanced and modern technologies at home and abroad with high quality and elegant appearance. It has good performance, low noise, and is adjusted according to load, operate alternately automatically and extend the life-span of the chiller, we procure imported original brand- name equipment as raw material, intelligent PLC, PC computer controlling system help us to supervise and remote control the chiller, operation is simple, it is adjustable in time, low malfunction rate and high safety, which has a huge wide application, like plastic machinery, electroplating, plasma spraying, plant, hotel, chemical, hospital and other industrial fields.
Model
KC-020DB
cooling capcity
kW
56.5
50HZ/60HZ
67.8
kcal/h
48,590
50HZ/60HZ
58308
Iput power
kW
17.6
Chilled fluid flow
m3/h
10.8
12.96
Power
3PH-380V-50HZ(200V/220V/415V
50HZ/60HZ)
Compressor
Type
Hermetic scroll type (Piston)
Start-up mode
Sequential start
Power(kW)
15
Refrigerant
Type
R-22(R407c/R134a)
Control mode
Expansion valve
Filling amount(kg)
13.3
Evaporator
Type
Shell and Tube(Water tank with coil)
Pipe
B
PT 2"
Condenser
Type
High efficient finned copper tube
Surface
area / row(M2)
3.06/3R
Cooling fan
Type
Low noise axial flow(Low noise outer rotor
fan)
Air wolume(CMM)
390
Power(kW)
0.55x2
* Tank volume
L
180
*Water pump power
kW
1.5
Protective device
Compressor overheating,over current,high and
low pressure,over temperature,flow switch,phase
sequence,phase-missing,exhaust overheating,anti-freezing.
Dimension
L
mm
1900
W
mm
990
H
mm
860
Dimension
L
mm
1900
W
mm
990
H
mm
800
Weight
kg
760
FAQ:
Q1. Do you have any MOQ limit for air conditioner?
A: Low MOQ, 1pc for sample checking is available.
Q2. How do you ship the goods and how long does it take to arrive?
A: We usually ship bu DHL, UPS, Fedex or TNT. It usually takes 10 days to arrive. Airline and sea shipping are also available.
Q3. Do you offer guarantee for the products?
A: Yeas, we offer 12 months warranty to our products.
Q4: Where the application?
A: Our products have been widely used in many industries, like machine tool, data processing, telecommunications, financial, metallurgy, medical, building material, cars and war industry and etc.
Q5: Are your products can be customized?
A: Yes. Also welcomed to customized non-standard products, can achieve to -180 degree Celsius.
Q6: Whats your payment term?
A: International term-30% deposit for production, 70% balance before shipment.
