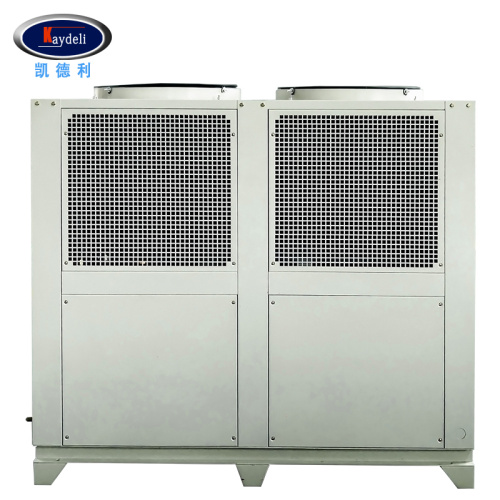

25 HP Air Cooled heat pump Chiller
- Payment Type:
- L/C, T/T
- Incoterm:
- FOB, CFR, CIF, EXW
- Min. Order:
- 1 Set/Sets
- Min. Order:
- 1 Set/Sets
- Delivery Time:
- 15 Days
- Transportation:
- Ocean, Land, Air
- Port:
- Shenzhen, Yantian, Shekou
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 500sets/Month |
| Supply Ability: | 500sets/Month |
| Payment Type: | L/C,T/T |
| Incoterm: | FOB,CFR,CIF,EXW |
| Certificate: | ISO9001 |
| HS Code: | 8418692090 |
| Transportation: | Ocean,Land,Air |
| Port: | Shenzhen,Yantian,Shekou |
Product introduction:
KC/KWB series industrial chiller is mainly applied in Plastic & Rubber industry; it can accurately control the molding temperature and shorten the molding cycle, increase the product quality and improve the production efficiency. They are also widely used in Metal working, Mechanical & Engineering, Chemical & Pharmaceutical, Food & Beverage, Laser, Electronics industry, Textile, Electroplate, Semi-conductor testing, Water jet, Vacuum coating, Construction and Military,
Design features:
¨ opted world famous brand compressors and high efficiency condenser and evaporator, ensure high cooling efficiency, low energy consumption, low noise and long service life.
¨ Chilled water temperature range 5℃ to 35℃.
¨ R22 charged, CFC free type R407C, R410A, R404A, R134A for option, high cooling efficiency.
¨ Over sized evaporator and condenser ensure the chiller unit running under 45C high ambient temperature.
¨ Microcomputer control system offering accurate temperature stability within ±1℃.
¨ Low noise and big volume air blower.
¨ Standard equipped Iron pump, stainless steel or high lift pump for option.
¨ Multi-protection devices ensure the chiller unit running safely.
¨ The innovative evaporator-in-tank configuration ensures a stey water temperature offered, as the evaporator also cools the tank itself, reduces ambient heat gain, and increases the efficiency.
¨ KWB water cooled industrial chiller opted shell and tube condenser, features speed heat dissipation and high cooling efficiency, it is good to be used in High ambient temperature area with abundant water.
¨ KC air cooled industrial chiller opted aluminum fin/copper tube type condenser, easy for cleaning and installation.
¨ Power supply: 1PH 220V/50HZ-----1/2HP to 2HP
3PH 380V/415V 50HZ-----3HP to 60HP
Product specification:
|
Model |
KC-025DA |
||
|
Cooling capacity |
kW |
65.2 |
|
|
|
kcal/h |
56,070 |
|
|
Heating capacity |
kW |
77.5 |
|
|
|
kcal/h |
66,750 |
|
|
Input power |
kW |
26.8 |
|
|
Nominal Chilled fluid flow |
L/Min |
160-200 |
|
|
|
|
|
|
|
Power supply voltage |
3Phase 380-415V 50HZ |
||
|
Compressor |
Number & Type |
2 sets Hermetic scroll type (Piston) |
|
|
|
Inlet/Outlet Pipe |
B |
DN 50-60 |
|
|
Start-up mode |
Sequential start |
|
|
|
Power(kW) |
9.4*2 |
|
|
Refrigerant |
Type |
R410a |
|
|
|
Control mode |
Expansion valve |
|
|
|
Filling amount(kg) |
13.3 |
|
|
Water side heat exchanger |
Type |
Shell and Tube |
|
|
|
Surface area / row(M2) |
PT 2"-1/2" |
|
|
Air Heat exchanger |
Type |
Internally Threaded Copper Tube Fin Type |
|
|
|
Surface area / row(M2) |
3.08/3R |
|
|
Axial fan |
Type |
Low noise axial flow(Low noise outer rotor fan) |
|
|
|
Air volume(CMM) |
440 |
|
|
|
Power(kW) |
0.75x2 |
|
|
Protective device |
anti-frost protection, high/low-pressure switch/protection, over-load protection, water-flow switch/protection, power phases sequence protection, soluble plug / safety valve, coil overheat protection, temperature automatic switch protection |
||
|
Dimension |
L |
mm |
1860 |
|
|
W |
mm |
1220 |
|
|
H |
mm |
1770 |
|
Weight |
kg |
600 |
|
