Thinwall Food Dish Mold

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

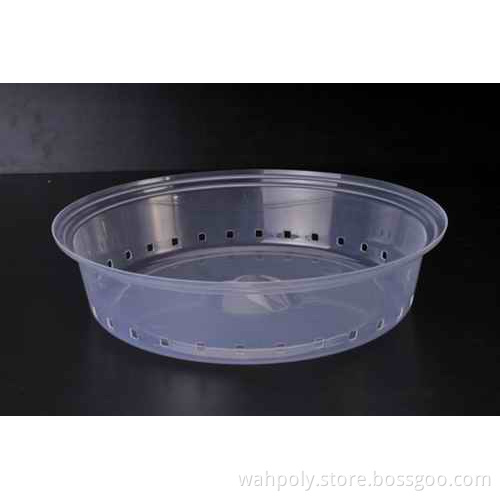

Product Description	Part Name	Food Dish
Product Description	Part Material	PP
Mold Description	Cavity Material	738H, solid cavity without Insert.
	Core Insert Material	738H
	Mould Cavities	1
	Mold Stardard	Hasco, air valve on both cavity and core side.
	Lead time	5 weeks
	Mould Life Time	500K
	Runner Description	1 Hasco Hot Nozzle
	Ejection System	Guided ejection,Stripper Plate.
	Export Mold/In House Mold	Export Mold to U.K
	Injection molding machine	300T

Wahpoly is a mold making company in Shenzhen, China, specialize in the development, design and construction of plastic injection molds in the field of household appliances, consumer products,automotive, medical class products and communication products

We produce plastic molding products in large quantity every year with nearly 80 advanced injection machines, each machine equipped with Robot and Convey line for fully automatic injection operation, it greatly improved the efficiency and reduced the costs, so the injection molding price can be more competitive.

	Main Mold-Making Equipment List
Item	Equipment Name	Brand	Specification	Qty	Origin
1	CNC Machining center	PIONEER, YONGJIN	600500250 to	7	Taiwan
1	CNC Machining center	PIONEER, YONGJIN	1300700700	7	Taiwan
2	Mirror Grade EDM Machine	SODICK	300200220	1	Japan
3	EDM Machine	TOPEDM	450350200	6	Taiwan
4	Wire Cut Machine(Low Speed)	SODICK	350250250	2	Japan
5	Wire Cut Machine(High Speed)	JICHENG	500400320	4	China
6	Milling Machine	TOPONE	900395340	9	Taiwan
7	Grinding Machine	KENT	480*180	6	Taiwan
8	Lathe Machine	GUANG ZHOU	C6132A	1	China
9	Precision Water Mill	KENT	900*480	1	Taiwan
10	Radial Drilling	SHEN YANG	Z3050	1	China
11	Sawing machine	SHAN TOU	￠120	1	China
12	Auto Tapping	M24	M24	1	China


	Injection Molding Equipment List
Item	Machine	Brand	Size	Qty	Origin
1	Molding Machine	HAITIAN	90T	4	China
2	Molding Machine	CHENHSONG	100T	2	China
3	Molding Machine	APOLLO,HAITIAN	120T	12	China
4	Molding Machine	APOLLO,HAITIAN	160T	12	China
5	Molding Machine	LAUNCH	200T	17	Taiwan
6	Molding Machine	APOLLO	250T	2	China
7	Molding Machine	APOLLO	280T	4	China
8	Molding Machine	APOLLO	320T	4	China
9	Molding Machine	HAITIAN	470T	3	China
10	Molding Machine	HAITIAN	600T	1	China
11	Molding Machine	HAITIAN	800T	1	China
12	Molding Machine	HAITIAN	1000T	1	China
13	Molding Machine	HAITIAN	1350T	1	China
14	Vertical Molding Machine	YUHDAK	25 to 260T	7	Taiwan
NOTE	Many injection molding machines are equipped with Robot Arm
NOTE	for rapid and precise removal of products and sprue.
	Main Measuring Instrument List
Item	Instrument Name	Brand	Specification	Qty	Origin
1	CMM	TESA	micro-hite 3D	1	Switzerland
2	50X Profile Projector	EASSON	EP-1 2010	1	China
3	2D Height Gauge	TRIMOS	MT600MO	1	Switzerland
4	Measuring Microscope	SOIF	15JA	1	China
5	Rockwell Hardness Tester	SOIF	ED-15A1	1	China
